MAXI800DAGN830LSR0450 / 0637956
Product Description
Ceiling light from the MAXI product family. Optical control via Diffuser, beam pattern symmetric, extremely wide beam, light emission omnidirectional. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4510 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, Green, protection rating IP20. Lampshade made of fire-retardant fabric. Colour: Green. The product fulfils the fire protection requirements of class B in accordance with EN 13501-1. The basic series can be surface-mounted directly on ceilings and walls. For mounting as a pendant luminaire, in track or on the LINIA continuous lighting system, accessory kits are available to be ordered separately. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637956 |
| GTIN | 4029299917512 |
General
| Product category | Ceiling light |
| Range of application | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 264 mm |
| Dimension D | 800 mm |
| Net weight | 5.100 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Power rail | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | Green |
| Farbe_Kurz | gn |
| Protection class | IP20 |
| Permissible ambient temperature | -25–48 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Fire-retardant fabric (B) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light guide | Diffuser |
| Light output | omnidirectional |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 4510 lm |
| Luminaire efficiency | 103 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 71.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209496 -
MAXI800-ZSP-VLM 2M
|
Wire pendant for MAXI800 for continuous rooflight VL, 2 m |
|
|
0209495 -
MAXI800-ZSP-STS 2M
|
Wire pendant for MAXI800 for conductor rail, 2 m |
|
|
0209494 -
MAXI800-ZSP-DB 2M
|
Wire pendant for MAXI800 for ceiling canopy, 2 m |
|
|
Ceiling light from the MAXI product family. Optical control via Diffuser, beam pattern symmetric, extremely wide beam, light emission omnidirectional. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4510 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, Green, protection rating IP20. Lampshade made of fire-retardant fabric. Colour: Green. The product fulfils the fire protection requirements of class B in accordance with EN 13501-1. The basic series can be surface-mounted directly on ceilings and walls. For mounting as a pendant luminaire, in track or on the LINIA continuous lighting system, accessory kits are available to be ordered separately. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637956 |
| GTIN | 4029299917512 |
General
| Product category | Ceiling light |
| Range of application | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 264 mm |
| Dimension D | 800 mm |
| Net weight | 5.100 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Power rail | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | Green |
| Farbe_Kurz | gn |
| Protection class | IP20 |
| Permissible ambient temperature | -25–48 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Fire-retardant fabric (B) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light guide | Diffuser |
| Light output | omnidirectional |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 4510 lm |
| Luminaire efficiency | 103 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 71.000 h |
Download Center

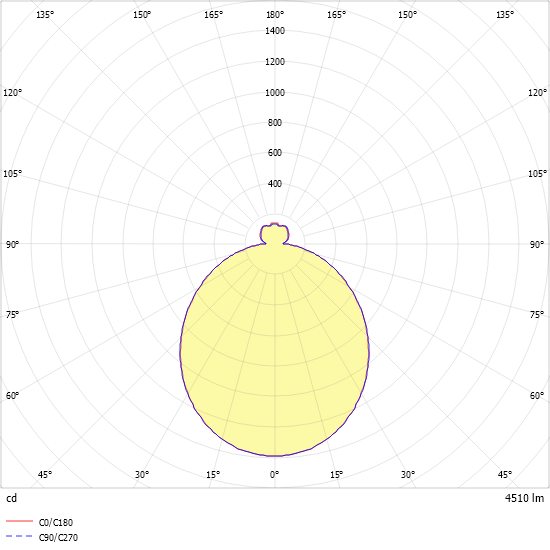

Light distribution curve
