M200-E160 DAWS830S0750-US / 6069014//425
![](/cmi24web/cmi24web_exporte/ridi/assets/2021_07_RIDI_M200-E130%2BE160_01.png)
![](/cmi24web/cmi24web_exporte/ridi/assets/2021_07_RIDI_M200-E130%2BE160_01.png)
Product Description
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 7220 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 6069014//425 |
GTIN | 4029299070248 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1630 mm |
Dimension B | 224 mm |
Dimension H | 79 mm |
Dimension A1 | 1200 mm |
Dimension A2 | 163.5 mm |
Dimension BE | 210 mm |
Dimension K | 30 mm |
Dimension K1 | 770 mm |
Dimension LE | 1620 mm |
Net weight | 11.900 kg |
![Dimension drawing](/cmi24web/cmi24web_exporte/ridi/assets/240905_Einbauma%C3%9Fe_rechteckig.png)
Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 4 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Protection class | IP65 |
Impact resistance | IK11+ 75 J |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | PC structured |
Electrical version
Type of control | DALI-2 |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 58.0 W |
Protection class | II |
Overvoltage protection | 10 kV |
Lighting technology
Light guide | Cover longitudinal prismatic |
Light output | direct |
Light distribution | symmetric |
UGR class | ≤ 25 |
Rated luminous flux | 7220 lm |
Luminaire efficiency | 124 lm/W |
![UGR table](/cmi24web/cmi24web_exporte/ridi/assets/ugr-6069014--425--en_GB-06-2024.png)
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
![Lvk](/cmi24web/cmi24web_exporte/ridi/assets/LVK-6069014--425--06-2024.png)
![Protection rating IP Protection rating IP](/cmi24web/cmi24web_exporte/ridi/assets/Picto_IP65.png)
![Impact resistance level Impact resistance level](/cmi24web/cmi24web_exporte/ridi/assets/Picto_IK11%2B75J.png)
![Protection class II Protection class II](/cmi24web/cmi24web_exporte/ridi/assets/Picto_Pruefz_Schutzklasse2.png)
![Direct light emission Direct light emission](/cmi24web/cmi24web_exporte/ridi/assets/Picto_Leuchtr_SQL_direkt_.png)
![](/cmi24web/cmi24web_exporte/ridi/assets/Picto_Surge%20Protection.png)
Approvals:
![](/cmi24web/cmi24web_exporte/ridi/assets/2021_07_RIDI_M200-E130%2BE160_01.png)
![](/cmi24web/cmi24web_exporte/ridi/assets/2021_07_RIDI_M200-E130%2BE160_01.png)
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 7220 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 6069014//425 |
GTIN | 4029299070248 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1630 mm |
Dimension B | 224 mm |
Dimension H | 79 mm |
Dimension A1 | 1200 mm |
Dimension A2 | 163.5 mm |
Dimension BE | 210 mm |
Dimension K | 30 mm |
Dimension K1 | 770 mm |
Dimension LE | 1620 mm |
Net weight | 11.900 kg |
![value](/cmi24web/cmi24web_exporte/ridi/assets/240905_Einbauma%C3%9Fe_rechteckig.png)
Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 4 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Protection class | IP65 |
Impact resistance | IK11+ 75 J |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | PC structured |
Electrical version
Type of control | DALI-2 |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 58.0 W |
Protection class | II |
Overvoltage protection | 10 kV |
Lighting technology
Light guide | Cover longitudinal prismatic |
Light output | direct |
Light distribution | symmetric |
UGR class | ≤ 25 |
Rated luminous flux | 7220 lm |
Luminaire efficiency | 124 lm/W |
![value](/cmi24web/cmi24web_exporte/ridi/assets/ugr-6069014--425--en_GB-06-2024.png)
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

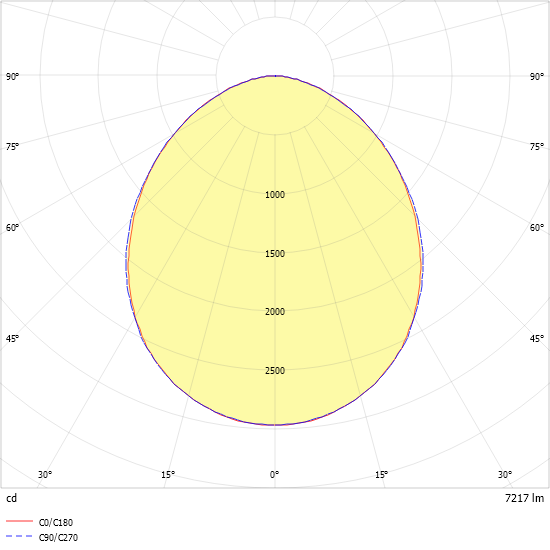

Light distribution curve
