M200-A130 NDWS830ESGS0450-RF / 0627614
Product Description
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4340 lm in light colour 830, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0627614 |
GTIN | 4029299556186 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1300 mm |
Dimension B | 200 mm |
Dimension H | 70 mm |
Dimension A1 | 1200 mm |
Dimension A2 | |
Dimension K | 30 mm |
Dimension K1 | 615 mm |
Net weight | 10.600 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 2 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP65 |
Impact resistance | IK08 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–66 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | Glass (ESG) |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 35.0 W |
Protection class | II |
Lighting technology
Light guide | Cover satin |
Light output | direct |
Light distribution | symmetric |
UGR class | ≤ 25 |
Rated luminous flux | 4340 lm |
Luminaire efficiency | 124 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209345 - M200-TP 100-WS | Channel, 1.00 m, white |
|
|
0209346 - M200-TP 138-WS | Channel, 1.38 m, white |
|
|
0209347 - M200-TP 490-WS | Channel, 4.90 m, white |
|
|
0209341 - M200-BLIND 069-WS | Dummy cover for channel, 0.69 m, white |
|
|
0209342 - M200-BLIND 100-WS | Dummy cover for channel, 1.00 m, white |
|
|
0209343 - M200-BLIND 130-WS | Dummy cover for channel, 1.30 m, white |
|
|
0209344 - M200-BLIND 160-WS | Dummy cover for channel, 1.60 m, white |
|
|
0209348 - M200-TPED-WS | End cap for channel, white, 1 unit |
|
|
0209349 - M200-ZRP-PRH | Hanger for tube pendant M200,suit. f. tube 1xM16 or 2xM6, 1unit |
|
|
0209352 - M200-PMH-TP-WS | Pendant multihanger, channel, white, 1 unit |
|
|
0209330 - ZRP-PR16X3-060WS | Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
0209329 - ZRP-PR16X3-100WS | Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4340 lm in light colour 830, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0627614 |
GTIN | 4029299556186 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1300 mm |
Dimension B | 200 mm |
Dimension H | 70 mm |
Dimension A1 | 1200 mm |
Dimension K | 30 mm |
Dimension K1 | 615 mm |
Net weight | 10.600 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 2 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP65 |
Impact resistance | IK08 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–66 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | Glass (ESG) |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 35.0 W |
Protection class | II |
Lighting technology
Light guide | Cover satin |
Light output | direct |
Light distribution | symmetric |
UGR class | ≤ 25 |
Rated luminous flux | 4340 lm |
Luminaire efficiency | 124 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

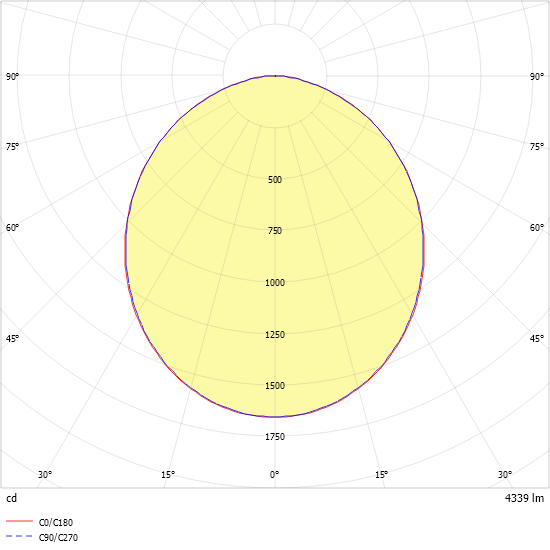

Light distribution curve
Approvals:
Attributes:
