M125-E130 NDWS830S0350-RF / 0828032
Product Description
Ceiling light from the M125 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3700 lm in light colour 830, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 75 joules. Built-in installation by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0828032 |
| GTIN | 4029299575620 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1330 mm |
| Dimension B | 149 mm |
| Dimension H | 99 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | 95 mm |
| Dimension BE | 135 mm |
| Dimension K | 30 mm |
| Dimension K1 | 630 mm |
| Dimension LE | 1320 mm |
| Net weight | 2.900 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–57 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover longitudinal prismatic |
| Light output | direct |
| Light distribution | symmetric |
| UGR class | ≤ 25 |
| Rated luminous flux | 3700 lm |
| Luminaire efficiency | 97 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209183 - M125/M200-ZBS E069/130/160 | Mounting 4x spring clips for M125/M200 recessed luminaires |
|
|
Ceiling light from the M125 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3700 lm in light colour 830, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 75 joules. Built-in installation by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0828032 |
| GTIN | 4029299575620 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1330 mm |
| Dimension B | 149 mm |
| Dimension H | 99 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | 95 mm |
| Dimension BE | 135 mm |
| Dimension K | 30 mm |
| Dimension K1 | 630 mm |
| Dimension LE | 1320 mm |
| Net weight | 2.900 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–57 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover longitudinal prismatic |
| Light output | direct |
| Light distribution | symmetric |
| UGR class | ≤ 25 |
| Rated luminous flux | 3700 lm |
| Luminaire efficiency | 97 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

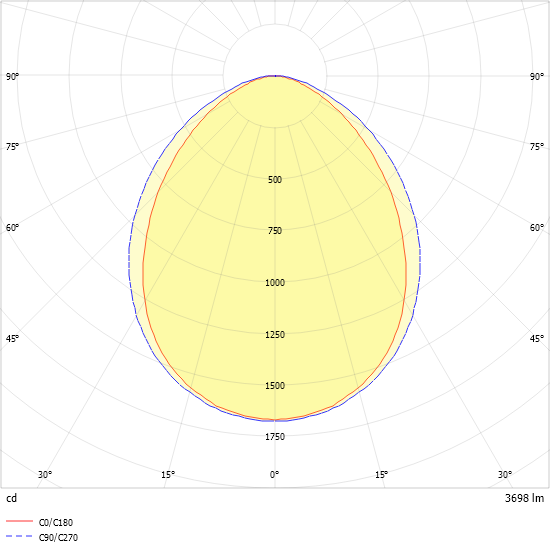

Light distribution curve
