LF-T16-S-R ... SM

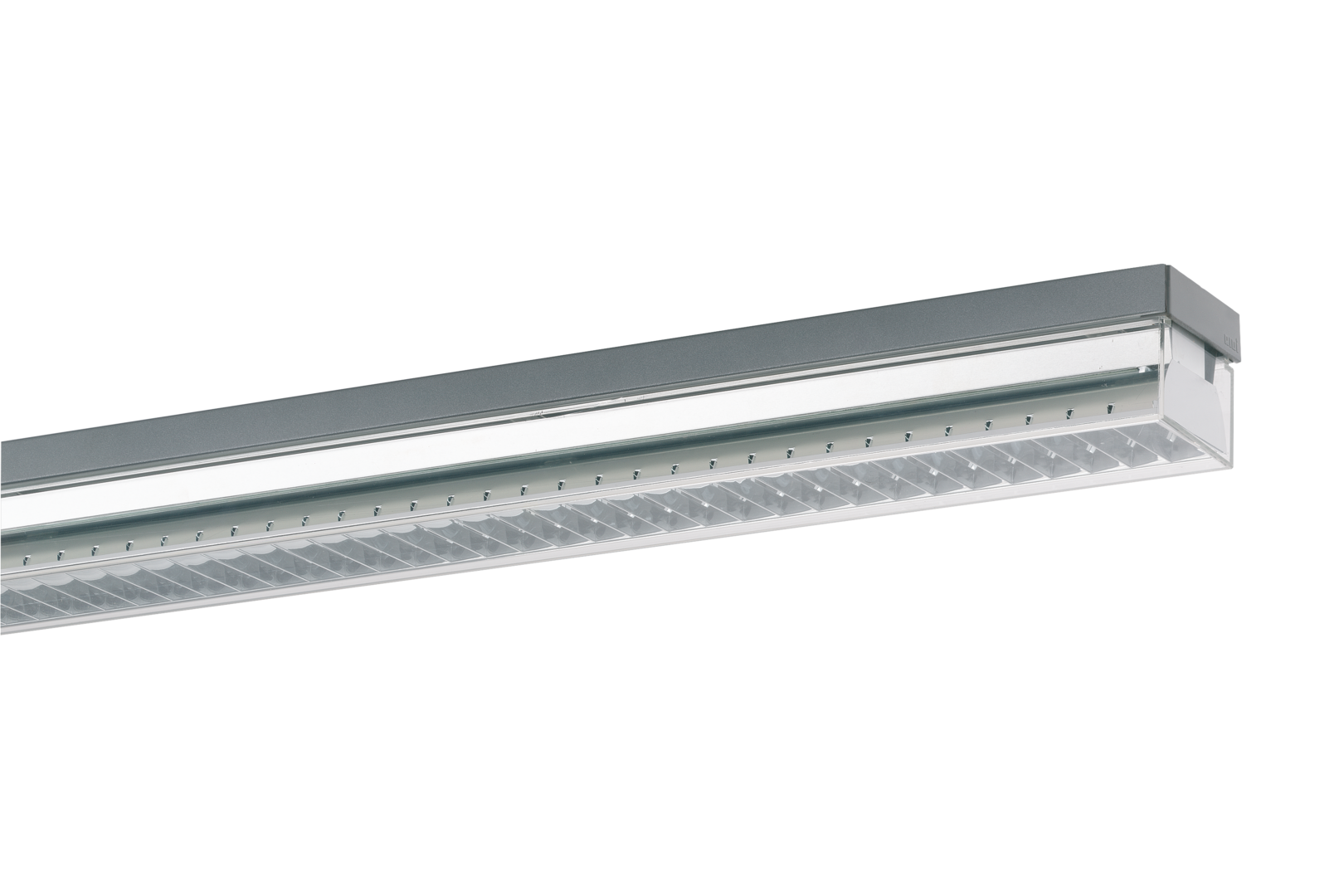

Single luminaire for ceiling or pendant mounting. Luminaire housing made of torsion-resistant profiled steel, white or silver (SI) synthetic resin-coated, with attached plastic end caps. End caps with break-out openings 3x Ø 10 mm and 1x 10 mm x 20 mm for cable entry at the front. Reflector made of steel, coated in white synthetic resin, to increase efficiency and as a cover for the electrical components. Protection type-related circumferential seal between diffuser and luminaire housing. Sealing spacer to seal the fixing opening between the ceiling and luminaire housing. Diffuser fixture toolless thanks to integrated retaining clips in the luminaire housing. For RIDI-TUBE lamps (to be ordered separately).
0460010 - LF-T16-S-R1X055/15DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 1540
Power (W): 15
Efficiency (lm/W): 103
0460010SI - LF-T16-S-R1X055/15DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 1540
Power (W): 15
Efficiency (lm/W): 103
0450010 - LF-T16-S-R1X055/15ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1540
Power (W): 15
Efficiency (lm/W): 103
0450010SI - LF-T16-S-R1X055/15ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1540
Power (W): 15
Efficiency (lm/W): 103
0460020 - LF-T16-S-R1X115/30DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 3570
Power (W): 34
Efficiency (lm/W): 105
0460020SI - LF-T16-S-R1X115/30DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 3570
Power (W): 34
Efficiency (lm/W): 105
0450020 - LF-T16-S-R1X115/30ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3570
Power (W): 34
Efficiency (lm/W): 105
0450020SI - LF-T16-S-R1X115/30ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3570
Power (W): 34
Efficiency (lm/W): 105
0460069 - LF-T16-S-R1X145/45DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 5040
Power (W): 48
Efficiency (lm/W): 105
0460069SI - LF-T16-S-R1X145/45DA-SM
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 5040
Power (W): 48
Efficiency (lm/W): 105
0450069 - LF-T16-S-R1X145/45ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5040
Power (W): 48
Efficiency (lm/W): 105
0450069SI - LF-T16-S-R1X145/45ND-SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5040
Power (W): 48
Efficiency (lm/W): 105
