LENSES-EQ0483NDWS830B0175 / 0827812
Product Description
Ceiling light from the LENSES product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 1700 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Installation in sawn ceiling openings with corresponding fixing kit (accessories) . With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0827812 |
| GTIN | 4029299535891 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 483 mm |
| Dimension B | 483 mm |
| Dimension H | 60 mm |
| Dimension BE | 465 mm |
| Dimension LE | 465 mm |
| Net weight | 3.188 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 485 x 485 |
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK04 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Glare control | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |

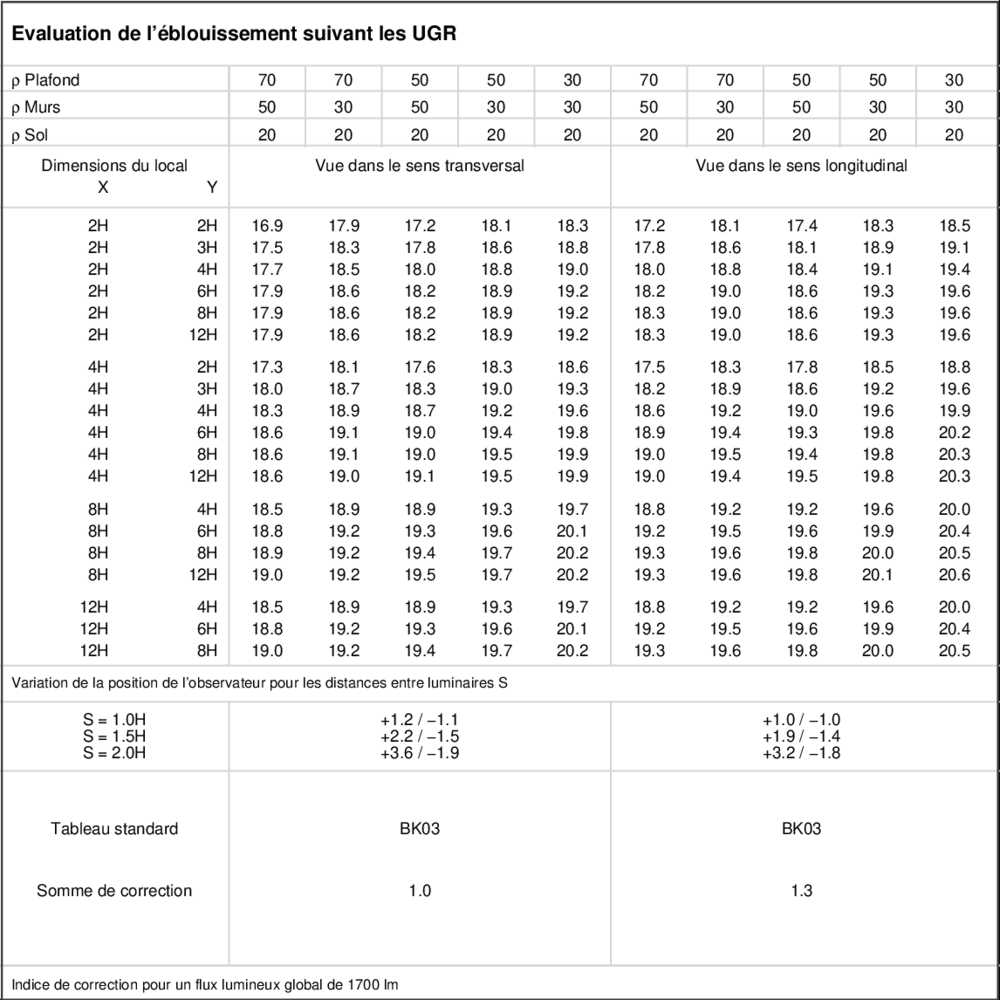

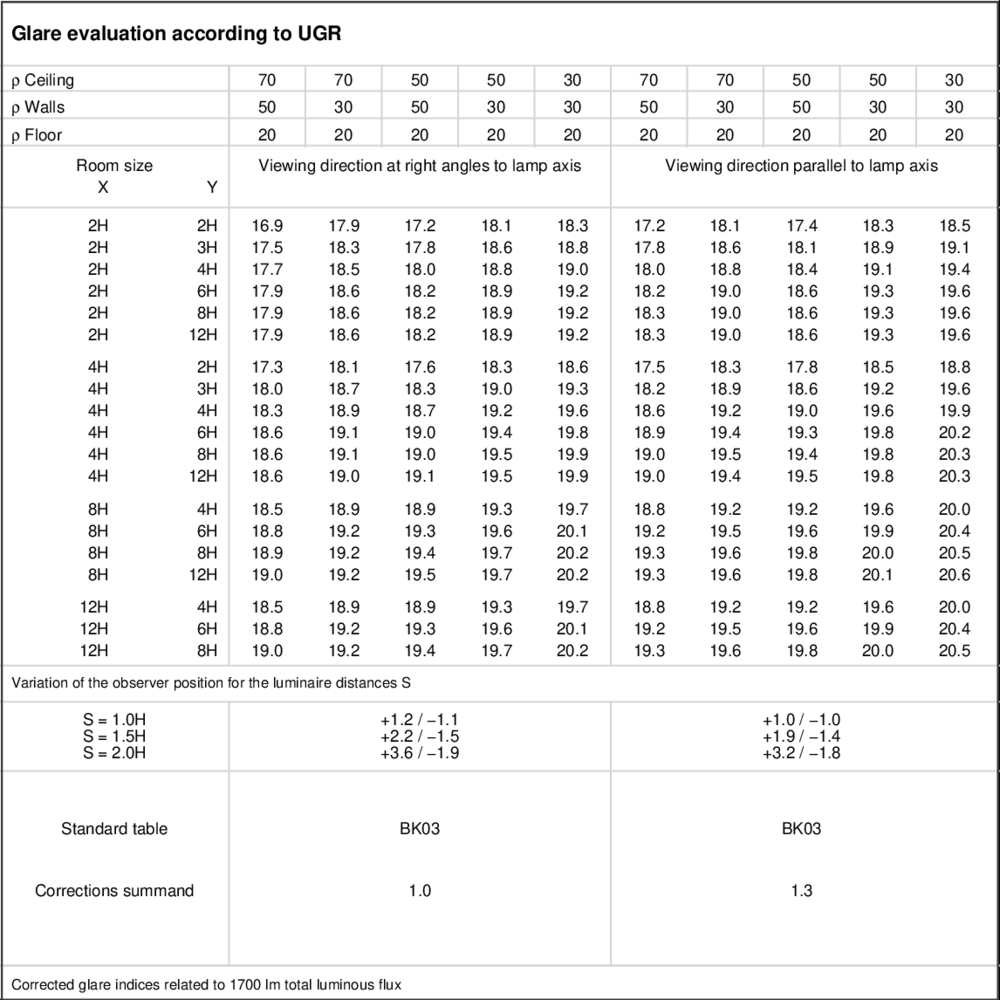

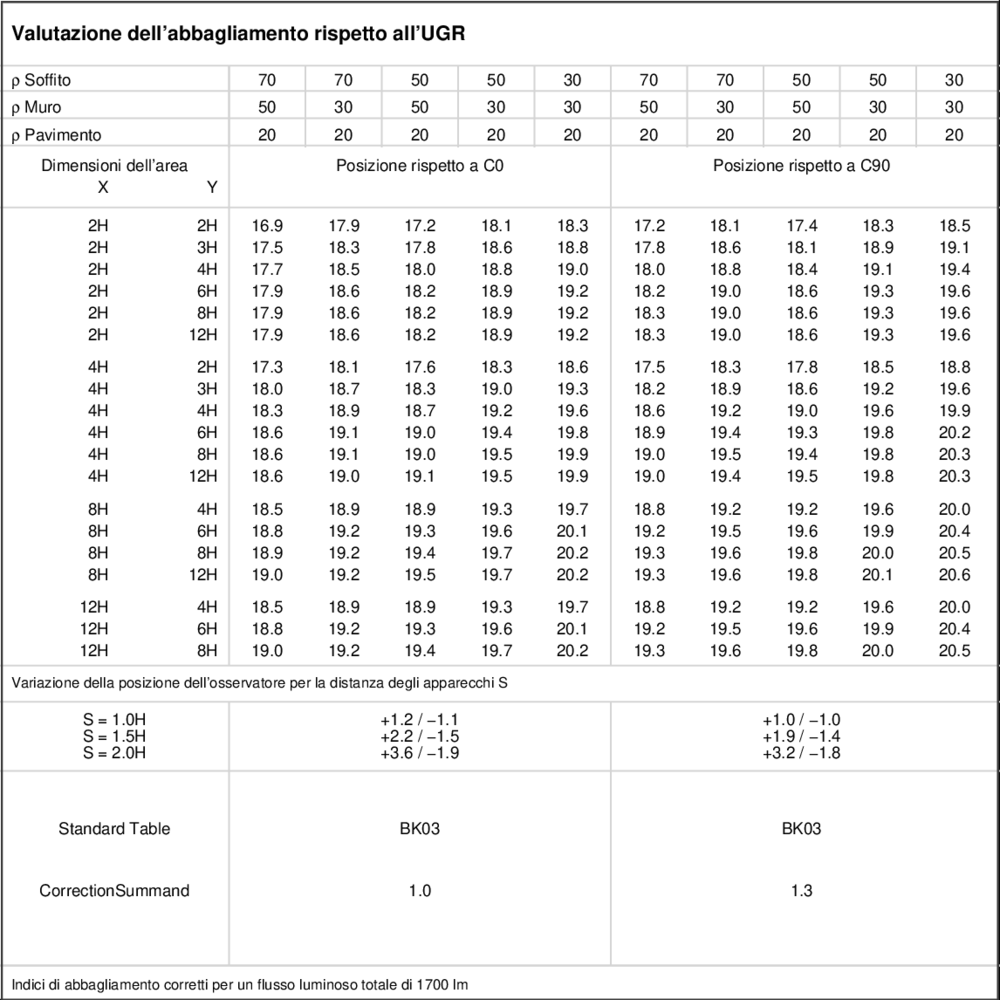

| UGR class | ≤ 19 |
| Rated luminous flux | 1700 lm |
| Luminaire efficiency | 170 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210713 -
ZBS-E UNI 10-713
|
Universal fixing kit, 23 to 55mm clamping thickness |
|
|
0210717 -
ZBS-E UNI 10-717
|
Universal fixing kit, 45 to 80mm clamping thickness |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
