LENSES-EE M600...-SEN
Description

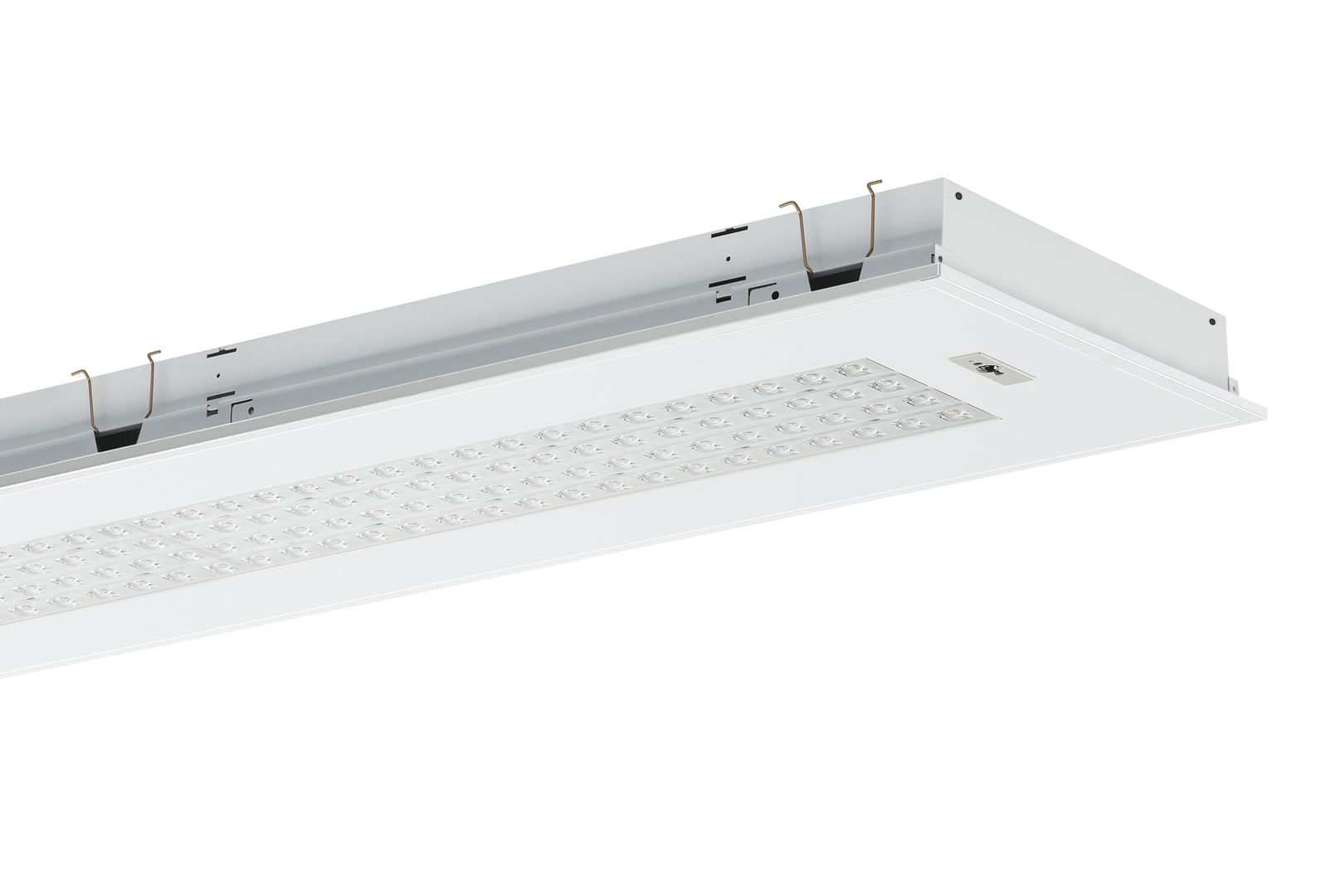

Design: Recessed LED single luminaire for 600 x 600 modular ceilings. Rigid luminaire housing in white steel (similar to RAL 9016) with square 4-row lens arrays for high-efficiency light yield.Diffuser held in the luminaire housing with spring catches, hinges down on both sides. LED modules formed as a flat board. Mid-power LEDs for even illumination and maximum efficiency. LED driver prefitted in luminaire housing.
Design: Recessed LED single luminaire for 600 x 600 modular ceilings. Rigid luminaire housing in white steel (similar to RAL 9016) with square 4-row lens arrays for high-efficiency light yield.Diffuser held in the luminaire housing with spring catches, hinges down on both sides. LED modules formed as a flat board. Mid-power LEDs for even illumination and maximum efficiency. LED driver prefitted in luminaire housing.
0837741 - LENSES-EE1197DAWS830B0350-SEN
Control: DALI-2
Colour temperature: 3000 K
Luminous flux (lm): 3430
Power (W): 21
Efficiency (lm/W): 164
0837733 - LENSES-EE1197DAWS840B0350-SEN
Control: DALI-2
Colour temperature: 4000 K
Luminous flux (lm): 3570
Power (W): 21
Efficiency (lm/W): 170
0837742 - LENSES-EE1497DAWS830B0500-SEN
Control: DALI-2
Colour temperature: 3000 K
Luminous flux (lm): 4950
Power (W): 31
Efficiency (lm/W): 160
0837734 - LENSES-EE1497DAWS840B0500-SEN
Control: DALI-2
Colour temperature: 4000 K
Luminous flux (lm): 5160
Power (W): 31
Efficiency (lm/W): 167
2. Ceilings with concealed T-bars and symmetric mineral fibre and plasterboard tiles
3. Ceilings with concealed T-bars and symmetric metal tiles
4. Ceilings with exposed T-bars and lay-in ledged or grooved ceiling boards
5. Ceilings with concealed support rails and asymmetric mineral fibre board
6. Continuous trim strip ceilings with mineral fibreboard or metal tile ceilings
7. Metal plank systems Luminaire mounting parallel to the planks
8. Recessed luminaires for sports halls for Wilhelmi-type mineral fibre board ceilings
9. Recessed luminaires for sports halls for metal plank ceilings, modular dimension 100 (75 + 25 or 84 + 16)
4 Articles
| Item number - Designation | Control | Colour temperature | Luminous flux (lm) | Power (W) | Efficiency (lm/W) | Download | Wishlist |
| 0837741 - LENSES-EE1197DAWS830B0350-SEN | DALI-2 | 3000 K | 3430 | 21 | 164 |
|
|
| 0837733 - LENSES-EE1197DAWS840B0350-SEN | DALI-2 | 4000 K | 3570 | 21 | 170 |
|
|
| 0837742 - LENSES-EE1497DAWS830B0500-SEN | DALI-2 | 3000 K | 4950 | 31 | 160 |
|
|
| 0837734 - LENSES-EE1497DAWS840B0500-SEN | DALI-2 | 4000 K | 5160 | 31 | 167 |
|
|
