LENSES-AS M625...-SEN
Description

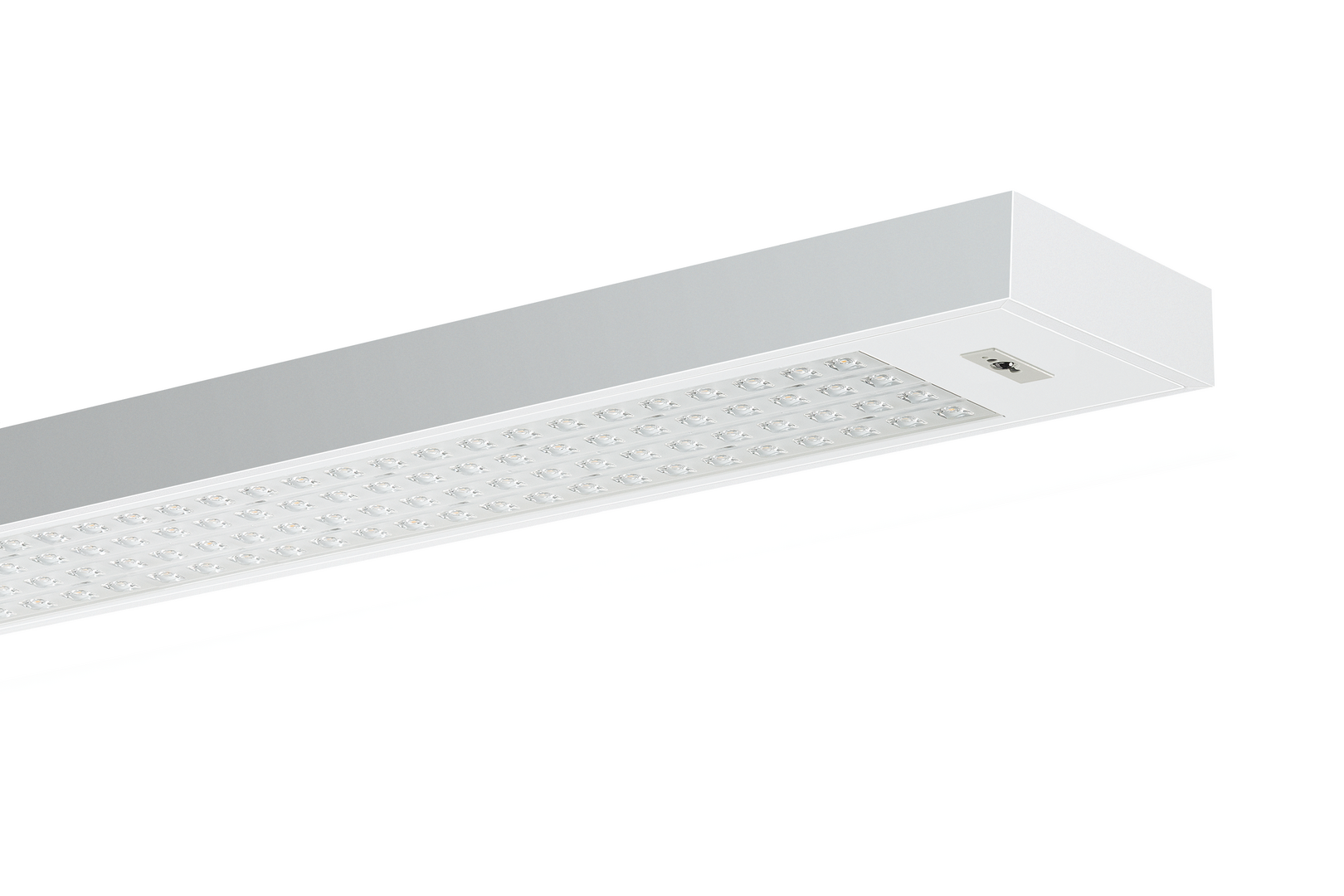

Design: Surface-mounted LED single luminaire. Rigid luminaire housing in white steel (similar to RAL 9016). Four-row lens arrays for maximum efficiency, square design.Diffuser held in the luminaire housing with spring catches, hinges down on both sides. LED modules formed as a flat board. Mid-power LEDs for even illumination and maximum efficiency. LED drivers integrated in the luminaire.
Design: Surface-mounted LED single luminaire. Rigid luminaire housing in white steel (similar to RAL 9016). Four-row lens arrays for maximum efficiency, square design.Diffuser held in the luminaire housing with spring catches, hinges down on both sides. LED modules formed as a flat board. Mid-power LEDs for even illumination and maximum efficiency. LED drivers integrated in the luminaire.
0637546 - LENSES-AS1247DAWS830B0350-SEN
Control: DALI-2
Colour temperature: 3000 K
Luminous flux (lm): 3430
Power (W): 21
Efficiency (lm/W): 164
0637549 - LENSES-AS1247DAWS840B0350-SEN
Control: DALI-2
Colour temperature: 4000 K
Luminous flux (lm): 3570
Power (W): 21
Efficiency (lm/W): 170
0637558 - LENSES-AS1547DAWS830B0500-SEN
Control: DALI-2
Colour temperature: 3000 K
Luminous flux (lm): 4950
Power (W): 31
Efficiency (lm/W): 160
0637561 - LENSES-AS1547DAWS840B0500-SEN
Control: DALI-2
Colour temperature: 4000 K
Luminous flux (lm): 5160
Power (W): 31
Efficiency (lm/W): 167
4 Articles
| Item number - Designation | Control | Colour temperature | Luminous flux (lm) | Power (W) | Efficiency (lm/W) | Download | Wishlist |
| 0637546 - LENSES-AS1247DAWS830B0350-SEN | DALI-2 | 3000 K | 3430 | 21 | 164 |
|
|
| 0637549 - LENSES-AS1247DAWS840B0350-SEN | DALI-2 | 4000 K | 3570 | 21 | 170 |
|
|
| 0637558 - LENSES-AS1547DAWS830B0500-SEN | DALI-2 | 3000 K | 4950 | 31 | 160 |
|
|
| 0637561 - LENSES-AS1547DAWS840B0500-SEN | DALI-2 | 4000 K | 5160 | 31 | 167 |
|
|
