IRIS-A-D 2500-840-DA-O / SPI0000158
Product Description
Ceiling light from the IRIS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 2560 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Plastic, opal, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPI0000158 |
| GTIN | 4029299531749 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 375 mm |
| Dimension D2 | 204 mm |
| Dimension DA | 220 mm |
| Dimension H2 | 94 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Surface treatment of housing | |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 18.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2560 lm |
| Luminaire efficiency | 142 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
SPI0000135 -
IRIS-O FOLIE BERNSTEIN
|
Inserted plastic foil for IRIS-O luminaires, AMBER colour, and BAP foil for stabilisation, also suitable for retrofitting and subsequent mounting. |
|
|
SPI0000138 -
IRIS-O FOLIE FERIA
|
Inserted plastic foil for the IRIS-O luminaire series, light green colour, and BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000137 -
IRIS-O FOLIE NORDISCH BLAU
|
Inserted plastic foil for the IRIS-O luminaire series, in BLUE, as well as BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000136 -
IRIS-O FOLIE PURPLE RAIN
|
Inserted plastic foil for the IRIS-O luminaire series, light PINK colour, as well as BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000139 -
IRIS-O FOLIE TERRA
|
Inserted plastic foil for the IRIS-O luminaire series, in brown, as well as a BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000142 -
IRIS-O FOLIE BLAU
|
Inserted plastic foil for the IRIS-O luminaire series, Nordic BLUE colour, as well as a foil for stabilisation, also suitable for retrofitting mounting. |
|
|
SPI0000143 -
IRIS-O FOLIE GELB
|
Inserted plastic foil for IRIS-O luminaires, colour YELLOW, as well as BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000144 -
IRIS-O FOLIE GRÜN
|
Inserted plastic foil for the IRIS-O luminaire series, dark green colour, and BAP foil for stabilisation, also suitable for retrofitting. |
|
|
SPI0000141 -
IRIS-O FOLIE ROT
|
Inserted plastic foil for IRIS-O luminaire series, colour RED, as well as BAP foil for stabilisation, also suitable for retrofitting. |
|
|
Ceiling light from the IRIS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 2560 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Plastic, opal, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPI0000158 |
| GTIN | 4029299531749 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 375 mm |
| Dimension D2 | 204 mm |
| Dimension DA | 220 mm |
| Dimension H2 | 94 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 18.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2560 lm |
| Luminaire efficiency | 142 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

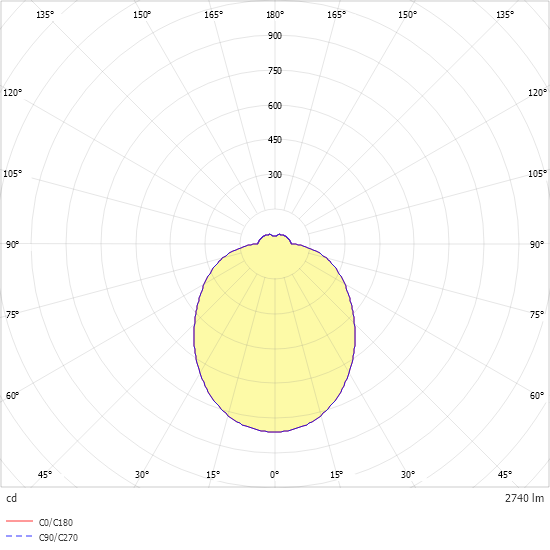

Light distribution curve
