H80 ORTO 1260-840 DA-SI / SPN0000069SI
Product Description
Spotlight of the H80-PROFIL product family. Light insert for straight H-profile structure. Rectangular light unit in a simple design with a cell louvre for optical control. The individual LEDs are covered with a panel. Light insert mounted on a steel bracket for a swivelling range of -45° to +45°.
Order Information
| Item number | SPN0000069SI |
| GTIN | 4029299500578 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 350 mm |
| Dimension B | 80 mm |
| Dimension H | 100 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 8.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 600 lm |
| Luminaire efficiency | 75 lm/W |

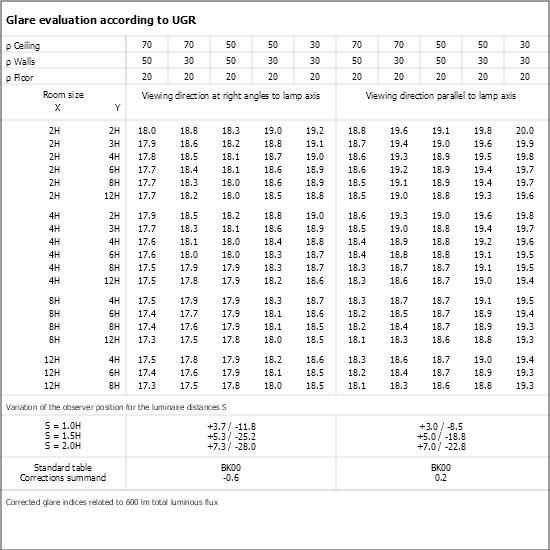

UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Product Description
Spotlight of the H80-PROFIL product family. Light insert for straight H-profile structure. Rectangular light unit in a simple design with a cell louvre for optical control. The individual LEDs are covered with a panel. Light insert mounted on a steel bracket for a swivelling range of -45° to +45°.
Product information
Order Information
| Item number | SPN0000069SI |
| GTIN | 4029299500578 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 350 mm |
| Dimension B | 80 mm |
| Dimension H | 100 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 8.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 600 lm |
| Luminaire efficiency | 75 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center

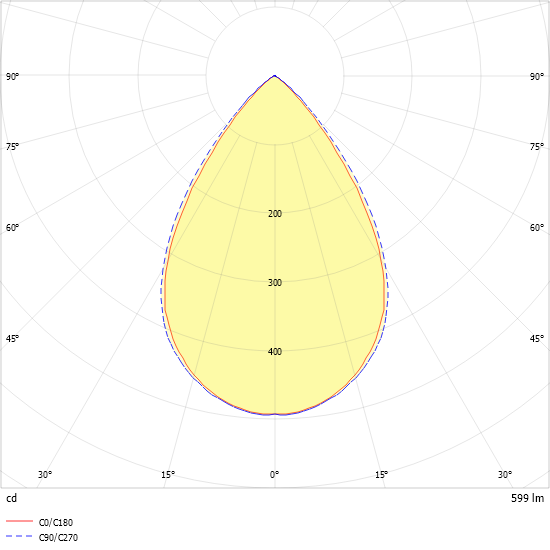

Light distribution curve
