H80 MIREFA 020DASW-1350-830 / SPN0000080AQ
Product Description
Pendant luminaire of the H80-PROFIL product family. Light insert for straight or curved H-profile structure. Steel mounted in the underside of the H-profile with RIDI LED module fitted with mid-power LEDs for maximum efficiency. LED module with attached reflector for optimum light emission.
Order Information
| Item number | SPN0000080AQ |
| GTIN | 4029299500783 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 200 mm |
| Dimension B | 80 mm |
| Dimension H | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 1000 lm |
| Luminaire efficiency | 111 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center
Approvals:
Product Description
Pendant luminaire of the H80-PROFIL product family. Light insert for straight or curved H-profile structure. Steel mounted in the underside of the H-profile with RIDI LED module fitted with mid-power LEDs for maximum efficiency. LED module with attached reflector for optimum light emission.
Product information
Order Information
| Item number | SPN0000080AQ |
| GTIN | 4029299500783 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 200 mm |
| Dimension B | 80 mm |
| Dimension H | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 1000 lm |
| Luminaire efficiency | 111 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center

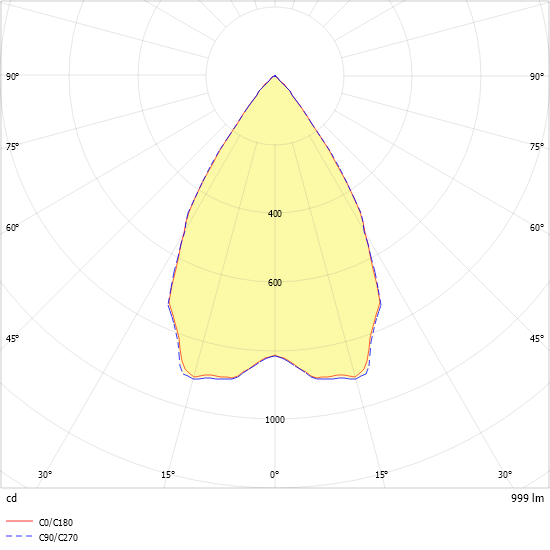

Light distribution curve
