H80 GLASZYL 1800-830 DA-SI / SPN0000060SI
Product Description
Pendant luminaire of the H80-PROFIL product family. Cylindrical luminaire insert for straight or curved H-profile structure. A lens-shaped luminaire element made of glass with clear, highly polished outer sides is installed at the bottom of the H-profile, matt underside. Luminaire element enclosed in an aluminium housing. LED COB module for high luminous flux and efficient optical control. The luminaire unit is also fitted with an opal matt acrylic glass cylinder, mounted on the lower edge of the H profile.
Order Information
| Item number | SPN0000060SI |
| GTIN | 4029299500394 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 134 mm |
| Dimension D | 80 mm |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Glass |
| Cover material | Glass |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 13.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | medium beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 1620 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center
Approvals:
Pendant luminaire of the H80-PROFIL product family. Cylindrical luminaire insert for straight or curved H-profile structure. A lens-shaped luminaire element made of glass with clear, highly polished outer sides is installed at the bottom of the H-profile, matt underside. Luminaire element enclosed in an aluminium housing. LED COB module for high luminous flux and efficient optical control. The luminaire unit is also fitted with an opal matt acrylic glass cylinder, mounted on the lower edge of the H profile.
Order Information
| Item number | SPN0000060SI |
| GTIN | 4029299500394 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 134 mm |
| Dimension D | 80 mm |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Glass |
| Cover material | Glass |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 13.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | medium beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 1620 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center

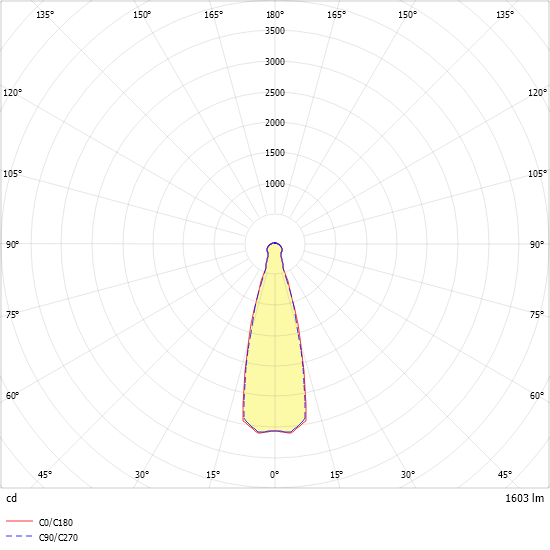

Light distribution curve
Approvals:
Attributes:
