H80 LINE 115DASW-400MPS830 / SPN0000070AQ
Product Description
Pendant luminaire of the H80-PROFIL product family. Light insert for straight H-profile structure. Acrylic glass pane (PMMA) with microprismatic structure inserted into the underside of the H-profile. Efficient illumination with low glare via multi-row LED array on metal core PCB.
Order Information
| Item number | SPN0000070AQ |
| GTIN | 4029299500585 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1150 mm |
| Dimension B | 80 mm |
| Dimension H | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 27.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2520 lm |
| Luminaire efficiency | 92 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center
Approvals:
Product Description
Pendant luminaire of the H80-PROFIL product family. Light insert for straight H-profile structure. Acrylic glass pane (PMMA) with microprismatic structure inserted into the underside of the H-profile. Efficient illumination with low glare via multi-row LED array on metal core PCB.
Product information
Order Information
| Item number | SPN0000070AQ |
| GTIN | 4029299500585 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1150 mm |
| Dimension B | 80 mm |
| Dimension H | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 27.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2520 lm |
| Luminaire efficiency | 92 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center

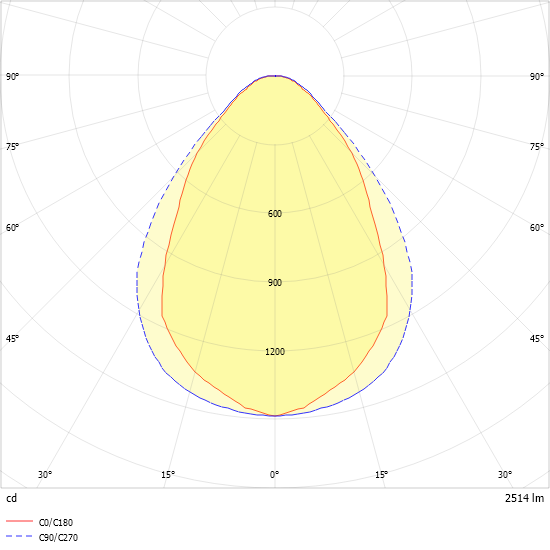

Light distribution curve
Approvals:
