H80 ALUZYL 1800-840 S-DA-SI / SPN0000103SI
Product Description
Pendant luminaire of the H80-PROFIL product family. Point-shaped light insert for straight or curved H-profile structure. Cylindrical luminaire unit made of twisted aluminium tube, COB module and hybrid reflector for precise light deflection.
Order Information
| Item number | SPN0000103SI |
| GTIN | 4029299501247 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Aluminium |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 13.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Spot |
| UGR class | ≤ 16 |
| Rated luminous flux | 1460 lm |
| Luminaire efficiency | 108 lm/W |

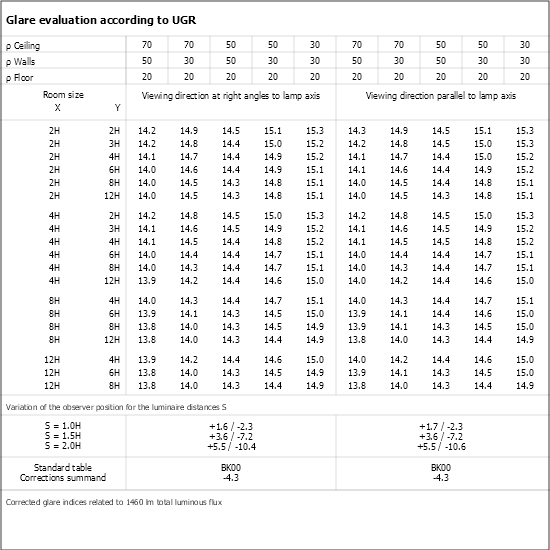

UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Product Description
Pendant luminaire of the H80-PROFIL product family. Point-shaped light insert for straight or curved H-profile structure. Cylindrical luminaire unit made of twisted aluminium tube, COB module and hybrid reflector for precise light deflection.
Product information
Order Information
| Item number | SPN0000103SI |
| GTIN | 4029299501247 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 80 mm |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Aluminium |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 13.5 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Spot |
| UGR class | ≤ 16 |
| Rated luminous flux | 1460 lm |
| Luminaire efficiency | 108 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Light distribution curve
Approvals:
Attributes:
