H140 LINE-D 100DASW-400OS840 / SPN0000087AQ
Product Description
Pendant luminaire from the H140-PROFIL product family. H-profile luminaire, straight, made of extruded aluminium profile, direct distribution. Lamp mounted in the underside of the H-profile. Cover with opal panel for homogeneous light emission.
Order Information
| Item number | SPN0000087AQ |
| GTIN | 4029299500929 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 100 mm |
| Dimension H | 140 mm |
| Net weight | 10.500 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 1710 lm |
| Luminaire efficiency | 78 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
Product Description
Pendant luminaire from the H140-PROFIL product family. H-profile luminaire, straight, made of extruded aluminium profile, direct distribution. Lamp mounted in the underside of the H-profile. Cover with opal panel for homogeneous light emission.
Product information
Order Information
| Item number | SPN0000087AQ |
| GTIN | 4029299500929 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 100 mm |
| Dimension H | 140 mm |
| Net weight | 10.500 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 1710 lm |
| Luminaire efficiency | 78 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center

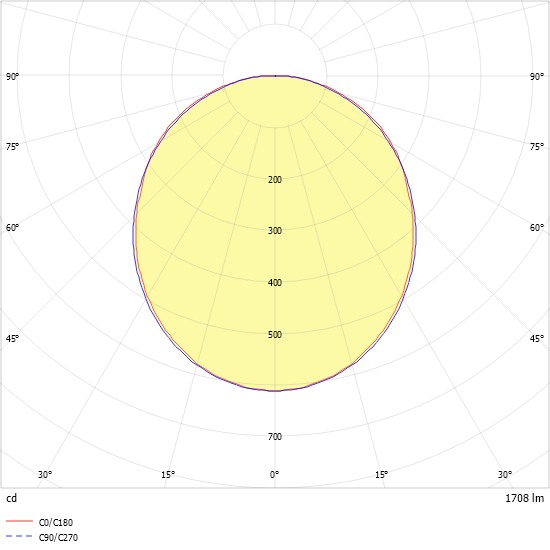

Light distribution curve
Approvals:
