H-LINE 1778DANE840B/MPS0950 / 0635810AF
Product Description
Pendant luminaire from the H-LINE MPS/AO product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 8600 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, aluminium, protection rating IP20. Pendant mounting via pre-assembled pendant set ZSPT2Z 120, length 1500mm, and surface-mounted ceiling canopy ZDBESI (included).Mains cable pre-assembled, transparent, length 1500mm. Toolless height adjustment of the Y-rope. Mounting by the customer. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0635810AF |
| GTIN | 4029299517996 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
Dimensions
| Dimension L | 1778 mm |
| Dimension B | 71 mm |
| Dimension H | 116 mm |
| Net weight | 7.500 kg |
Mounting
| Mounting type | Pendant |
Housing
| Colour | aluminium |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 69.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |

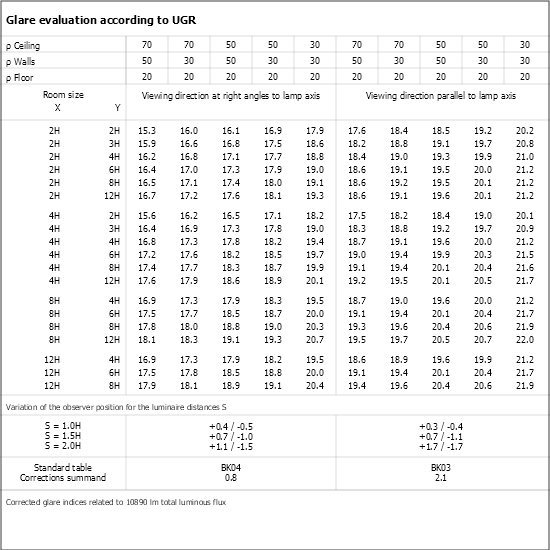

| UGR class | ≤ 22 |
| Rated luminous flux | 8600 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Pendant luminaire from the H-LINE MPS/AO product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 8600 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, aluminium, protection rating IP20. Pendant mounting via pre-assembled pendant set ZSPT2Z 120, length 1500mm, and surface-mounted ceiling canopy ZDBESI (included).Mains cable pre-assembled, transparent, length 1500mm. Toolless height adjustment of the Y-rope. Mounting by the customer. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0635810AF |
| GTIN | 4029299517996 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
Dimensions
| Dimension L | 1778 mm |
| Dimension B | 71 mm |
| Dimension H | 116 mm |
| Net weight | 7.500 kg |
Mounting
| Mounting type | Pendant |
Housing
| Colour | aluminium |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 69.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 8600 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
