FPL4-EQ0622FLWS850865MPS0500 / 0823021
Product Description
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4300 lm in light colour 850/865, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| GTIN | 4029299611243 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 620 mm |
| Dimension B | 620 mm |
| Dimension H | 28 mm |
| Dimension B4 | 65 mm |
| Dimension H4 | 30 mm |
| Dimension L4 | 170 mm |
| Net weight | 2.450 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–2.5 mm² |
Housing
| System dimension | 625 x 625 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4300 lm |
| Luminaire efficiency | 130,3 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 5000 K | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 65.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208996 -
ZBS-ER-EQ 622
|
Mounting frame for FPL-EQ 622 |
|
|
0209284 -
ZBS-AR-EQ 622
|
Surface mount for BLP-EQ 622 |
|
|
0209535 -
ZBS-EKL FPL4
|
Installation clip for recessed light FPL4, 1 set, 4 pieces |
|
|
| 0209517 - ZEL-FPL4-VE-I-FL-CS | Replacement driver, switchable, for FPL4 types xFlex and ColourSwitch |
|
|
| 0209560 - ZEL-FPL-EM-BOX-CS | Emergency light supply box 3W with self-test, 3h |
|
|
| 0209556 - ZBS-AS FPL4 | Retaining plates insert light FPL4 for on-site fall protection |
|
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4300 lm in light colour 850/865, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| GTIN | 4029299611243 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 620 mm |
| Dimension B | 620 mm |
| Dimension H | 28 mm |
| Dimension B4 | 65 mm |
| Dimension H4 | 30 mm |
| Dimension L4 | 170 mm |
| Net weight | 2.450 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–2.5 mm² |
Housing
| System dimension | 625 x 625 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4300 lm |
| Luminaire efficiency | 130,3 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 5000 K | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 65.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center

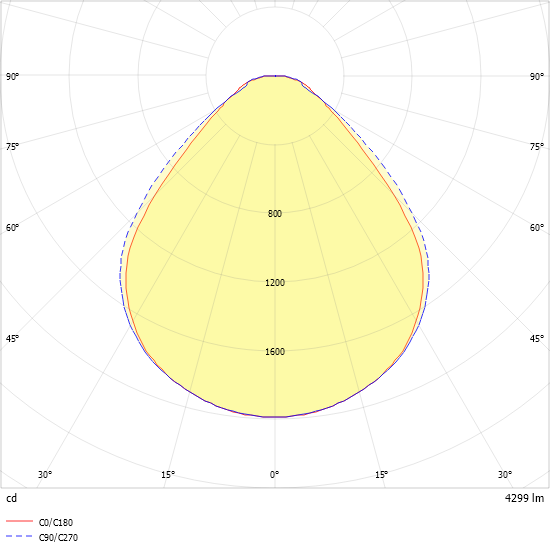

Light distribution curve
