FPL3-EQ0622NDWS830840MPS0500 / 0822991
Product Description
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4020 lm in light colour 830/840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
Item number | 0822991 |
GTIN | 4029299566611 |
General
Product category | Ceiling light |
Range of application | Office | Education | Retail |
Guarantee | 5 years |
Dimensions
Dimension L | 620 mm |
Dimension B | 620 mm |
Dimension H | 13 mm |
Net weight | 4.100 kg |
Mounting
Mounting type | Insert |
Mounting position | Ceiling |
Housing
System dimension | 625 x 625 |
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 |
Impact resistance | IK03 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Cover material | PMMA structured |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 50–60 Hz |
Rated power | 33.0 W |
Protection class | II |
Lighting technology
Light guide | Cover microprismatic |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | wide beam |
UGR class | ≤ 19 |
Rated luminous flux | 4020 lm |
Luminaire efficiency | 122 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG0 |
Rated life L80B50 (tq = 25 °C) | 70.000 h |
Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209395 - ZEL-FPL-EM-BOX-ND | 3 W power supply box for emergency light |
|
|
0209375 - ZEL-FPL3-VE-I-ND | Ersatztreiber FPL3, nicht dimmbar, 1 Stk. |
|
|
0209394 - ZBS-EKL FPL3-EQ | Installation bracket exclusively for FPL3-EQ, 1 set |
|
|
0208996 - ZBS-ER-EQ 622 | Mounting frame for FPL-EQ 622 |
|
|
0208991 - ZBS-AR FPL-EQ 622 | Surface mounting frame for FPL-EQ 622 |
|
|
0206909 - ZSP-FPL-EQ 1.5M | Y’ wire pendant FPL with ceiling fixture, 4xcarabiner, 1.5 m, (1/lum.) |
|
|
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4020 lm in light colour 830/840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
Item number | 0822991 |
GTIN | 4029299566611 |
General
Product category | Ceiling light |
Range of application | Office | Education | Retail |
Guarantee | 5 years |
Dimensions
Dimension L | 620 mm |
Dimension B | 620 mm |
Dimension H | 13 mm |
Net weight | 4.100 kg |
Mounting
Mounting type | Insert |
Mounting position | Ceiling |
Housing
System dimension | 625 x 625 |
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 |
Impact resistance | IK03 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Cover material | PMMA structured |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 50–60 Hz |
Rated power | 33.0 W |
Protection class | II |
Lighting technology
Light guide | Cover microprismatic |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | wide beam |
UGR class | ≤ 19 |
Rated luminous flux | 4020 lm |
Luminaire efficiency | 122 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG0 |
Rated life L80B50 (tq = 25 °C) | 70.000 h |
Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center

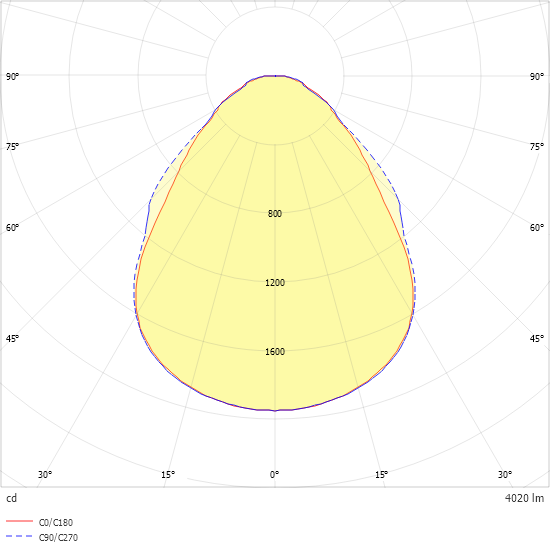

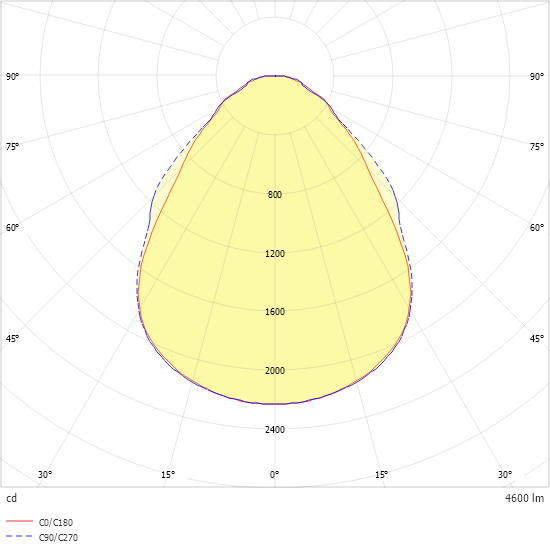

Light distribution curve
