FPL3-EE1545DAWS830840MPS0500 / 0832998
Product Description
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 3900 lm in light colour 830/840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0832998 |
| GTIN | 4029299566758 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |

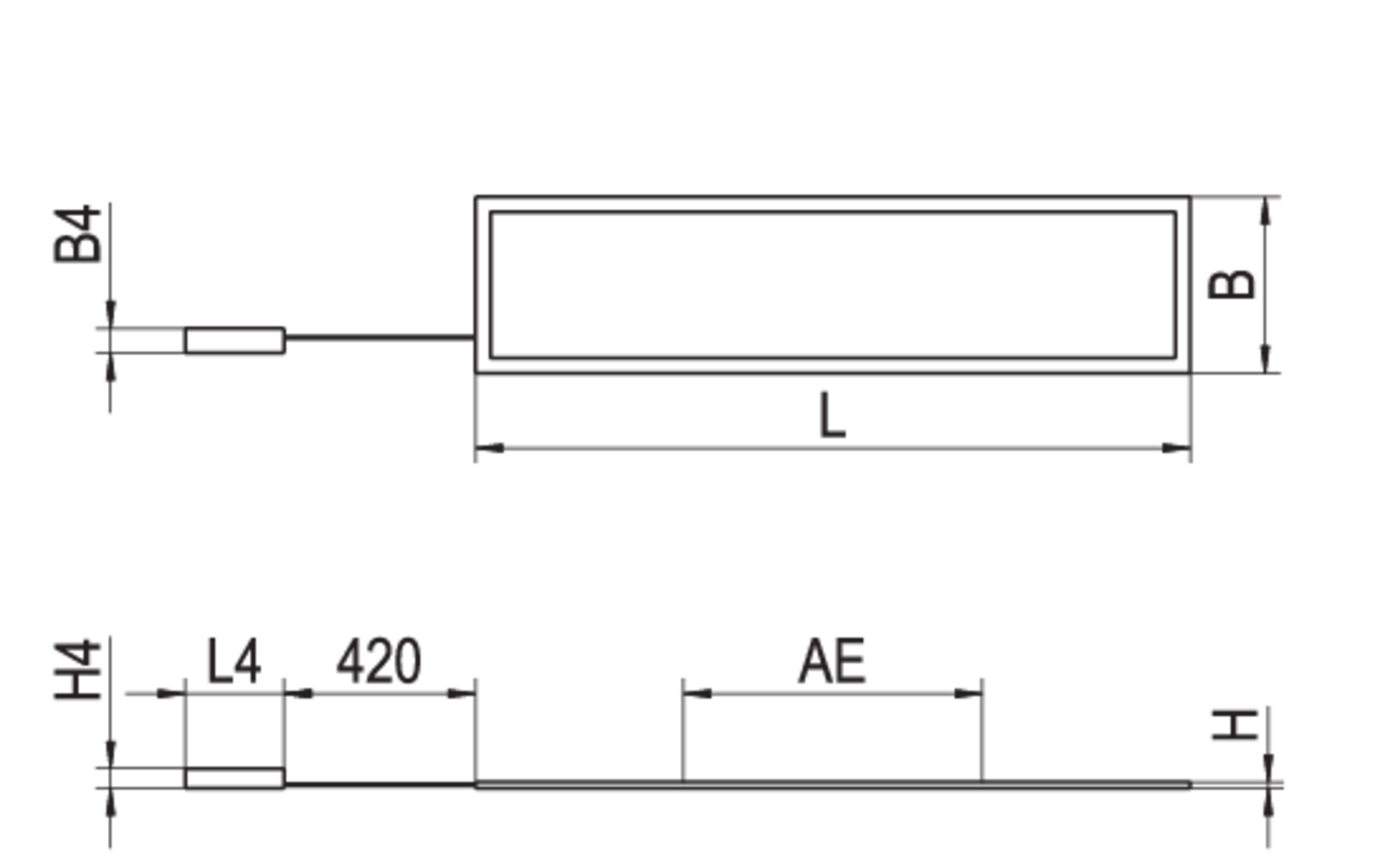

Dimensions
| Dimension L | 1545 mm |
| Dimension B | 310 mm |
| Dimension H | 13 mm |
| Net weight | 5.150 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
Housing
| System dimension | 312,5 x 1550 |
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3900 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209249 -

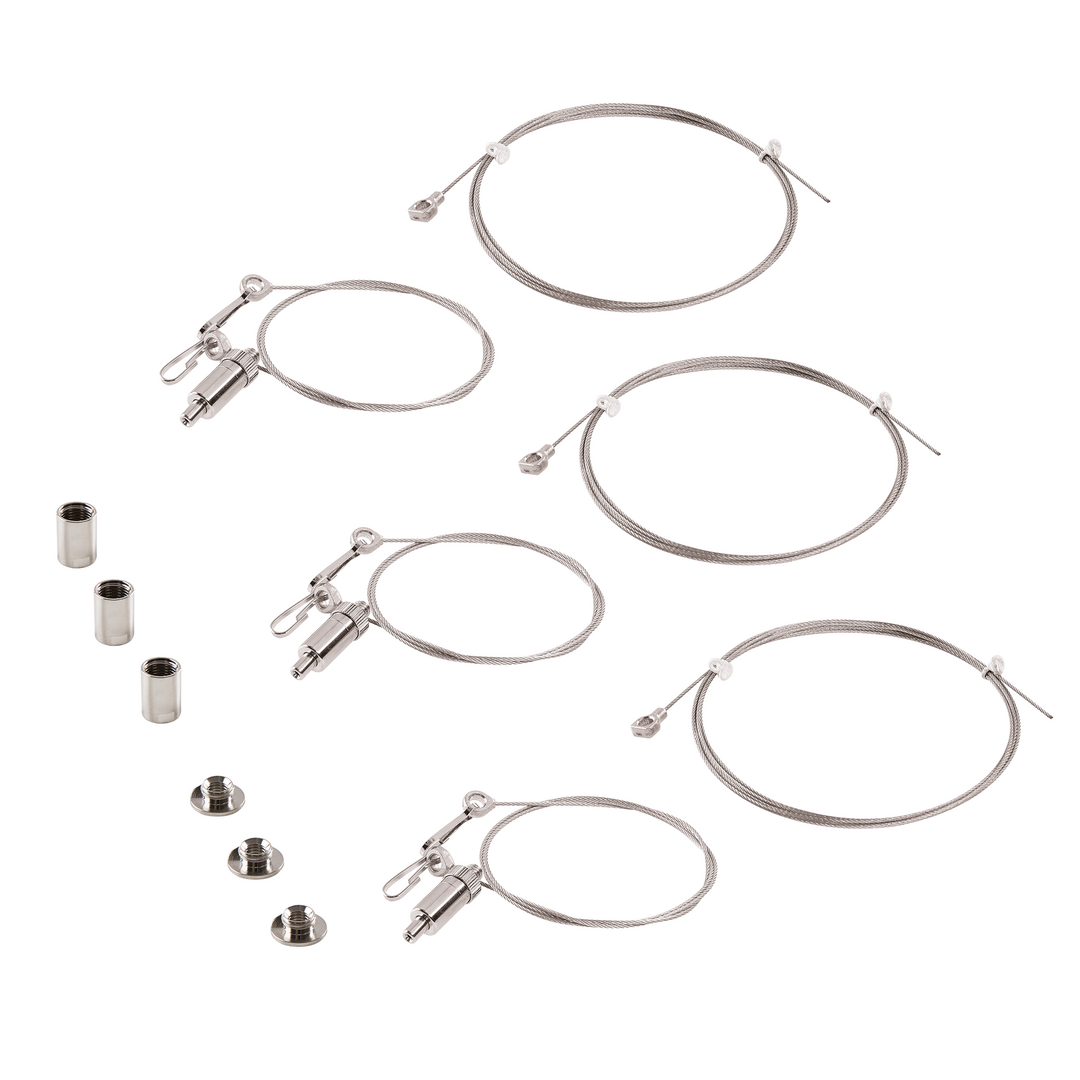

ZSP-FPL-EE 1.5M
|
Wire pen., trapez. FPL, ceiling mount, 1.5m, carab.(6), 1 per luminaire |
|
|
| 0209374 - ZEL-FPL3-VE-I-DA | Replacement driver FPL3, Dali dimmable, 1 pc. |
|
|
| 0209376 - ZBS-AR FPL3-EE 1545 | Mounting frame for FPL3-EE 1545, insertion transverse to luminaire axis |
|
|
| 0209377 - ZBS-ER-EE 1545 | Mounting frame for FPL-EE 1545 |
|
|
| 0209395 - ZEL-FPL-EM-BOX-ND | 3 W power supply box for emergency light |
|
|
| 0209470 - ZEL-SP-TD | Overvoltage protection for touch dim applications |
|
|
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 3900 lm in light colour 830/840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0832998 |
| GTIN | 4029299566758 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1545 mm |
| Dimension B | 310 mm |
| Dimension H | 13 mm |
| Net weight | 5.150 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
Housing
| System dimension | 312,5 x 1550 |
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3900 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center

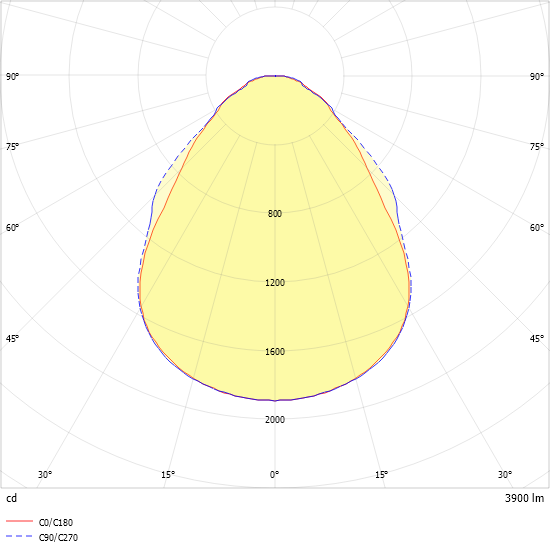

Light distribution curve
