F-LINE-RT2X115/20ND-SM-SET / 0650581SI673683
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp R-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 5230 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, silver, protection rating IP20. The luminaire is suitable for pendant mounting with wire pendant. Including wire pendant, length 1.5 metres ZSPT2Z 190 for F-LINE-RT1..., or ZSPT2Z 295 for F-LINE-RT2...Mains cable, length 1.5 metres with transparent sheath pre-assembled. Continuous luminaire mounting possible with F-LINE-VS luminaire connector accessory. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650581SI673683 |
| GTIN | 4029299472165 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1253 mm |
| Dimension B | 204 mm |
| Dimension H | 37 mm |
| Dimension AE max | 1190 mm |
| Dimension AE min | 840 mm |
| Net weight | 3.930 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | open end |
| Number of poles | 3 |
| Conductor cross-section | 0.75 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 42.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

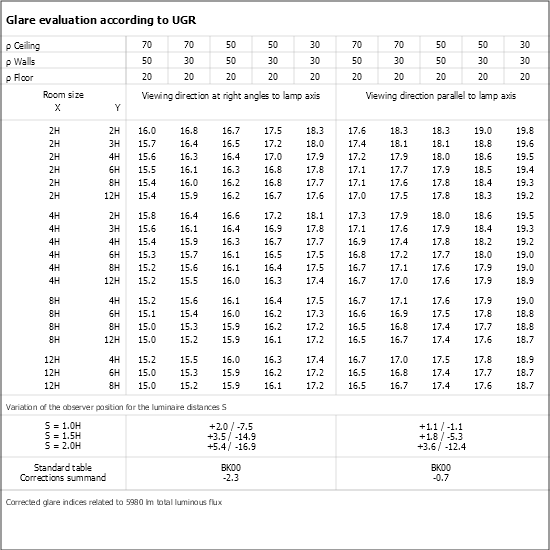

| UGR class | ≤ 22 |
| Rated luminous flux | 5230 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
