F-LINE-R2X145/35DA-SM / 0660250
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamp R-TUBE not included, Exchange by end customer. The luminaire generates a rated luminous flux of 5930 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. The luminaires are suitable with accessories for pendant mounting with wire pendant or for direct ceiling mounting.wire pendant mounting F-LINE 1.. with ZSPT2Z 190, F-LINE 2.. with ZSPT2Z 295.straight, L-shaped, T-shaped and cross-shaped connectors are available for the production of F-LINE constructs. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0660250 |
| GTIN | 4029299422238 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1553 mm |
| Dimension B | 204 mm |
| Dimension H | 45 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 4.600 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | Aluminium |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 64.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |

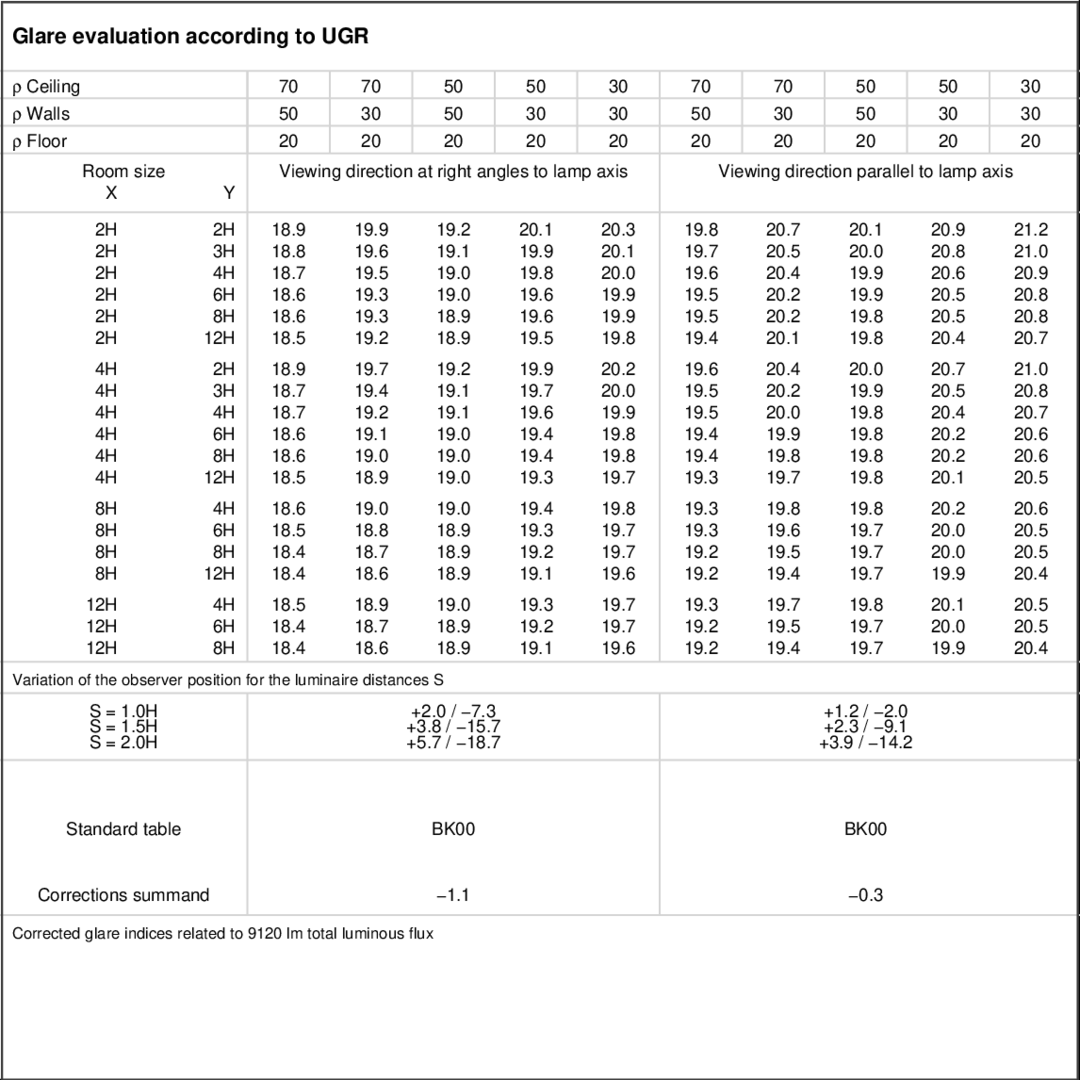

| UGR class | ≤ 19 |
| Rated luminous flux | 5930 lm |
| Luminaire efficiency | 93 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0203583 -
ZSPT2Z 295 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0202897 -
ZSPT2ZE 295 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
0202897SI -
ZSPT2ZE 295 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, rectangular canopy silver, 1.5m, 1 pc |
|
|
0202896 -
ZSPT2ZH 295 BALDA.+SEILP. 1.5M
|
Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
0202896SI -
ZSPT2ZH 295 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
0207971 -
F-LINE-VS
|
Lum. connector f. F-LINE, 100mm, white, pendant m. only, 1 pc |
|
|
|
0207971SI -
F-LINE-VS-SI
|
Lum. connector f. F-LINE, 100mm, silver, pendant m. only, 1 pc |
|
|
0208095 -
F-LINE-VS-D
|
Lum. connector f. F-LINE, 100mm, white, ceiling surface m., 1 pc |
|
|
|
0208095SI -
F-LINE-VS-D-SI
|
Lum. connector f. F-LINE, 100mm, silver, ceiling surface m., 1 pc |
|
|
0207973 -
F-LINE-VST 1../2..
|
T-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
|
0207973SI -
F-LINE-VST 1../2.. SI
|
T-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0207974 -
F-LINE-VSK 1../2..
|
X-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
|
0207974SI -
F-LINE-VSK 1../2.. SI
|
X-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0207972 -
F-LINE-VSL 1../2..
|
L-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
|
0207972SI -
F-LINE-VSL 1../2.. SI
|
L-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207977/L300 -
ZAL 3X1.5/3.0M-T
|
Transparent connecting cable, 3x1.5mm², 3.0 m. |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
|
0207979 -
ZKF 3X0.75/1.0M
|
Cable guide C-profile, for dia. 4-5mm, 1 metre, transparent |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
| 0201255 - ZIDV-F-LINE 28/3/1.5 | Through wiring F-LINE .28, 3x1.5mm², L=1.7m, max.10A |
|
|
| 0201256 - ZIDV-F-LINE 28/5/1.5 DIM | Through wiring F-LINE .28, 5x1.5mm², L=1.7m, max.10A |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206603LD - R-TUBE-G2 145-830M0450 LD | 1449 | 3000 K | matt |
|
|
| 1206598LD - R-TUBE-G2 145-840M0450 LD | 1449 | 4000 K | matt |
|
|
| 1206782LD - R-TUBE-G2 145-865M0450 LD | 1449 | 6500 K | matt |
|
|
| 1206579LD - R-TUBE-G2 145-830M0350 LD | 1449 | 3000 K | matt |
|
|
| 1204993LD - R-TUBE-G2 145-840M0350 LD | 1449 | 4000 K | matt |
|
|
| 1206725LD - R-TUBE-G2 145-865M0350 LD | 1449 | 6500 K | matt |
|
|
| 0206988LD - R-TUBE 145-830M0550 LD | 1449 | 3000 K | matt |
|
|
| 0206991LD - R-TUBE 145-840M0550 LD | 1449 | 4000 K | matt |
|
|
| 0206994LD - R-TUBE 145-865M0550 LD | 1449 | 6500 K | matt |
|
|
