F-LINE-PDI1550DAWS840M9S0600 / 0637884
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 6180 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637884 |
| GTIN | 4029299575149 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
Dimensions
| Dimension L | 1550 mm |
| Dimension B | 200 mm |
| Dimension H | 33 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 5.000 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | open end |
| Number of poles | 5 |
| Conductor cross-section | 0.75 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 43.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Reflector | matt |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 6180 lm |
| Luminaire efficiency | 144 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 78.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0203583 -
ZSPT2Z 295 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0202897 -
ZSPT2ZE 295 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
Pendant luminaire from the F-LINE product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 6180 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637884 |
| GTIN | 4029299575149 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
Dimensions
| Dimension L | 1550 mm |
| Dimension B | 200 mm |
| Dimension H | 33 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 5.000 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | open end |
| Number of poles | 5 |
| Conductor cross-section | 0.75 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 43.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Reflector | matt |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 6180 lm |
| Luminaire efficiency | 144 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 78.000 h |
Download Center

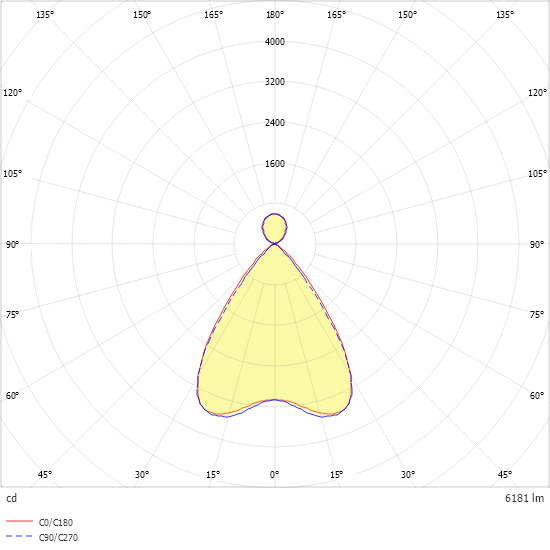

Light distribution curve
