F-LINE-LF 149/475A840 SI-DA / 0637430SI
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Reflector, beam pattern asymmetric, angled beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3330 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, silver, protection rating IP20. With accessories, the luminaires are suitable for pendant mounting with wire pendant or for direct ceiling mounting.wire pendant mounting with ZSPT2Z 190. continuous luminaire mounting possible with F-LINE-VS luminaire connector accessory. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637430SI |
| GTIN | 4029299467307 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1553 mm |
| Dimension B | 175 mm |
| Dimension H | 52 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 8.000 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 30.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Light output | direct |
| Light distribution | asymmetric |
| Radiation pattern | asymmetric beam |
| UGR class | > 25 |
| Rated luminous flux | 3330 lm |
| Luminaire efficiency | 111 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0201253 - ZIDV-F-LINE 35/3/1.5 | Through wiring F-LINE .35, 3x1.5mm², L=2.0m, max.10A |
|
|
| 0201254 - ZIDV-F-LINE 35/5/1.5 DIM | Through wiring F-LINE .35, 5x1.5mm², L=2.0m, max.10A |
|
|
0209037 -
F-LINE-LF-VS
|
Lum. connector f. F-LINE-LF, 100mm, white, pendant m. only, 1 pc |
|
|
|
0209037SI -
F-LINE-LF-VS-SI
|
Lum. connector f. F-LINE-LF, 100mm, silver, pendant m. only, 1 pc |
|
|
0209038SI -
F-LINE-LF-VS-D-SI
|
Lum. connector f. F-LINE-LF, 100mm, silver, ceiling surface m., 1 pc |
|
|
|
0209038 -
F-LINE-LF-VS-D
|
Lum. connector f. F-LINE-LF, 100mm, white, ceiling surface m., 1 pc |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207979 -
ZKF 3X0.75/1.0M
|
Cable guide C-profile, for dia. 4-5mm, 1 metre, transparent |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0207975 -
ZSPT2ZH 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
0207975SI -
ZSPT2ZH 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0207976 -
ZSPT2ZE 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy white, 1.5m, 1 pc |
|
|
0207976SI -
ZSPT2ZE 190 BALDA.+SP. 1.5M-SI
|
Y wire pendant, rect. canopy, silver, 1.5m, 1pc |
|
|
Pendant luminaire from the F-LINE product family. Optical control via Reflector, beam pattern asymmetric, angled beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3330 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, silver, protection rating IP20. With accessories, the luminaires are suitable for pendant mounting with wire pendant or for direct ceiling mounting.wire pendant mounting with ZSPT2Z 190. continuous luminaire mounting possible with F-LINE-VS luminaire connector accessory. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637430SI |
| GTIN | 4029299467307 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1553 mm |
| Dimension B | 175 mm |
| Dimension H | 52 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 8.000 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 30.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Light output | direct |
| Light distribution | asymmetric |
| Radiation pattern | asymmetric beam |
| UGR class | > 25 |
| Rated luminous flux | 3330 lm |
| Luminaire efficiency | 111 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

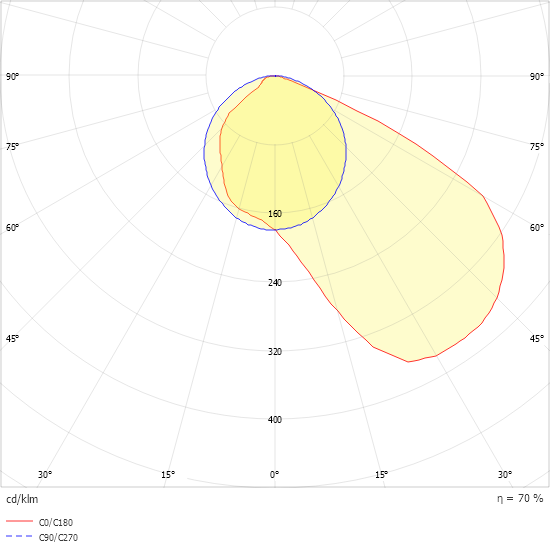

Light distribution curve
