FEDGE2-PD1200NDSI830-0300 / 0627626SI
Product Description
Pendant luminaire from the F-EDGE2 product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3110 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, silver, protection rating IP20. The luminaires are suitable for pendant mounting with wire pendant, length 1.5 m ZSPT2Z 330 (see accessories). Mains cable, length 1.5 m with transparent sheath (to be ordered separately). Straight, L-shaped, T-shaped and cross-shaped connectors are available for F-EDGE2 constructs (see accessories). Luminaire also available as a surface-mounted version with corresponding accessory set (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627626SI |
| GTIN | 4029299549379 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1201 mm |
| Dimension B | 341 mm |
| Dimension H | 22 mm |
| Dimension AE max | 1002 mm |
| Dimension AE min | 862 mm |
| Net weight | 6.8 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3110 lm |
| Luminaire efficiency | 135 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209049 - ZIDV-FEDGE 600/5/1.5 | 600 mm INSET for F-EDGE VS |
|
|
| 0209048 - ZIDV-FEDGE 600/3/1.5 | 600 mm INSET for F-EDGE VS |
|
|
| 0209051 - ZIDV-FEDGE 800/5/1.5 | 800 mm INSET for F-EDGE VSL/VSK/VST |
|
|
| 0209050 - ZIDV-FEDGE 800/3/1.5 | 800 mm INSET for F-EDGE VSL/VSK/VST |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0209290AQ -
ZBS-FEDGE2-A-DA
|
Ceiling fixture for FEDGE2 1200 + 1500, DALI, black |
|
|
0209290SI -
ZBS-FEDGE2-A-DA
|
Ceiling fixture for FEDGE2 1200 + 1500, DALI, silver |
|
|
0209290 -
ZBS-FEDGE2-A-DA
|
Ceiling fixture for FEDGE2 1200 + 1500, DALI, white |
|
|
|
0209289AQ -
ZBS-FEDGE2-A-ND
|
Ceiling fixture for FEDGE2 1200 + 1500, non-dimmable, black |
|
|
|
0209289SI -
ZBS-FEDGE2-A-ND
|
Ceiling fixture for FEDGE2 1200 + 1500, non-dimmable, silver |
|
|
|
0209289 -
ZBS-FEDGE2-A-ND
|
Ceiling fixture for FEDGE2 1200 + 1500, non-dimmable, white |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0209042SI -
FEDGE-VS-SEN-SI
|
F-EDGE 250 mm luminaire connector, silver, one unit for pendant mounting with integrated sensor |
|
|
0209042 -
FEDGE-VS-SEN
|
F-EDGE 250 mm luminaire connector, white, one unit for pendant mounting with integrated sensor |
|
|
0209351AQ -
FEDGE-VS-D-FSW
|
L= 250 MM, WITH 5-PIN TERMINAL, BLACK, 1 UNIT |
|
|
0209351SI -
FEDGE-VS-D-SI
|
L= 250 MM, WITH 5-PIN TERMINAL, SILVER, 1 UNIT |
|
|
0209351 -
FEDGE-VS-D
|
L= 250 MM, WITH 5-PIN TERMINAL, WHITE, 1 UNIT |
|
|
| 0209314AQ - FEDGE-VS-CDH-FSW | Luminaire connector F-EDGE 250 mm, black, 1 unit, APCON CDH module |
|
|
| 0209313AQ - FEDGE-VS-DA-SEN-FSW | Luminaire connector F-EDGE 250 mm, black, 1 unit, APCON sensor |
|
|
| 0209314SI - FEDGE-VS-CDH-SI | Luminaire connector F-EDGE 250 mm, silver, 1 unit, APCON CDH module |
|
|
| 0209313SI - FEDGE-VS-DA-SEN-SI | Luminaire connector F-EDGE 250 mm, silver, 1 unit, APCON sensor |
|
|
| 0209314 - FEDGE-VS-CDH | Luminaire connector F-EDGE 250 mm, white, 1 unit, APCON CDH module |
|
|
| 0209313 - FEDGE-VS-DA-SEN | Luminaire connector F-EDGE 250 mm, white, 1 unit, APCON sensor |
|
|
0209043SI -
FEDGE-VS-SI
|
Luminaire connector FEDGE 250 mm, silver, 1 unit |
|
|
0209043 -
FEDGE-VS
|
Luminaire connector FEDGE 250 mm, white, 1 unit |
|
|
0209044SI -
FEDGE-VSK-SI
|
Luminaire connector FEDGE cross-shaped, silver, 1 unit |
|
|
0209044 -
FEDGE-VSK
|
Luminaire connector FEDGE cross-shaped, white, 1 unit |
|
|
0209045SI -
FEDGE-VSL-SI
|
Luminaire connector FEDGE L-shaped, silver, 1 unit |
|
|
0209045 -
FEDGE-VSL
|
Luminaire connector FEDGE L-shaped, white, 1 unit |
|
|
0209046SI -
FEDGE-VST-SI
|
Luminaire connector FEDGE T-shaped, silver, 1 unit |
|
|
0209046 -
FEDGE-VST
|
Luminaire connector FEDGE T-shaped, white, 1 unit |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
| 0209047 - ZSPT2ZE 330 BALDA.+SEILP. 1.5M | Wire pendant trapezoid, rectangular canopy, white, 1.5 m, one unit |
|
|
| 0209047SI - ZSPT2ZE 330 BALDA.+SEILP. 1.5M | Y wire pendant, rect. canopy, silver, 1.5m, 1pc |
|
|
| 0206000 - ZSPT2Z 330 SEILPENDEL TRAPEZ | Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
Pendant luminaire from the F-EDGE2 product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3110 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, silver, protection rating IP20. The luminaires are suitable for pendant mounting with wire pendant, length 1.5 m ZSPT2Z 330 (see accessories). Mains cable, length 1.5 m with transparent sheath (to be ordered separately). Straight, L-shaped, T-shaped and cross-shaped connectors are available for F-EDGE2 constructs (see accessories). Luminaire also available as a surface-mounted version with corresponding accessory set (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627626SI |
| GTIN | 4029299549379 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1201 mm |
| Dimension B | 341 mm |
| Dimension H | 22 mm |
| Dimension AE max | 1002 mm |
| Dimension AE min | 862 mm |
| Net weight | 6.8 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3110 lm |
| Luminaire efficiency | 135 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

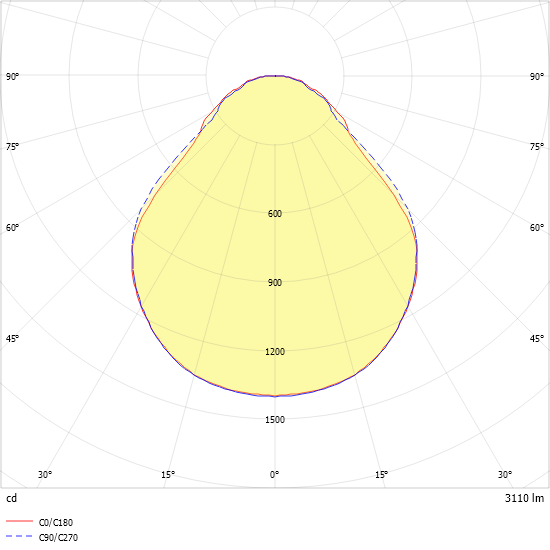

Light distribution curve
