ESL-R2X145/35ND-SM / 0850440
Product Description
Ceiling light from the ESLE product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamp R-TUBE not included, Exchange by end customer. The luminaire generates a rated luminous flux of 7850 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0850440 |
| GTIN | 4029299490916 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1555 mm |
| Dimension B | 630 mm |
| Dimension H | 60 mm |
| Dimension B2 | 290 mm |
| Dimension L2 | 1470 mm |
| Net weight | 11.800 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 64.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |

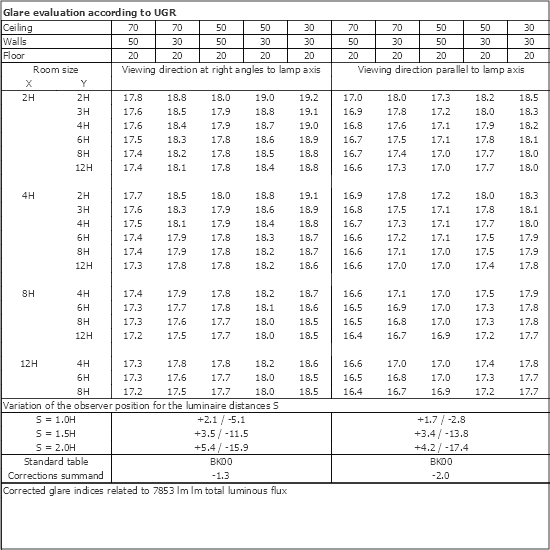

| UGR class | ≤ 19 |
| Rated luminous flux | 7850 lm |
| Luminaire efficiency | 123 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206603LD - R-TUBE-G2 145-830M0450 LD | 1449 | 3000 K | matt |
|
|
| 1206598LD - R-TUBE-G2 145-840M0450 LD | 1449 | 4000 K | matt |
|
|
| 1206782LD - R-TUBE-G2 145-865M0450 LD | 1449 | 6500 K | matt |
|
|
| 1206579LD - R-TUBE-G2 145-830M0350 LD | 1449 | 3000 K | matt |
|
|
| 1204993LD - R-TUBE-G2 145-840M0350 LD | 1449 | 4000 K | matt |
|
|
| 1206725LD - R-TUBE-G2 145-865M0350 LD | 1449 | 6500 K | matt |
|
|
| 0206988LD - R-TUBE 145-830M0550 LD | 1449 | 3000 K | matt |
|
|
| 0206991LD - R-TUBE 145-840M0550 LD | 1449 | 4000 K | matt |
|
|
| 0206994LD - R-TUBE 145-865M0550 LD | 1449 | 6500 K | matt |
|
|
