ESL1255DAWS840M9S0550 / 0838156
Product Description
Ceiling light of the ESLE Product family. Optical control by Lens from PMMA clear, light distribution symmetric, wide beam, light emission direct. Reference value UGR 18. Lamp LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5570 lm in light colour 840, adjustable luminous flux, and the long LED service life of up to 75.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0838156 |
| GTIN | 4029299614190 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1255 mm |
| Dimension B | 330 mm |
| Dimension H | 58 mm |
| Dimension B2 | 167 mm |
| Dimension L2 | 1122 mm |
| Net weight | 6.400 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–43 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Reflector | matt |
| Glare control | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |

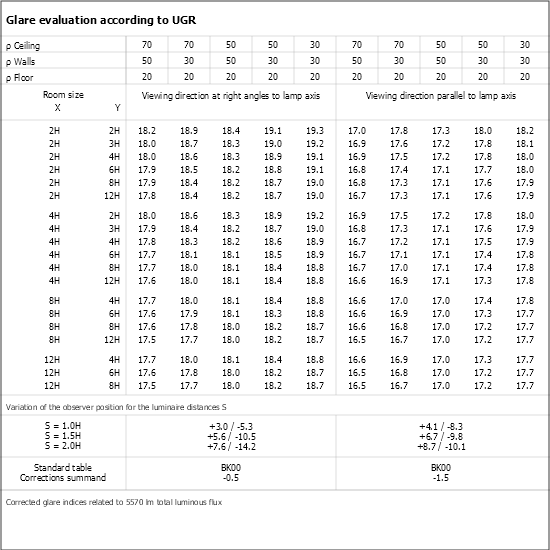

| UGR class | ≤ 19 |
| Rated luminous flux | 5570 lm |
| Luminaire efficiency | 147 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 75.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
