ESHL-L ... PSB

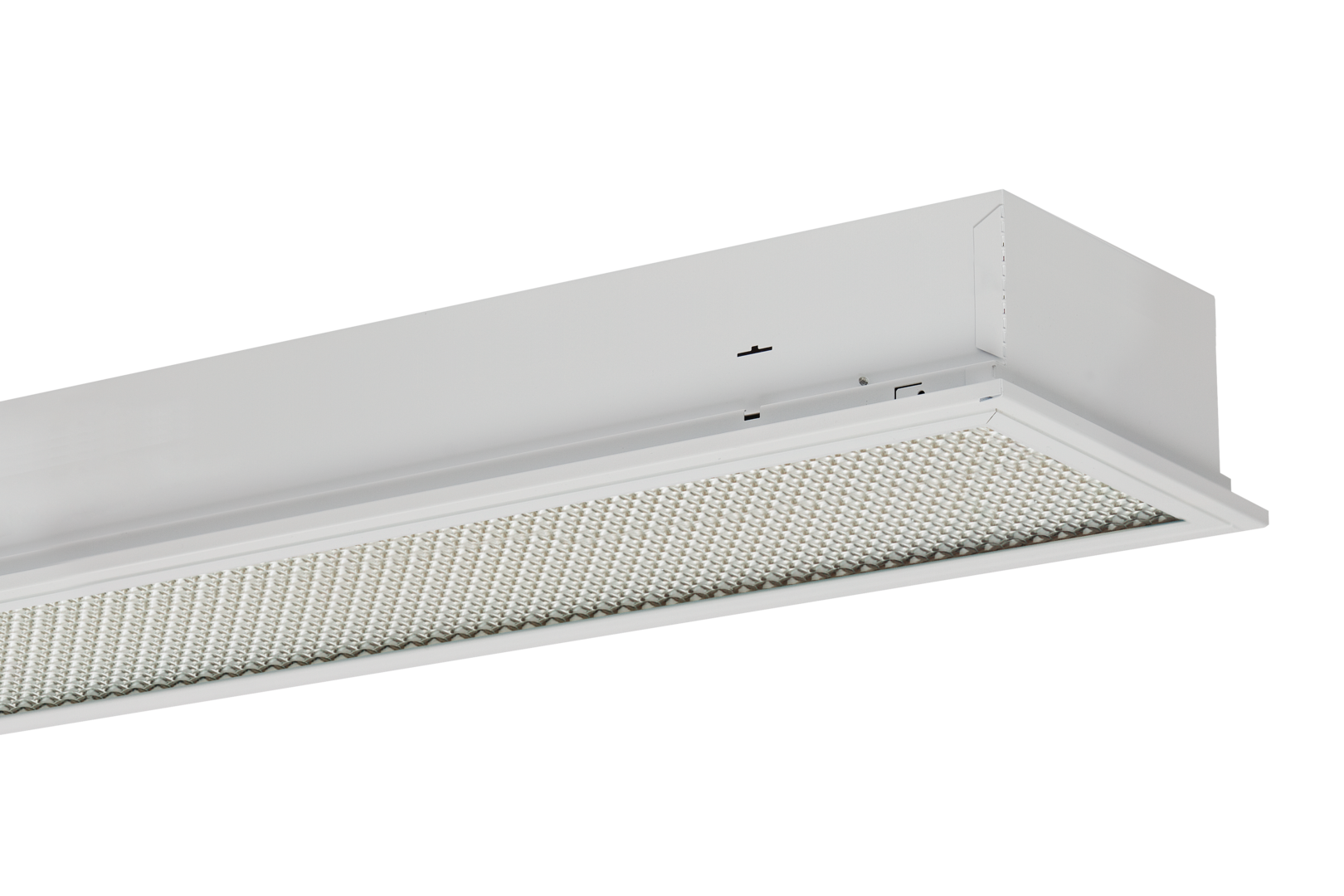

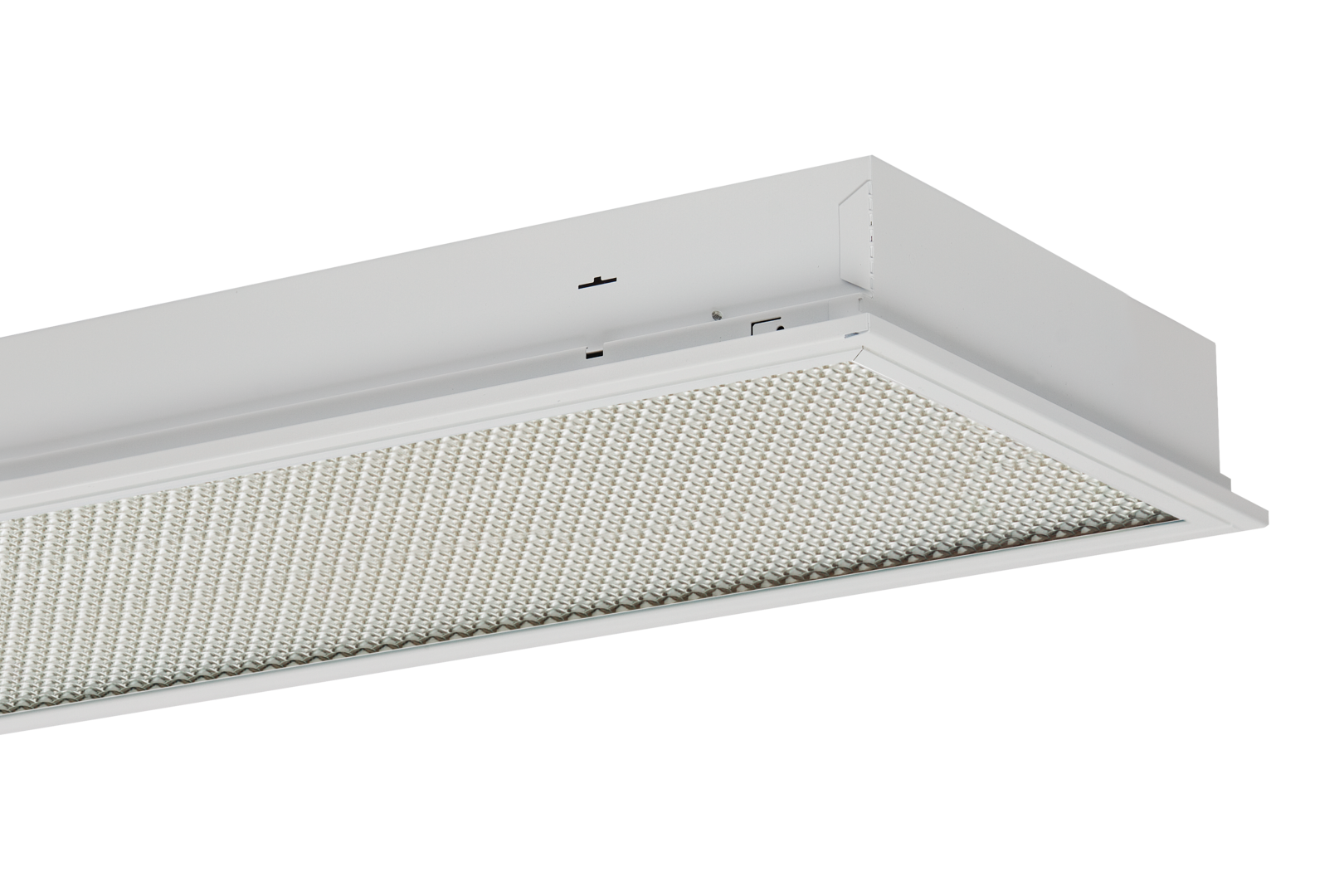

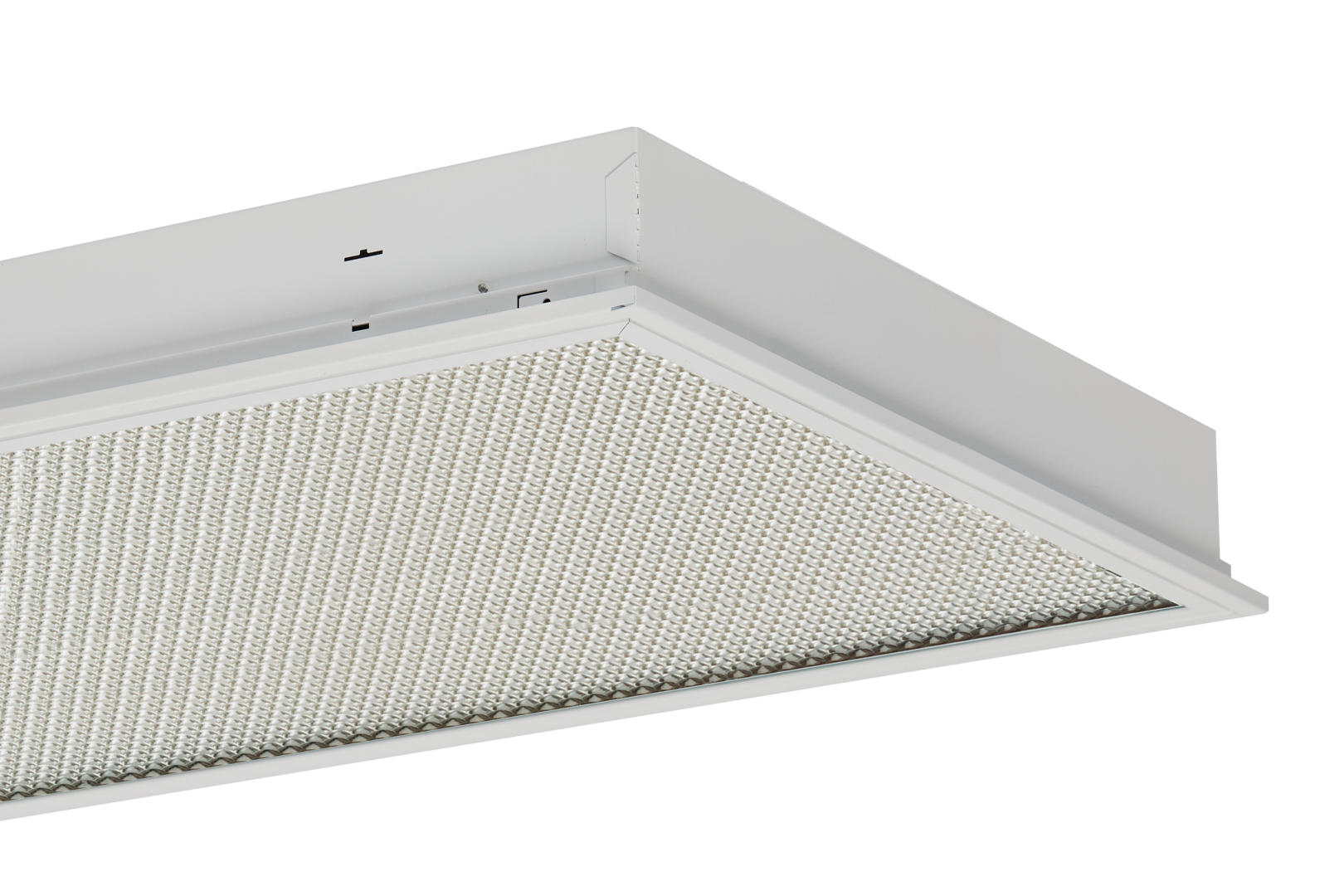

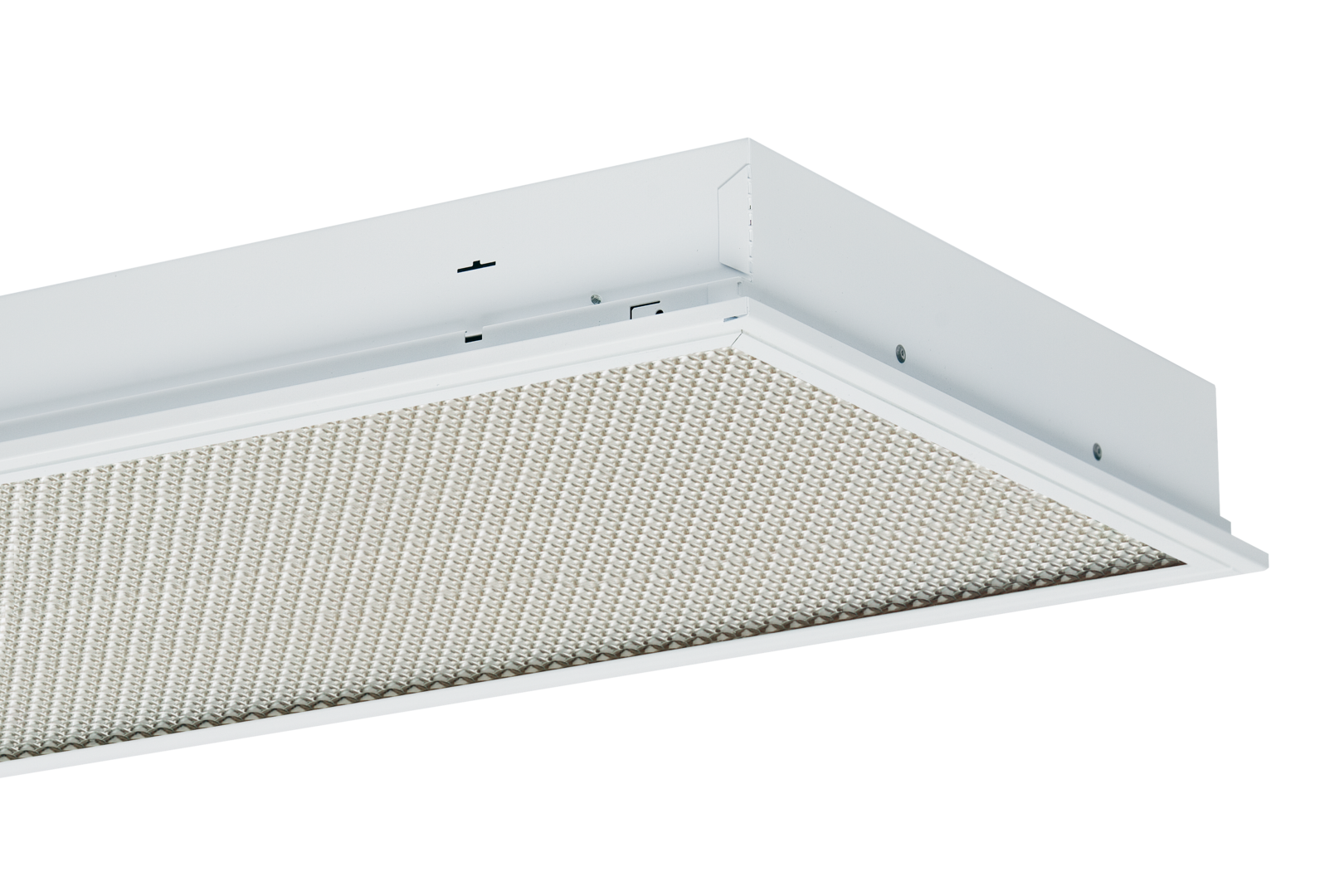

Design: Closed recessed single luminaire. Includes RIDI-LED lamp L-TUBE-B. Stable luminaire housing in white powder-coated steel, colour similar to RAL9016. End caps with additional break-outs for mains cables or through wiring. Narrow frame in extruded sectional aluminium with panel in tough UV-stabilised PMMA. Frame held invisibly in the luminaire housing by spring catches, hinges down on both sides with automatic connection to the earth conductor.
0850166 - ESHL-L 180/670-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5210
Power (W): 48
Efficiency (lm/W): 109
0860166 - ESHL-L 180/670-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 5210
Power (W): 48
Efficiency (lm/W): 109
0850614 - ESHL-L 180/935-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7230
Power (W): 69
Efficiency (lm/W): 105
0860614 - ESHL-L 180/935-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 7230
Power (W): 69
Efficiency (lm/W): 105
0850169 - ESHL-L 280/1340-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 11130
Power (W): 96
Efficiency (lm/W): 116
0860169 - ESHL-L 280/1340-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 11130
Power (W): 96
Efficiency (lm/W): 116
0850615 - ESHL-L 280/1870-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 15450
Power (W): 138
Efficiency (lm/W): 112
0860615 - ESHL-L 280/1870-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 15450
Power (W): 138
Efficiency (lm/W): 112
0850172 - ESHL-L 380/2010-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 16690
Power (W): 144
Efficiency (lm/W): 116
0860172 - ESHL-L 380/2010-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 16690
Power (W): 144
Efficiency (lm/W): 116
0850616 - ESHL-L 380/2520-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 20840
Power (W): 183
Efficiency (lm/W): 114
0860616 - ESHL-L 380/2520-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 20840
Power (W): 183
Efficiency (lm/W): 114
0850175 - ESHL-L 480/2680-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 22250
Power (W): 192
Efficiency (lm/W): 116
0860175 - ESHL-L 480/2680-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 22250
Power (W): 192
Efficiency (lm/W): 116
0850617 - ESHL-L 480/3360-840 PSB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 27780
Power (W): 244
Efficiency (lm/W): 114
0860617 - ESHL-L 480/3360-840 PSB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 27780
Power (W): 244
Efficiency (lm/W): 114
