EL-ES1547NDWS840M9S0750 / 0828126










Product Description
Ceiling light from the EL product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 7430 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Mounting: Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
Item number | 0828126 |
GTIN | 4029299575842 |
General
Product category | Ceiling light |
Range of application | Education | Office |
Technology | driver@optic |
Guarantee | 5 years |
Dimensions
Dimension L | 1547 mm |
Dimension B | 183 mm |
Dimension H | 60 mm |
Dimension BE | 165 mm |
Dimension LE | 1529 mm |
Net weight | 6.000 kg |

Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 5 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
System dimension | 188 x 1550 |
Colour | traffic white, similar to RAL 9016 |
Protection class | IP20 | IP40 room side |
Impact resistance | IK03 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–40 °C |
Housing material | Steel |
Surface treatment of housing | powder-coated |
Cover material | PMMA clear |
Electrical version
Type of control | On/Off |
Nominal voltage | 220–240 V, 50–60 Hz |
Rated power | 50.0 W |
Protection class | I |
Lighting technology
Light distributor | Lens |
Reflector | matt |
Light emission | direct |
Light distribution | symmetric |
Beam characteristics | wide beam |

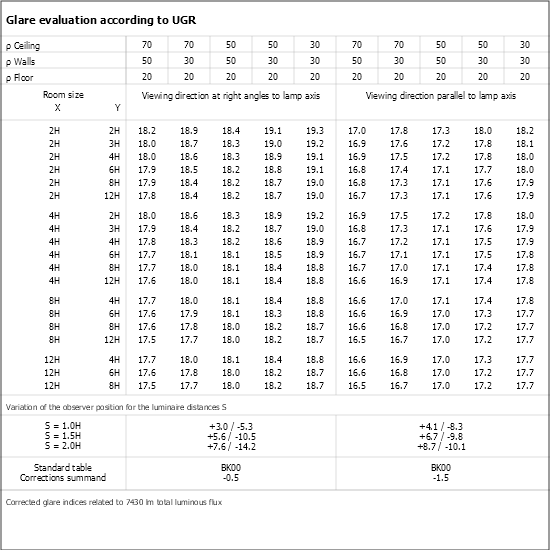

UGR class | ≤ 19 |
Rated luminous flux | 7430 lm |
Luminaire efficiency | 149 lm/W |

Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 100.000 h |
Rated life L80B10 (tq = 25 °C) | 78.000 h |
