EL-AQ0622NDWS840M9S0350 / 0627905
Product Description
Ceiling light from the EL product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3710 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Mounting: Ceiling mounting with enclosed accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627905 |
| GTIN | 4029299574715 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Technology | driver@optic |
| Guarantee | 5 years |
Dimensions
| Dimension L | 630 mm |
| Dimension B | 626 mm |
| Dimension H | 60 mm |
| Dimension A1 | 400 mm |
| Dimension A2 | 435 mm |
| Net weight | 3.350 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 625 x 625 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 26.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

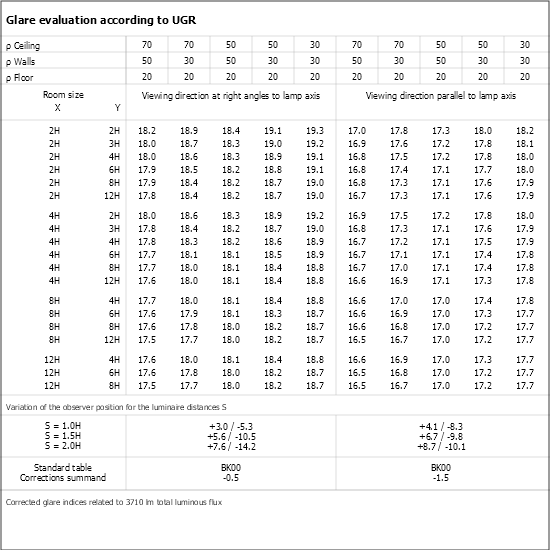

| UGR class | ≤ 19 |
| Rated luminous flux | 3710 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 78.000 h |
