EIHLS-L ... SM

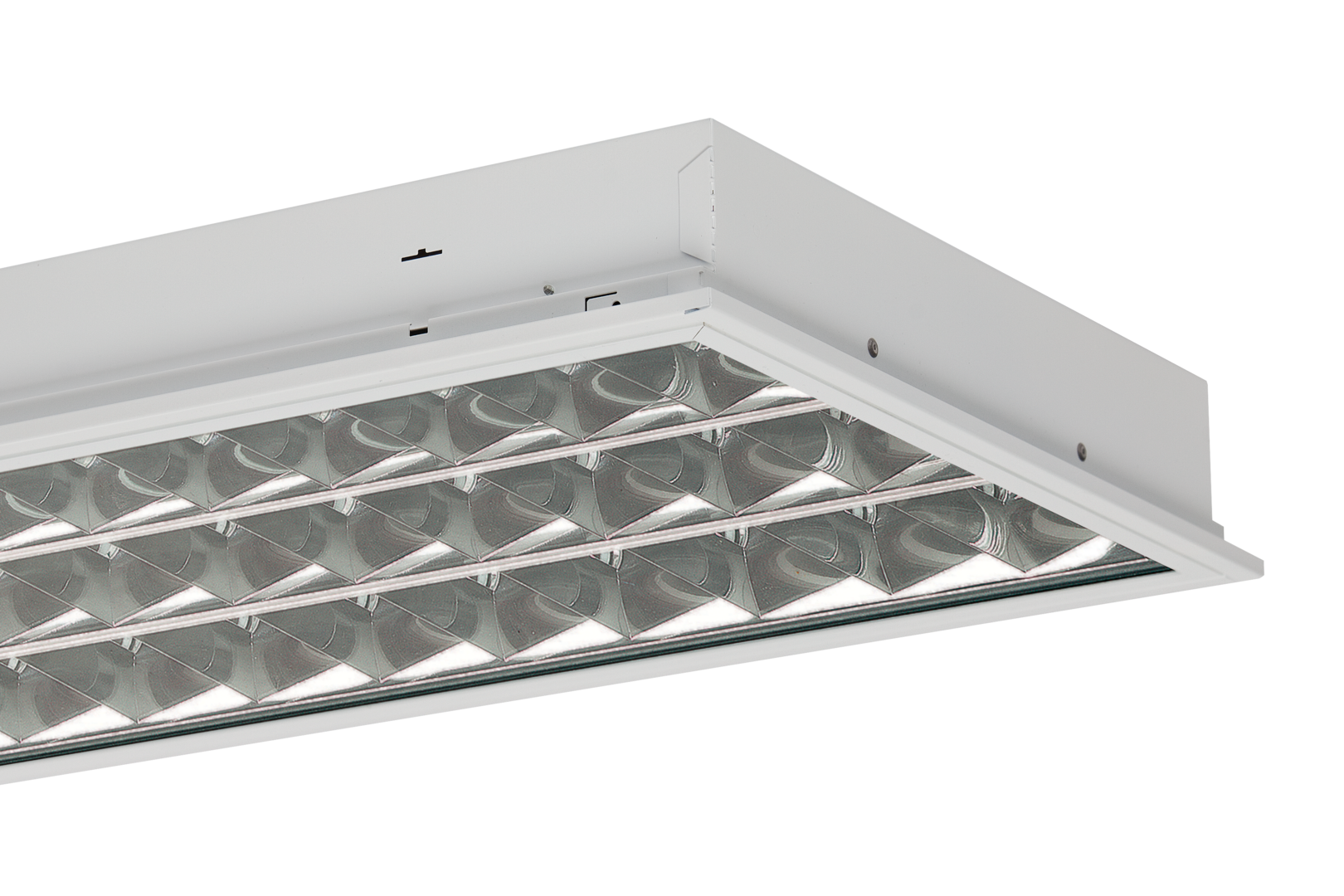

Recessed industrial luminaire, protection rating IP64 on the room side and IP54 on the ceiling side, single luminaire closed. Including RIDI LED lamp L-TUBE-B. Sturdy luminaire housing made of galvanised steel, white powder coated, colour similar to RAL9016. Built-in top reflector made of high-reflectance super-purity aluminium with silver coating, matt anodised. Narrow frame made of extruded aluminium profile with panel made of impact-resistant, UV-stabilised PMMA. Frame held invisibly in the luminaire housing with spring clips, hinged on both sides with automatic connection to the PE conductor. Protective gaskets and seal foamed all round the luminaire edge for sealing to the ceiling.
0850582 - EIHLS-L 154/410-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 4120
Power (W): 34
Efficiency (lm/W): 121
0860582 - EIHLS-L 154/410-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 4120
Power (W): 34
Efficiency (lm/W): 121
0850642 - EIHLS-L 180/935-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 8080
Power (W): 69
Efficiency (lm/W): 117
0860642 - EIHLS-L 180/935-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 8080
Power (W): 69
Efficiency (lm/W): 117
0850584 - EIHLS-L 254/820-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 8230
Power (W): 68
Efficiency (lm/W): 121
0860584 - EIHLS-L 254/820-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 8230
Power (W): 68
Efficiency (lm/W): 121
0850585 - EIHLS-L 280/1240-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 11640
Power (W): 96
Efficiency (lm/W): 121
0860585 - EIHLS-L 280/1240-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 11640
Power (W): 96
Efficiency (lm/W): 121
0850643 - EIHLS-L 280/1870-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 16160
Power (W): 138
Efficiency (lm/W): 117
0860586 - EIHLS-L 324/600-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 5320
Power (W): 45
Efficiency (lm/W): 118
0850590 - EIHLS-L 454/1640-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 16460
Power (W): 136
Efficiency (lm/W): 121
0860590 - EIHLS-L 454/1640-840 SM-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 16460
Power (W): 136
Efficiency (lm/W): 121
0850591 - EIHLS-L 480/2480-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 23280
Power (W): 192
Efficiency (lm/W): 121
0850645 - EIHLS-L 480/3360-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 29070
Power (W): 244
Efficiency (lm/W): 119
