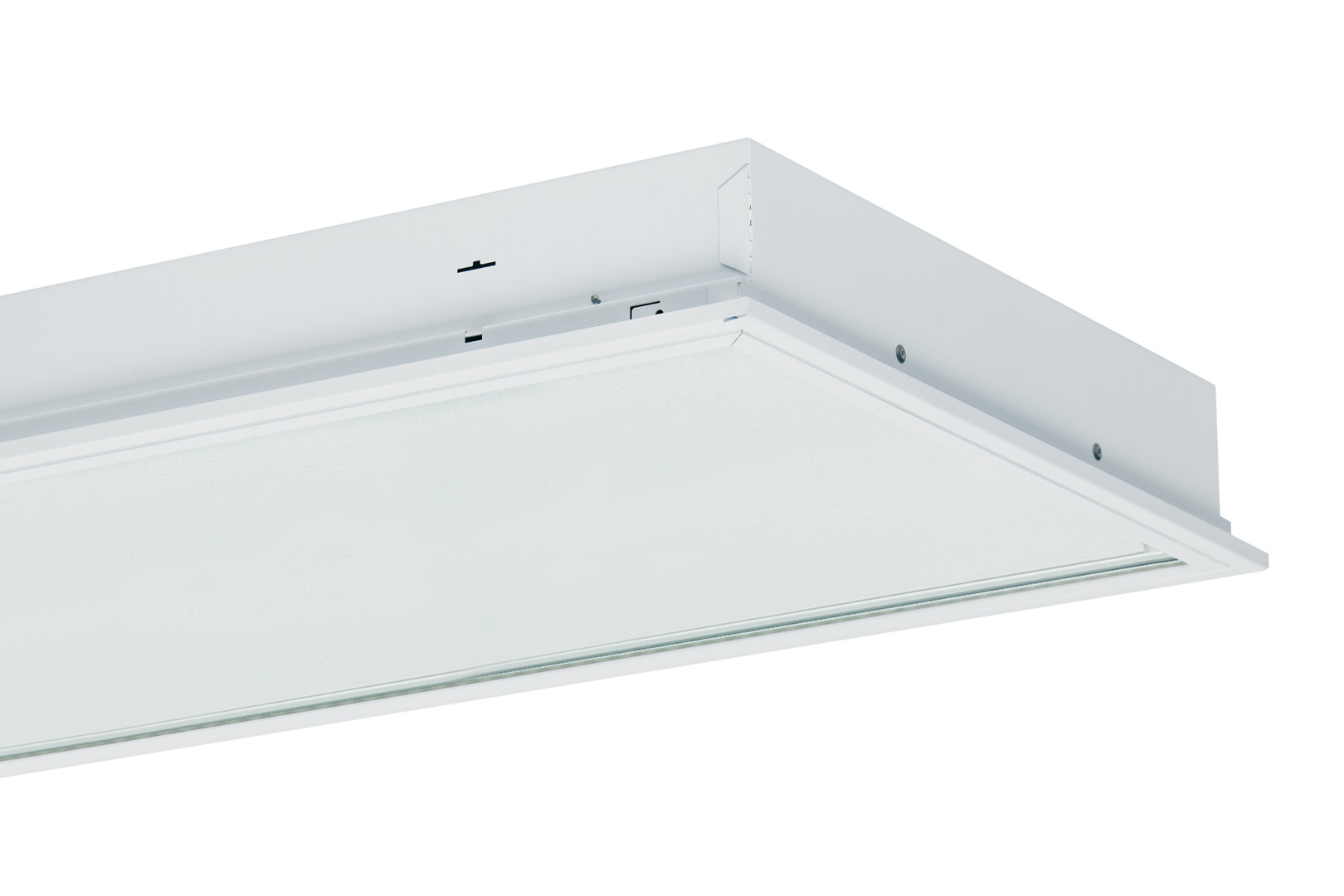

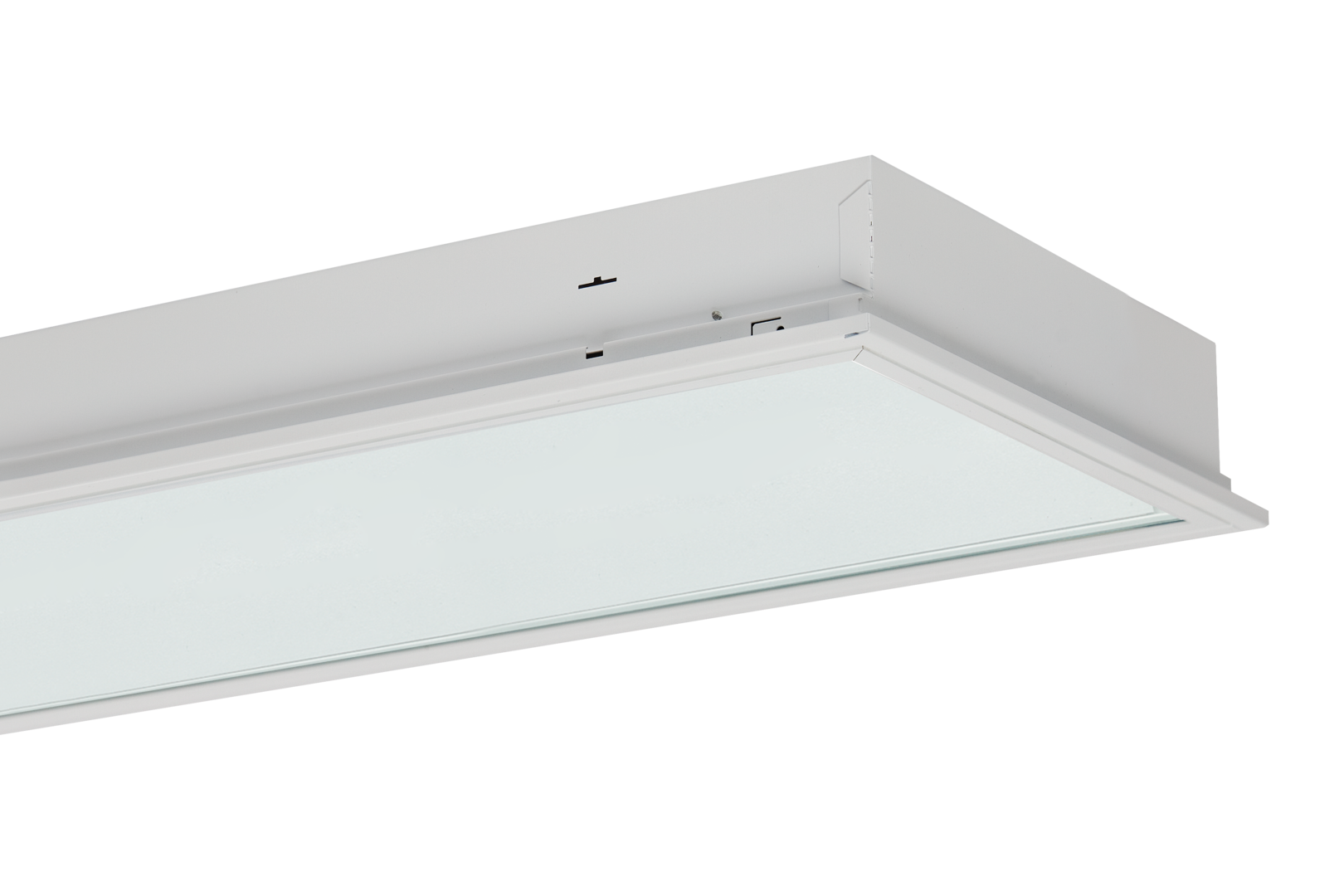

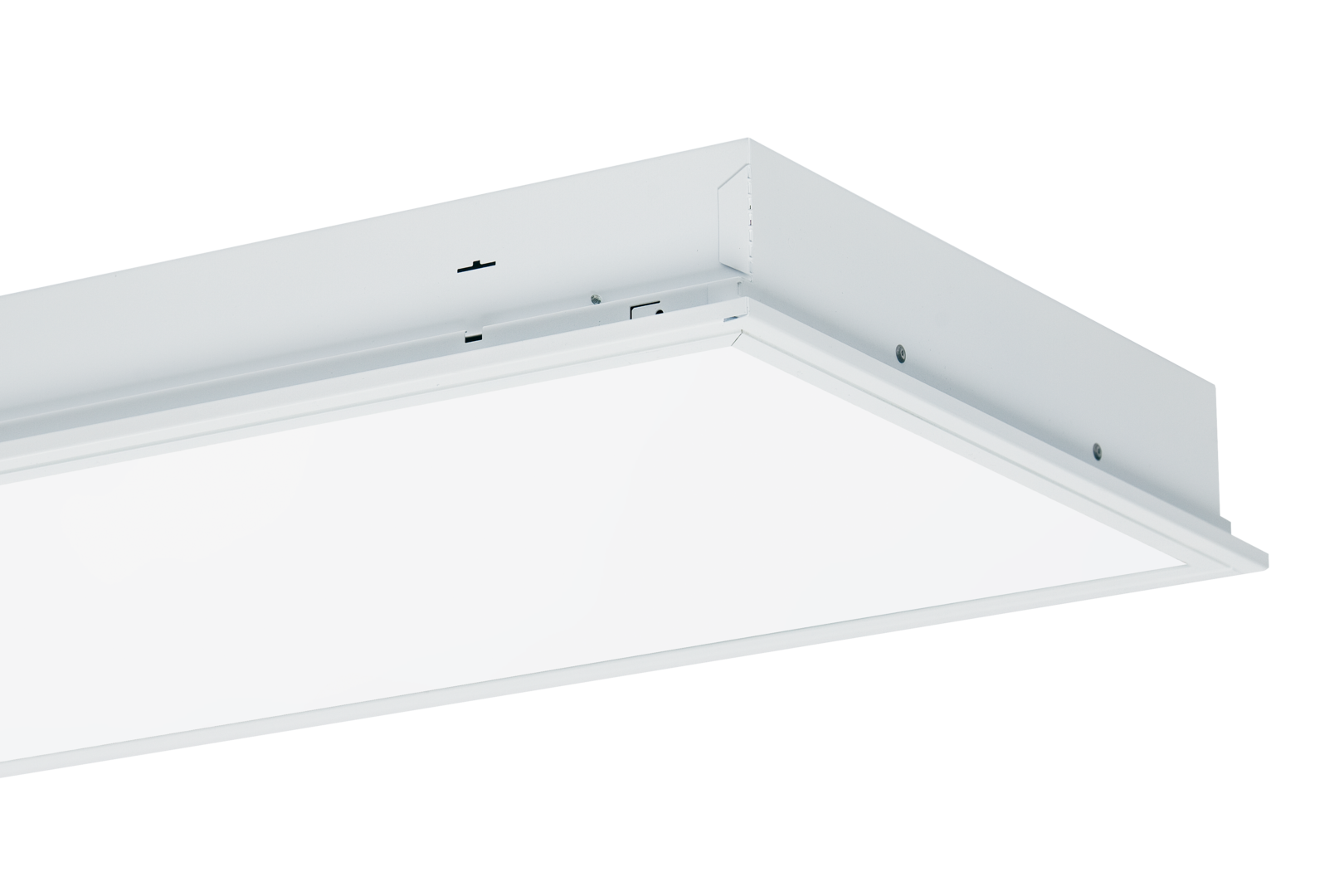

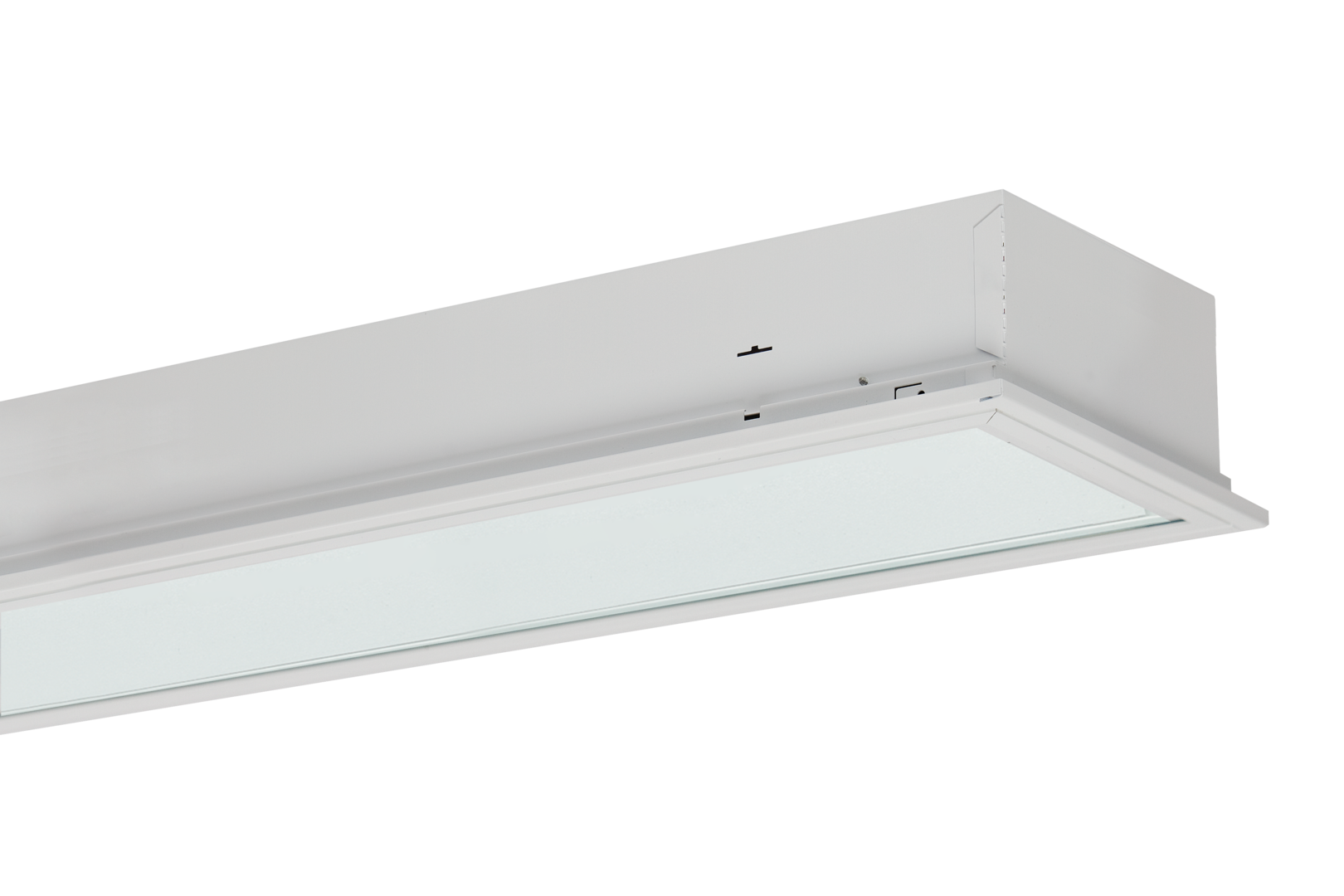

EIHLS-L ... SB
Recessed industrial luminaire, protection rating IP64 on the room side and IP54 on the ceiling side, single luminaire closed. Including RIDI LED lamp L-TUBE-B. Sturdy luminaire housing made of galvanised steel, white powder coated, colour similar to RAL9016. Built-in top reflector made of high-reflectance super-purity aluminium with silver coating, matt anodised. Narrow frame made of extruded aluminium profile with panel made of impact-resistant, UV-stabilised PMMA. Frame held invisibly in the luminaire housing with spring clips, hinged on both sides with automatic connection to the PE conductor. Protective gaskets and seal foamed all round the luminaire edge for sealing to the ceiling.
0850454 - EIHLS-L 154/410-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3860
Power (W): 34
Efficiency (lm/W): 114
0860454 - EIHLS-L 154/410-840 SB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3860
Power (W): 34
Efficiency (lm/W): 114
0850455 - EIHLS-L 180/620-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5460
Power (W): 48
Efficiency (lm/W): 114
0860455 - EIHLS-L 180/620-840 SB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 5460
Power (W): 48
Efficiency (lm/W): 114
0850634 - EIHLS-L 180/935-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7570
Power (W): 69
Efficiency (lm/W): 110
0850456 - EIHLS-L 254/820-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7720
Power (W): 68
Efficiency (lm/W): 114
0850457 - EIHLS-L 280/1240-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 10910
Power (W): 96
Efficiency (lm/W): 114
0850635 - EIHLS-L 280/1870-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 15150
Power (W): 138
Efficiency (lm/W): 110
0860635 - EIHLS-L 280/1870-840 SB-DA
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 15160
Power (W): 138
Efficiency (lm/W): 110
0850458 - EIHLS-L 324/600-840 SB
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 4990
Power (W): 45
Efficiency (lm/W): 111
