EDLR 275/4000-830 OS / 0326703
Product Description
Downlight from the EDLR product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 2820 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP20. Mounting in sawn ceiling openings. Fixing clips for clamping thicknesses from 0 to 25 mm. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0326703 |
| GTIN | 4029299541434 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 75 mm |
| Dimension D | 277 mm |
| Dimension D2 | 277 mm |
| Dimension DE max | 265 mm |
| Dimension DE min | 262 mm |
| Dimension HE | 90 mm |
| Dimension S | 25 mm |
| Net weight | 1.570 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 2820 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Downlight from the EDLR product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 2820 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP20. Mounting in sawn ceiling openings. Fixing clips for clamping thicknesses from 0 to 25 mm. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0326703 |
| GTIN | 4029299541434 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 75 mm |
| Dimension D | 277 mm |
| Dimension D2 | 277 mm |
| Dimension DE max | 265 mm |
| Dimension DE min | 262 mm |
| Dimension HE | 90 mm |
| Dimension S | 25 mm |
| Net weight | 1.570 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 2820 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

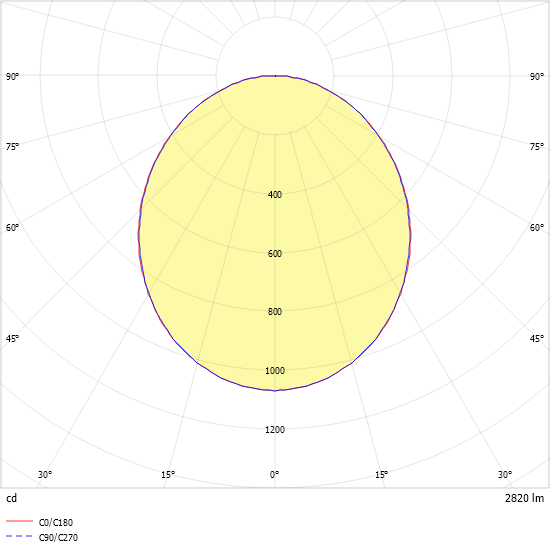

Light distribution curve
Approvals:
