EDLR 235/5000-840 W-DA-EDS3 / 0331464//377
![](/cmi24web/cmi24web_exporte/ridi/assets/2017_05_EDLR_235-5000_W_cmi.png)
![](/cmi24web/cmi24web_exporte/ridi/assets/2017_05_EDLR_235-5000_W_cmi.png)
Product Description
Downlight from the EDLR product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5190 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. In addition to the standard fixing clamps for clamping thicknesses from 0 to 40 mm, special fixing kits such as panel mounting kits, reinforcement plates, concrete casting boxes, plaster rings, angled and semi-recessed mounting kits are available as accessories. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: Luminous flux in emergency mode: app. 500 lm
Order Information
Item number | 0331464//377 |
GTIN | 4029299535129 |
General
Product category | Downlight |
Range of application | Education | Retail |
Dimensions
Dimension H | 155 mm |
Dimension D | 235 mm |
Dimension D2 | 235 mm |
Dimension B1 | 115 mm |
Dimension DE max | 225 mm |
Dimension DE min | 223 mm |
Dimension HE | 160 mm |
Dimension L1 | 255 mm |
Dimension L4 | 275 mm |
Net weight | 0.340 kg |
![Dimension drawing](/cmi24web/cmi24web_exporte/ridi/assets/mak6283.png)
Mounting
Mounting type | Installation |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 | IP40 room side |
Glow-wire test | 650 °C |
Permissible ambient temperature | 0–25 °C |
Housing material | Aluminium |
Cover material | PC clear |
Electrical version
Type of control | DALI |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 44.0 W |
Protection class | I |
Lighting technology
Light guide | Reflector |
Reflector | white |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |
UGR class | ≤ 25 |
Rated luminous flux | 5190 lm |
Luminaire efficiency | 118 lm/W |
![UGR table](/cmi24web/cmi24web_exporte/ridi/assets/ugr-0331464--377--en_GB-08-2023.png)
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
Power supply system | Single battery |
Wiring system | Permanent circuit |
Light duration | 3 h |
Rated luminous flux in emergency mode | 500 lm |
Automatic self-test | Yes |
Battery type | NiCd |
Download Center

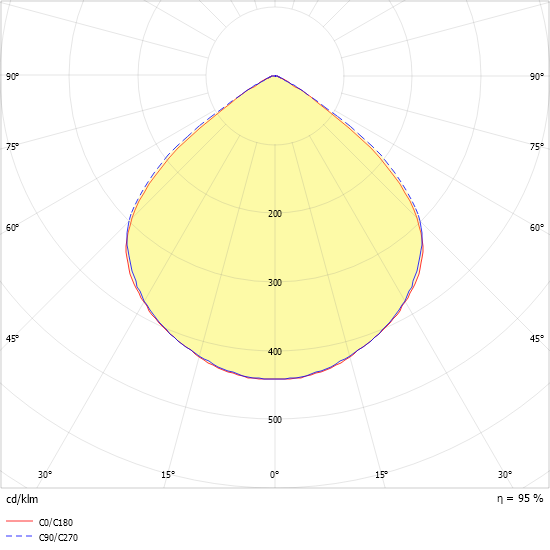

![Lvk](/cmi24web/cmi24web_exporte/ridi/assets/LVK-0331464--377--08-2023.png)
