EDLR-E2 195/2000-840 WS-DALI / 0336638
Product Description
Downlight from the EDLR-E2 product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 1910 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0336638 |
GTIN | 4029299511420 |
General
Product category | Downlight |
Range of application | Education | Retail |
Dimensions
Dimension H | 65 mm |
Dimension D | 195 mm |
Dimension D2 | 195 mm |
Dimension B4 | 70 mm |
Dimension DE max | 185 mm |
Dimension DE min | 181 mm |
Dimension H4 | 31 mm |
Dimension HE | 70 mm |
Dimension L4 | 200 mm |
Net weight | 0.520 kg |
Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 | IP44 room side |
Impact resistance | IK07 |
Glow-wire test | 650 °C |
Housing material | Plastic |
Cover material | PC opal |
Electrical version
Type of control | DALI |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 14.5 W |
Protection class | I |
Lighting technology
Light guide | Opal cover |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |

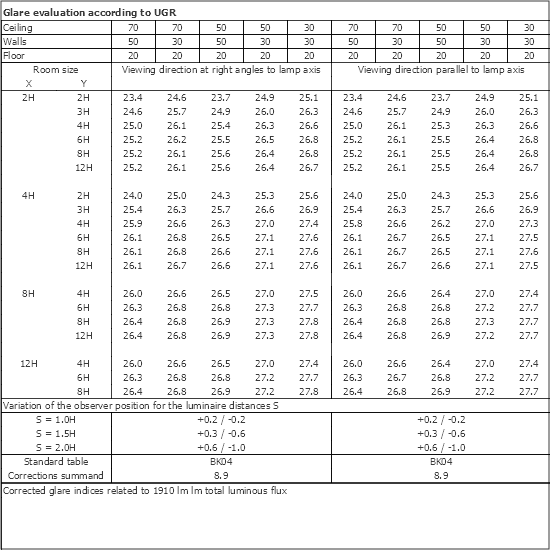

UGR class | > 25 |
Rated luminous flux | 1910 lm |
Luminaire efficiency | 132 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0203021 - ZEL-T-GST18I3 SW | Black, 3 pole Wieland GST18i3 T-distributor |
|
|
0203014 - ZAL-ST-GST18I3-SKII SW/0.3 | Black, 3 pole, Wieland GST18i3 connector 0.3m long, Protection Class II |
|
|
0203035 - ZAL-ST-GST18I3-SKI SW/0.3 | Black, 3-pole, Wieland GST18i3 connector 0.3m long, Protection Class I |
|
|
0209456 - ZADR-EDLR195-DM210 | Cover ring for EDLR195 up to ceiling opening DM 200 |
|
|
0209457 - ZADR-EDLR195-DM230 | Cover ring for EDLR195 up to ceiling opening DM 220 |
|
|
0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
Downlight from the EDLR-E2 product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 1910 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0336638 |
GTIN | 4029299511420 |
General
Product category | Downlight |
Range of application | Education | Retail |
Dimensions
Dimension H | 65 mm |
Dimension D | 195 mm |
Dimension D2 | 195 mm |
Dimension B4 | 70 mm |
Dimension DE max | 185 mm |
Dimension DE min | 181 mm |
Dimension H4 | 31 mm |
Dimension HE | 70 mm |
Dimension L4 | 200 mm |
Net weight | 0.520 kg |
Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 | IP44 room side |
Impact resistance | IK07 |
Glow-wire test | 650 °C |
Housing material | Plastic |
Cover material | PC opal |
Electrical version
Type of control | DALI |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 14.5 W |
Protection class | I |
Lighting technology
Light guide | Opal cover |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |
UGR class | > 25 |
Rated luminous flux | 1910 lm |
Luminaire efficiency | 132 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
