EDLQ 195 ... SM

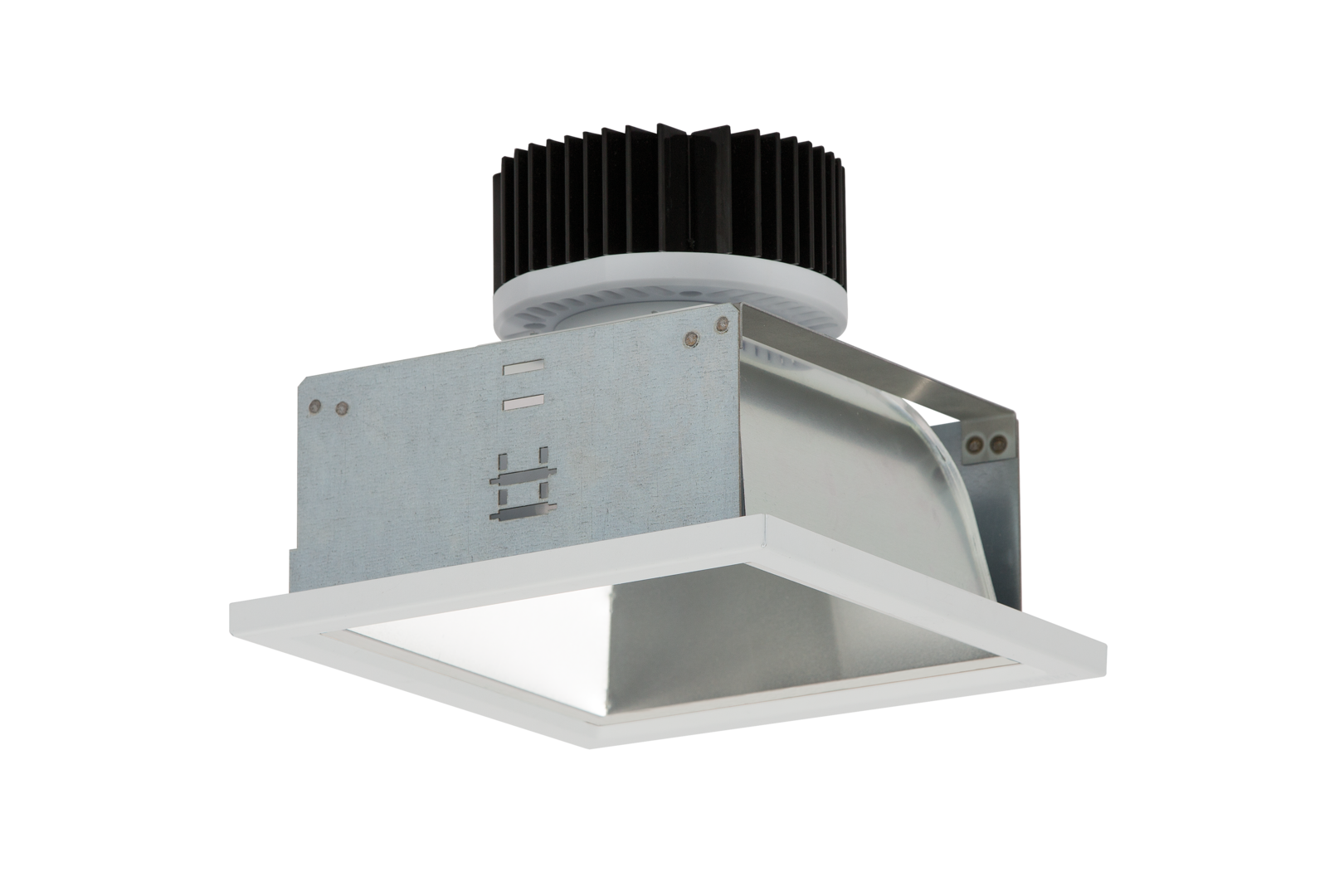

Design: Square recessed downlighter, edge length 195 mm with LED module, comprising of reflector housing and gear tray. Fitted with RIDI LED module, 1100, 2000 and 3000 lumen with passive heat sink. Protection rating on the room side IP 40, ceiling side IP20.
0321374 - EDLQ 195/1100-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0331374 - EDLQ 195/1100-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0321373 - EDLQ 195/1100-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0331373 - EDLQ 195/1100-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0321376 - EDLQ 195/2000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0331376 - EDLQ 195/2000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0321375 - EDLQ 195/2000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0331375 - EDLQ 195/2000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0321378 - EDLQ 195/3000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 3150
Power (W): 23
Efficiency (lm/W): 137
0331378 - EDLQ 195/3000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 3150
Power (W): 23
Efficiency (lm/W): 137
0321377 - EDLQ 195/3000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3150
Power (W): 23
Efficiency (lm/W): 137
0331377 - EDLQ 195/3000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3150
Power (W): 23
Efficiency (lm/W): 137
