EDLQ 150 ... SM-ED.

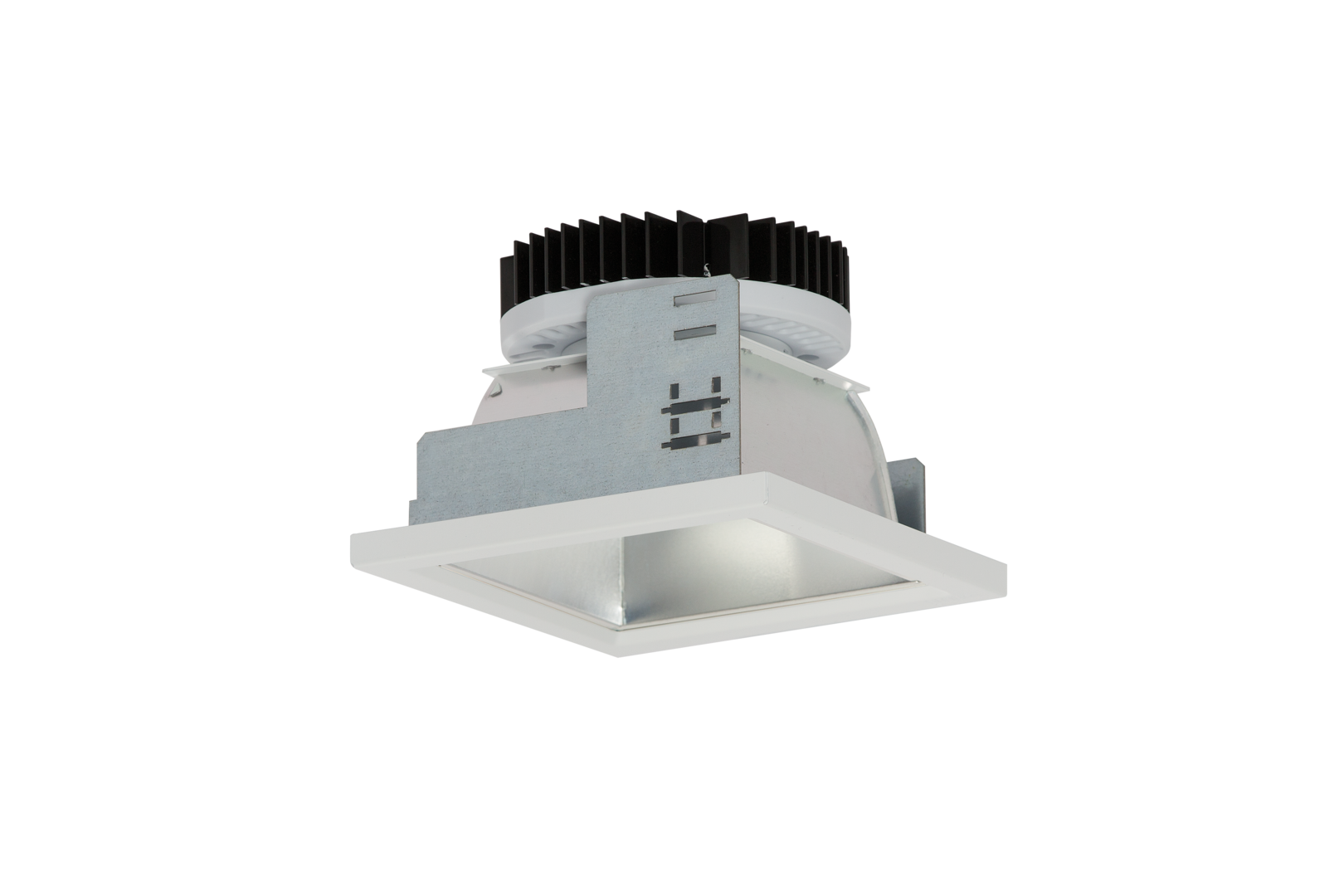

Design: Square recessed downlighter, edge length 150 mm with LED module, comprising of reflector housing and gear tray. Fitted with RIDI LED module, 1100 and 2000 lumen with passive heat sink. Protection rating on the room side IP 40, ceiling side IP20.
0331370//377 - EDLQ 150/1100-830 SM-DA-EDS3
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 1140
Power (W): 8
Efficiency (lm/W): 143
0321370//377 - EDLQ 150/1100-830 SM-EDS3
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 1140
Power (W): 8
Efficiency (lm/W): 143
0331369//377 - EDLQ 150/1100-840 SM-DA-EDS3
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 1140
Power (W): 8
Efficiency (lm/W): 143
0321369//377 - EDLQ 150/1100-840 SM-EDS3
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1140
Power (W): 8
Efficiency (lm/W): 143
0331372//377 - EDLQ 150/2000-830 SM-DA-EDS3
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2040
Power (W): 16
Efficiency (lm/W): 128
0321372//377 - EDLQ 150/2000-830 SM-EDS3
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2040
Power (W): 16
Efficiency (lm/W): 128
0331371//377 - EDLQ 150/2000-840 SM-DA-EDS3
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2040
Power (W): 16
Efficiency (lm/W): 128
0321371//377 - EDLQ 150/2000-840 SM-EDS3
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2040
Power (W): 16
Efficiency (lm/W): 128
