EBRME9-R ... OS

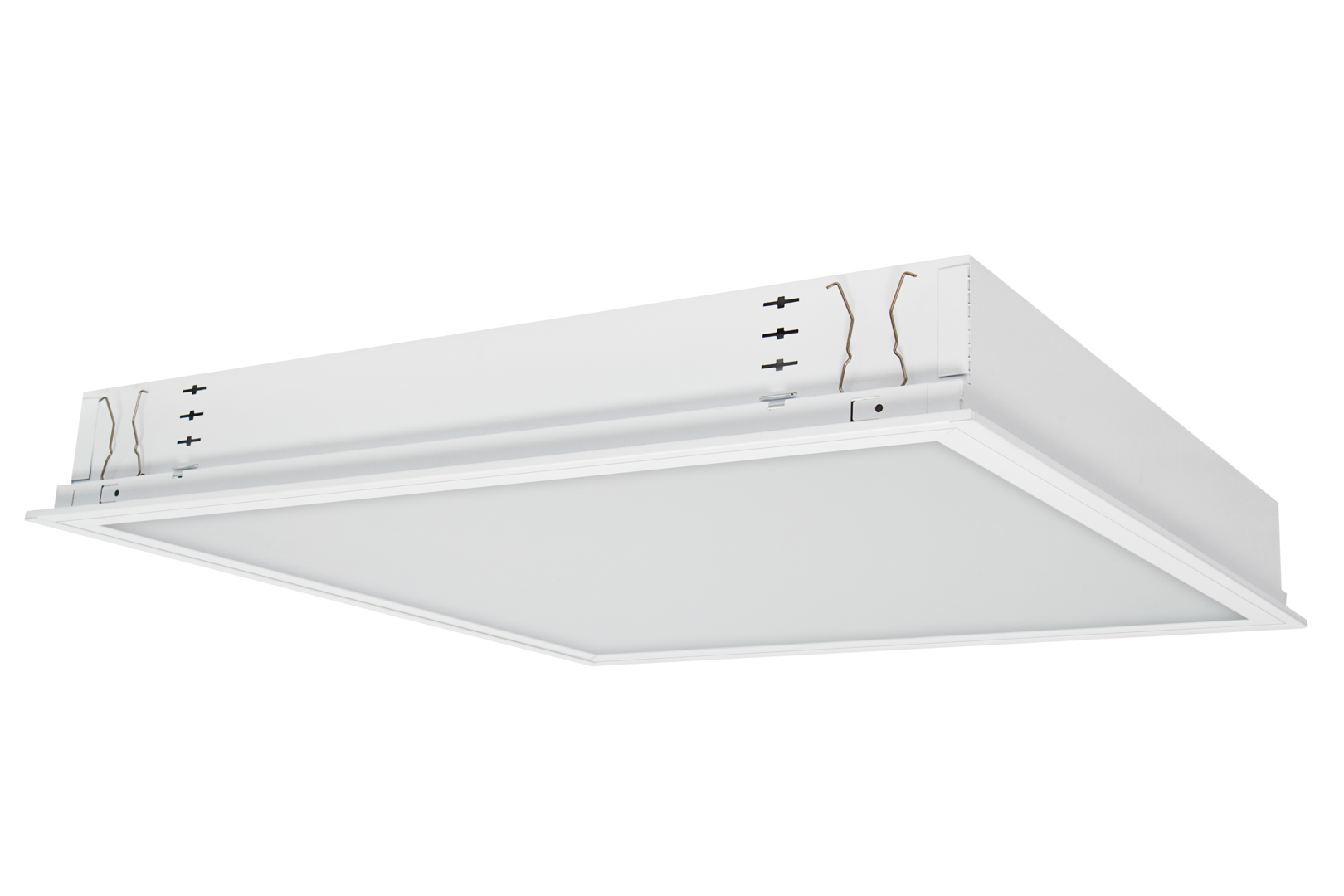

Design: Recessed single LED luminaire for modular ceilings 600 x 600. Luminaire height 95 mm (1-lamp 100 mm). Luminaire housing with 5mm trim in white coated steel (similar to RAL9016). Optical control held in the luminaire housing with spring catches, hinges down on both sides with automatic connection to the earth conductor. Protection class IP20. For LED lamp RIDI RIDI-TUBE (order separately).
0860210 - EBRME9-R1X115/30DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2820
Power (W): 34
Efficiency (lm/W): 83
0850210 - EBRME9-R1X115/30ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2820
Power (W): 34
Efficiency (lm/W): 83
0860212 - EBRME9-R1X145/45DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3980
Power (W): 48
Efficiency (lm/W): 83
0850212 - EBRME9-R1X145/45ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3980
Power (W): 48
Efficiency (lm/W): 83
0860215 - EBRME9-R2X115/30DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 7380
Power (W): 68
Efficiency (lm/W): 109
0850215 - EBRME9-R2X115/30ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7380
Power (W): 68
Efficiency (lm/W): 109
0860217 - EBRME9-R2X145/35DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 7040
Power (W): 64
Efficiency (lm/W): 110
0850217 - EBRME9-R2X145/35ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7040
Power (W): 64
Efficiency (lm/W): 110
0860094 - EBRME9-R4X055/15DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 6360
Power (W): 60
Efficiency (lm/W): 106
0850094 - EBRME9-R4X055/15ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 6360
Power (W): 60
Efficiency (lm/W): 106
