CIRQUA-LI 1X3600-830 SF / 0322089AH
Product Description
Spotlight from the CIRQUA product family. Optical control via Reflector, beam pattern symmetric, medium beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3650 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Mounting via 3-circuit lighting track adapter. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0322089AH |
| GTIN | 4029299566048 |
General
| Product category | Spotlight |
| Range of application | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 158 mm |
| Dimension H | 160 mm |
| Dimension D | 100 mm |
| Net weight | 0.660 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 34.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Reflector |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Super Flood |

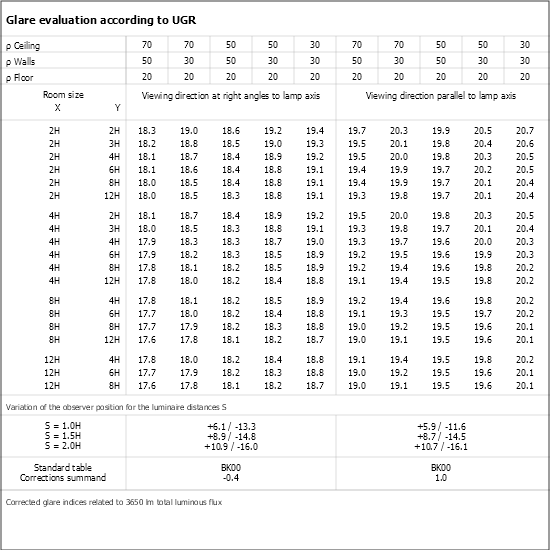

| UGR class | ≤ 19 |
| Rated luminous flux | 3650 lm |
| Luminaire efficiency | 107 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0205558 - ZV-CIRQUA-L-OZ | Oval lens, grooved glass thermally hardened |
|
|
