BLP2-EQ0595NDWS840MPS0400 / 0823026
Product Description
Ceiling light from the BLP product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4200 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 4 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP40. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Lay-in mounting and surface mounting with appropriate accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with OSRAM DALI ACU BT light control. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0823026 |
| GTIN | 4029299929492 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 595 mm |
| Dimension B | 595 mm |
| Dimension H | 32 mm |
| Net weight | 2.100 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| System dimension | 600 x 600 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4200 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 4 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209285 -
ZBS-AR-EQ 595
|
Surface mount for BLP-EQ 595 |
|
|
0208997 -
ZBS-ER-EQ 595
|
Mounting frame for FPL-EQ 595 |
|
|
| 0209570 - ZBS-EKL BLP2 | Installation clamp for recessed luminaire BLP2, 1 set, 4 pieces |
|
|
| 0209395 - ZEL-FPL-EM-BOX-ND | 3 W power supply box for emergency light |
|
|
Ceiling light from the BLP product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4200 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 4 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP40. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Lay-in mounting and surface mounting with appropriate accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with OSRAM DALI ACU BT light control. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0823026 |
| GTIN | 4029299929492 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 595 mm |
| Dimension B | 595 mm |
| Dimension H | 32 mm |
| Net weight | 2.100 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| System dimension | 600 x 600 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4200 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 4 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center

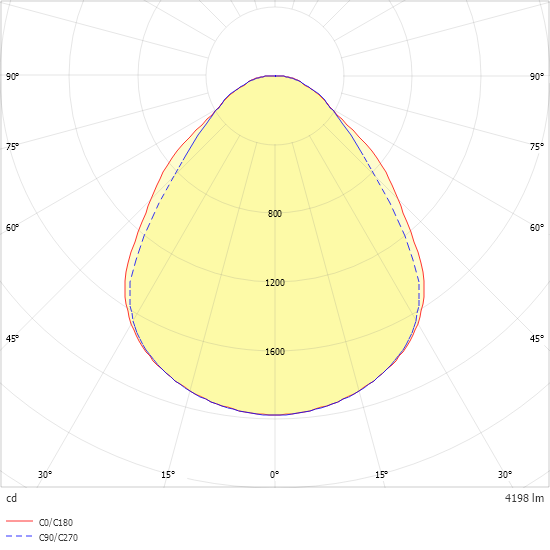

Light distribution curve
