ARKA-P1415DAAG840MPO0650-SEN / 0637941AG
Product Description
Pendant luminaire made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Pendant luminaire rectangular, made of lacquered Steel in silver, similar to RAL 9006, light-bandable, length 1411 mm, width 167 mm , height 48 mm , luminaire weight without accessories 5.400 kg , protection rating IP20 . Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 44.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 5.4 m, Erfassungsfeld 22 m². Integration into Casambi systems possible (Casambi ready).
Order Information
| Item number | 0637941AG |
| GTIN | 4029299025286 |
General
| Product category | Pendant luminaire |
| Range of application | Office | Education |
| Technology | Casambi |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1411 mm |
| Dimension B | 167 mm |
| Dimension H | 48 mm |
| Dimension AB | 1411 mm |
| Dimension AE | 1365 mm |
| Net weight | 5.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver, similar to RAL 9006 |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 6300 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | Ø 5.4 m |
| Angle of coverage | 360° |
| Capture field | 22 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 2000 lx |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0204332AG - ZDBE-AG | Canopy angular RAL9006, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
0209521 -
ARKA-VS
|
Luminaire connector ARKA, 1 piece |
|
|
0209520AG -
ARKA-ED-AG
|
Luminaire end cap ARKA, RAL9006, plastic, 2 pieces |
|
|
0209537 -
ZIDV-ARKA 1415/5/1.5
|
Through wiring 5 x 1.5 mm² for ARKA-A1415/ARKA-P1415, maximum 10 A |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0209542 -
ZNADS-ARKA
|
Loop-through / strain relief and choke plugs |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Pendant luminaire made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Pendant luminaire rectangular, made of lacquered Steel in silver, similar to RAL 9006, light-bandable, length 1411 mm, width 167 mm , height 48 mm , luminaire weight without accessories 5.400 kg , protection rating IP20 . Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 44.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 5.4 m, Erfassungsfeld 22 m². Integration into Casambi systems possible (Casambi ready).
Order Information
| Item number | 0637941AG |
| GTIN | 4029299025286 |
General
| Product category | Pendant luminaire |
| Range of application | Office | Education |
| Technology | Casambi |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1411 mm |
| Dimension B | 167 mm |
| Dimension H | 48 mm |
| Dimension AB | 1411 mm |
| Dimension AE | 1365 mm |
| Net weight | 5.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver, similar to RAL 9006 |
| Farbe_Kurz | si |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover microprismatic |
| Light output | direct/indirect |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 6300 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | Ø 5.4 m |
| Angle of coverage | 360° |
| Capture field | 22 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 2000 lx |
Download Center

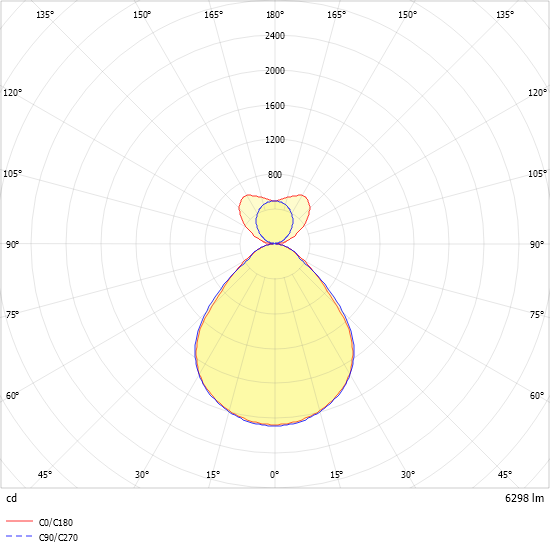

Light distribution curve
