ARKA-A1415DAWS830MPO0500-SEN / 0637930
Product Description

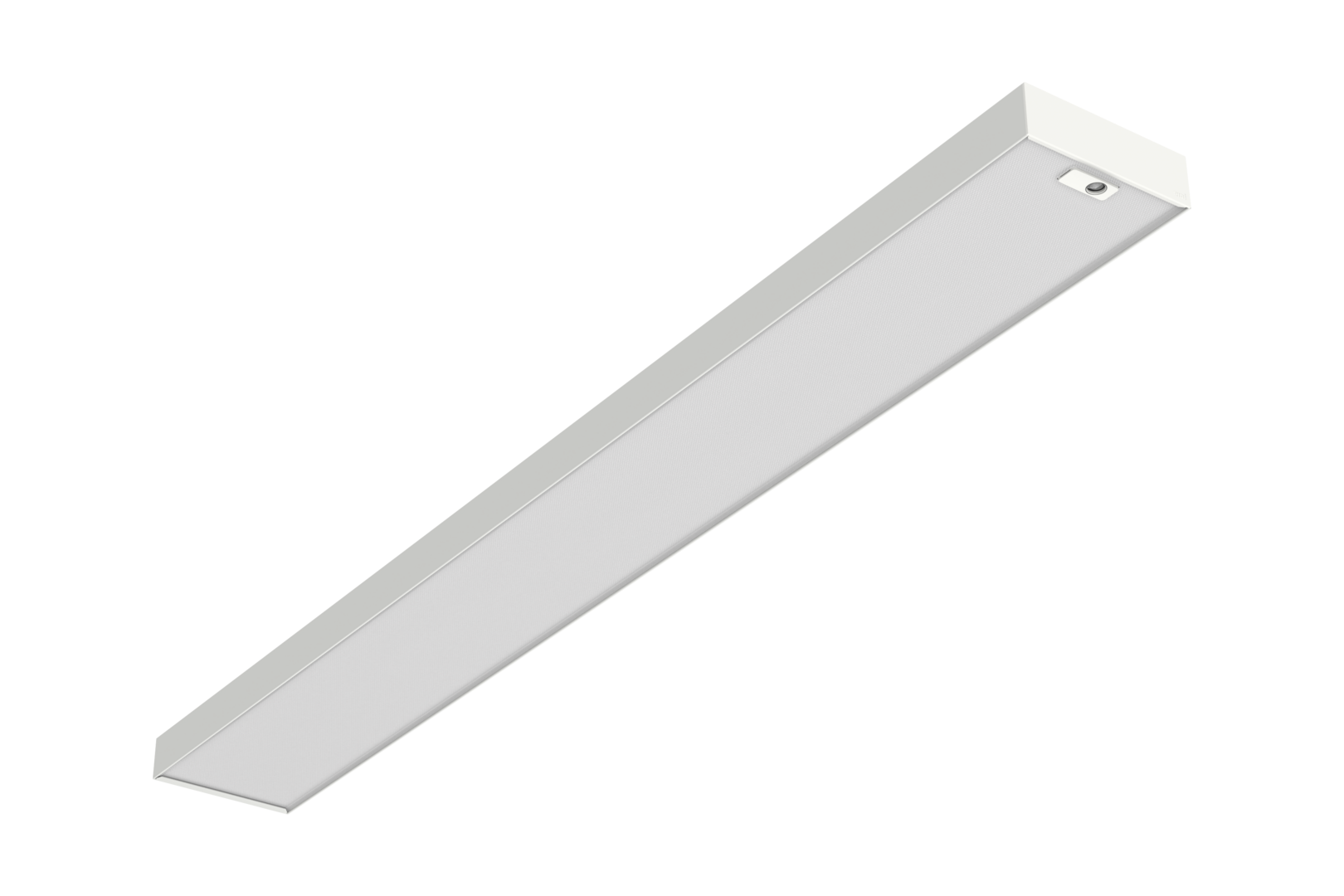

Ceiling light made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Linear LED module, light colour 830, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Ceiling light rectangular, made of lacquered Steel in traffic white, similar to RAL 9016, light-bandable, length 1411 mm, width 167 mm , height 48 mm , luminaire weight without accessories 5.200 kg , protection rating IP20 . Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 37.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 5.4 m, Erfassungsfeld 22 m². Integration into Casambi systems possible (Casambi ready).
Order Information
Item number | 0637930 |
GTIN | 4029299666366 |
General
Product category | Ceiling light |
Range of application | Office | Education |
Technology | Casambi |
Sensor | Movement |
Guarantee | 5 years |
Dimensions
Dimension L | 1411 mm |
Dimension B | 167 mm |
Dimension H | 48 mm |
Dimension A1 | 1230 mm |
Dimension AB | 1411 mm |
Net weight | 5.200 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 5 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 |
Impact resistance | IK03 |
Glow-wire test | 650 °C |
Permissible ambient temperature | 0–40 °C |
Housing material | Steel |
Surface treatment of housing | powder-coated |
Cover material | PMMA clear |
Electrical version
Type of control | DALI-2 | Casambi |
Nominal voltage | 220–240 V, 50–60 Hz |
Rated power | 37.0 W |
Protection class | I |
Lighting technology
Light guide | Cover microprismatic |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |
UGR class | ≤ 19 |
Rated luminous flux | 4760 lm |
Luminaire efficiency | 129 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 100.000 h |
Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
Transverse detection range | Ø 5.4 m |
Angle of coverage | 360° |
Capture field | 22 m² |
Optimum mounting height | 3 m |
Maximum mounting height | 4 m |
Brightness setpoint | 10 - 2000 lx |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209521 - ARKA-VS | Luminaire connector ARKA, 1 piece |
|
|
0209537 - ZIDV-ARKA 1415/5/1.5 | Through wiring 5 x 1.5 mm² for ARKA-A1415/ARKA-P1415, maximum 10 A |
|
|
0204003 - ZRO RAHMENÖFFNER | Tool for easy opening of the light frame |
|
|
0209520 - ARKA-ED-WS | White plastic end cap for ARKA surface-mounted and pendant luminaires, set of 2 pieces |
|
|
Ceiling light made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Linear LED module, light colour 830, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Ceiling light rectangular, made of lacquered Steel in traffic white, similar to RAL 9016, light-bandable, length 1411 mm, width 167 mm , height 48 mm , luminaire weight without accessories 5.200 kg , protection rating IP20 . Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 37.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 5.4 m, Erfassungsfeld 22 m². Integration into Casambi systems possible (Casambi ready).
Order Information
Item number | 0637930 |
GTIN | 4029299666366 |
General
Product category | Ceiling light |
Range of application | Office | Education |
Technology | Casambi |
Sensor | Movement |
Guarantee | 5 years |
Dimensions
Dimension L | 1411 mm |
Dimension B | 167 mm |
Dimension H | 48 mm |
Dimension A1 | 1230 mm |
Dimension AB | 1411 mm |
Net weight | 5.200 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 5 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP20 |
Impact resistance | IK03 |
Glow-wire test | 650 °C |
Permissible ambient temperature | 0–40 °C |
Housing material | Steel |
Surface treatment of housing | powder-coated |
Cover material | PMMA clear |
Electrical version
Type of control | DALI-2 | Casambi |
Nominal voltage | 220–240 V, 50–60 Hz |
Rated power | 37.0 W |
Protection class | I |
Lighting technology
Light guide | Cover microprismatic |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |
UGR class | ≤ 19 |
Rated luminous flux | 4760 lm |
Luminaire efficiency | 129 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 100.000 h |
Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
Transverse detection range | Ø 5.4 m |
Angle of coverage | 360° |
Capture field | 22 m² |
Optimum mounting height | 3 m |
Maximum mounting height | 4 m |
Brightness setpoint | 10 - 2000 lx |
Download Center
Light distribution curve
Approvals:
Attributes:
White plastic end cap for ARKA surface-mounted and pendant luminaires, set of 2 pieces
