APCON BLE-HYBRIDBOX-64RSM / 0209559
Product Description
Individually addressed Bluetooth Low Energy / DALI hybrid box for connecting up to 64 dimmable DALI luminaire/addresses Device Type 6 (DT6) or DALI Tunable White Device Type 8 (DT8). Industry. Plastic, light grey, similar to RAL 7035. Design for recessed ceiling or surface mounting. 14x break-out cable entries M16/20 and 4x double membrane connectors M20 included. Bluetooth Low Energy 2.4-2.483 GHz. The connected luminaires are recognised and displayed as individual addresses via the Casambi app and can be freely grouped and configured. The luminaires can be controlled individually or in groups via other Bluetooth Low Energy control components such as daylight and motion sensors, push-buttons, push-button couplers and via the Casambi app interface. Daily, weekly and annual schedules for controlling the connected luminaires can be configured. Depending on the luminaire version, connected Tunable White luminaires can be controlled directly to the selected colour temperature between 2700-6500 K. In addition, a circadian daylight sequence (Human Centric Lighting - HCL) can be individually configured within this range, which the connected luminaires follow together.
Order Information
| Item number | 0209559 |
| GTIN | 4029299924381 |
General
| Product category | Lighting accessories |
| Technology | Casambi |

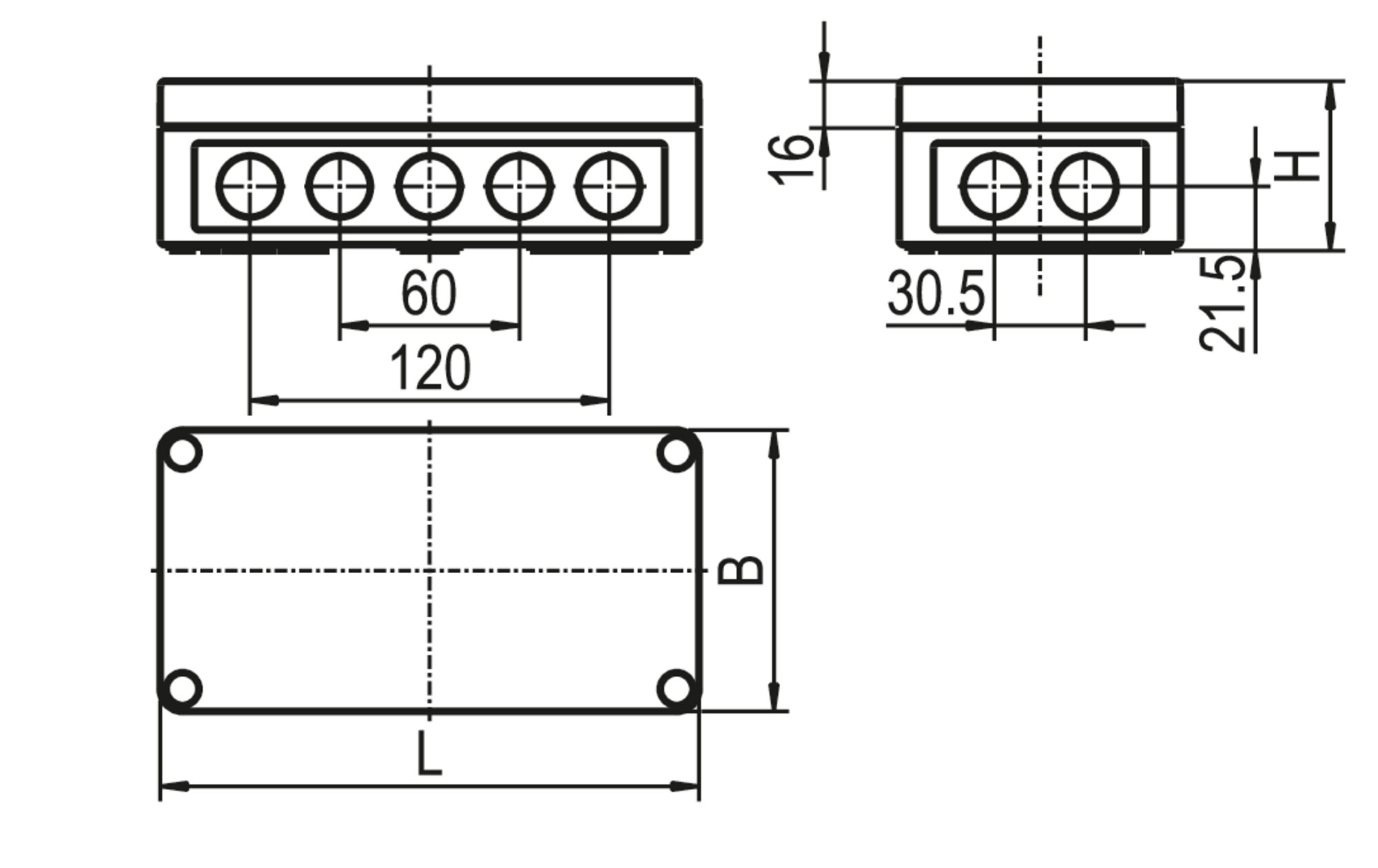

Dimensions
| Dimension L | 180 mm |
| Dimension B | 94 mm |
| Dimension H | 57 mm |
| Net weight | 0.280 kg |
Mounting
| Mounting type | Installation | Attachment |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | light grey, similar to RAL 7035 |
| Protection class | IP66 |
| Housing material | Plastic |
Electrical version
| Protection class | I |
Download Center
