APCON BLE SEN PD4 DA2 CAS-SC / 0209505
Product Description
Bluetooth Low Energy / BLE light and presence sensor. Can optionally be used as a presence sensor and/or as a light sensor in a Casambi network. Plastic, white, similar to RAL 9010. Suitable for recessed ceiling mounting. Max. Mounting height 10 m. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 24 m, Erfassungsfeld 452 m². A maximum of 32 connected DALI luminaires can be controlled directly via the integrated DALI-2 interface. Configurable via Casambi app.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0209505 |
| GTIN | 4029299608564 |
General
| Product category | Light and motion sensor |
| Technology | Casambi |
| Sensor | Light | Movement |
Dimensions
| Dimension H | 95 mm |
| Dimension D | 106 mm |
| Net weight | 0.150 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | Screw terminal |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white, similar to RAL 9010 |
| Protection class | IP20 |
| Permissible ambient temperature | -25–55 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 230–230 V, 50–50 Hz |
| Power consumption | 0.5 W |
Sensor technology
| Transverse detection range | Ø 24 m |
| Frontal detection range | Ø 8 m |
| Presence detection range | Ø 6.4 m |
| Angle of coverage | 360° |
| Capture field | 452 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 10 m |
| Brightness setpoint | 1 - 4000 lx |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209519 -

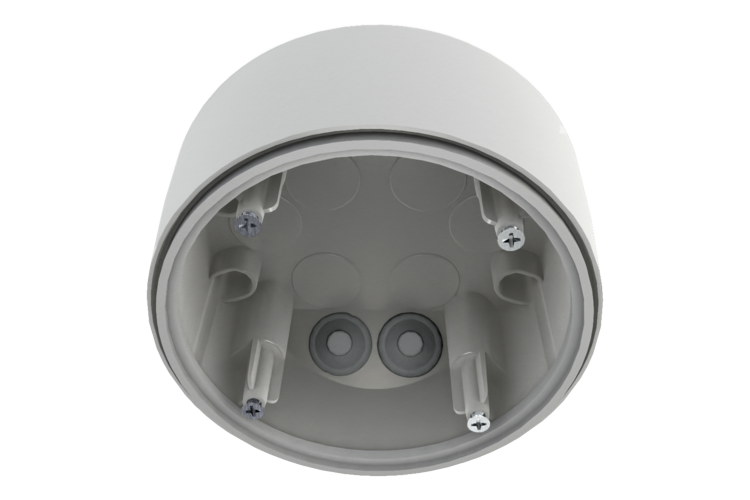

APCON PD4MKIT-CM
|
