ALBA R68E DASW830M0090 / 0332252
Product Description
Downlight from the ALBA product family. Optical control via Lens, beam pattern symmetric, medium beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 900 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, black, similar to RAL 9005, protection rating IP20 IP44 room side. Quick, toolless assembly of the complete light unit using integrated self-retaining centreboard springs. Driver and luminaire on secondary side with pre-assembled fast-plug connection. Pro-Fast connector block on the primary side with extra large terminal compartment and double-pole plug-in terminals for simple through wiring (switchable 3-pole, DALI 5-core) and integrated strain relief, suitable for 2.5mm² each. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0332252 |
GTIN | 4029299022247 |
General
Product category | Downlight |
Range of application | Education | Office | Retail |
Guarantee | 5 years |
Dimensions
Dimension H | 67 mm |
Dimension D | 72 mm |
Dimension B4 | 58 mm |
Dimension DE max | 70 mm |
Dimension DE min | 68 mm |
Dimension H4 | 23 mm |
Dimension HE | 125 mm |
Dimension L4 | 192 mm |
Dimension S | 1 mm |
Dimension S max | 25 mm |
Net weight | 0.340 kg |
Mounting
Mounting type | Installation |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 5 |
Conductor cross-section | 1.5–2.5 mm² |
Housing
System dimension | D 68 |
Colour | black, similar to RAL 9005 |
Farbe_Kurz | sw |
Protection class | IP20 | IP44 room side |
Glow-wire test | 850 °C |
Permissible ambient temperature | -20–35 °C |
Housing material | Plastic |
Surface treatment of housing | varnished |
Cover material | PMMA structured |
Electrical version
Type of control | DALI |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 8.2 W |
Protection class | II |
Lighting technology
Light guide | Lens |
Reflector | black |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | Medium |

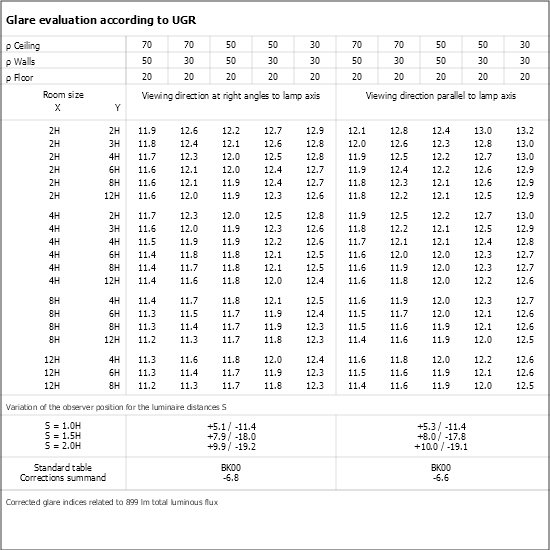

UGR class | ≤ 16 |
Rated luminous flux | 900 lm |
Luminaire efficiency | 110 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 100.000 h |
Rated life L80B10 (tq = 25 °C) | 70.000 h |
Download Center
Approvals:
