ALBA R100E DAHG830M0200 / 0332300
Product Description
Downlight from the ALBA product family. Optical control via Lens, beam pattern symmetric, medium beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 1860 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, similar to RAL 9010, protection rating IP20 IP44 room side. Quick, toolless assembly of the complete light unit using integrated self-retaining centreboard springs. Driver and luminaire on secondary side with pre-assembled fast-plug connection. Pro-Fast connector block on the primary side with extra large terminal compartment and double-pole plug-in terminals for simple through wiring (switchable 3-pole, DALI 5-core) and integrated strain relief, suitable for 2.5mm² each. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0332300 |
| GTIN | 4029299022711 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 84 mm |
| Dimension D | 112 mm |
| Dimension B4 | 58 mm |
| Dimension DE max | 105 mm |
| Dimension DE min | 100 mm |
| Dimension H4 | 23 mm |
| Dimension HE | 89 mm |
| Dimension L4 | 192 mm |
| Dimension S | 1 mm |
| Dimension S max | 25 mm |
| Net weight | 0.430 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| System dimension | D 100 |
| Colour | white, similar to RAL 9010 |
| Farbe_Kurz | ws |
| Protection class | IP20 | IP44 room side |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Plastic |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 14.7 W |
| Protection class | II |
Lighting technology
| Light guide | Lens |
| Reflector | high gloss |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | Medium |

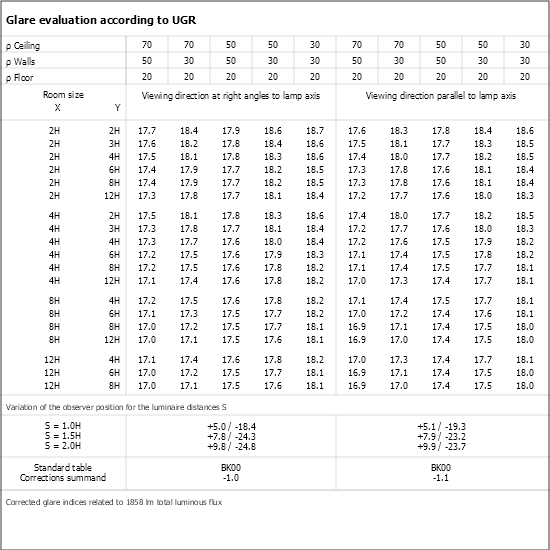

| UGR class | ≤ 19 |
| Rated luminous flux | 1860 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 68.000 h |
