ADLR 410/6000-8TW OS-DALI / 0336764
Product Description
Downlight from the ADLR product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4910 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Direct ceiling mounting or with accessories for suspending from wire pendants. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336764 |
| GTIN | 4029299544268 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 68 mm |
| Dimension D | 410 mm |
| Dimension D2 | 410 mm |
| Net weight | 4.570 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 41.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4910 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0201239 -
ZUSP SEILPENDEL UNIV. 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
0208087 -
ZSP-1P-ABD 1.5M
|
Wire pendant for ABD 1.5m, 1 pc |
|
|
Downlight from the ADLR product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4910 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Direct ceiling mounting or with accessories for suspending from wire pendants. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336764 |
| GTIN | 4029299544268 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 68 mm |
| Dimension D | 410 mm |
| Dimension D2 | 410 mm |
| Net weight | 4.570 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 41.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4910 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

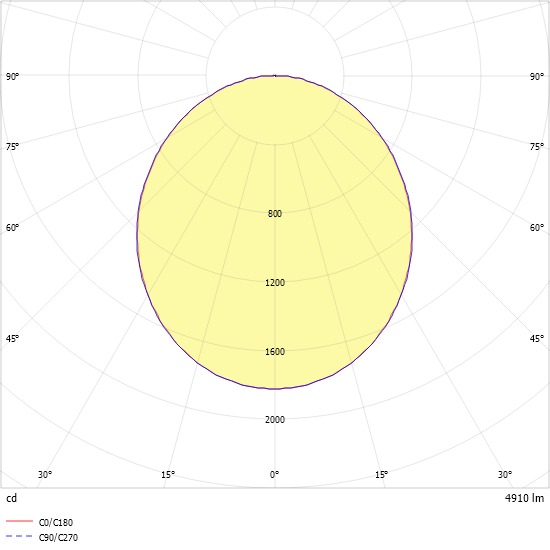

Light distribution curve
