ADLQ 235 ... SM

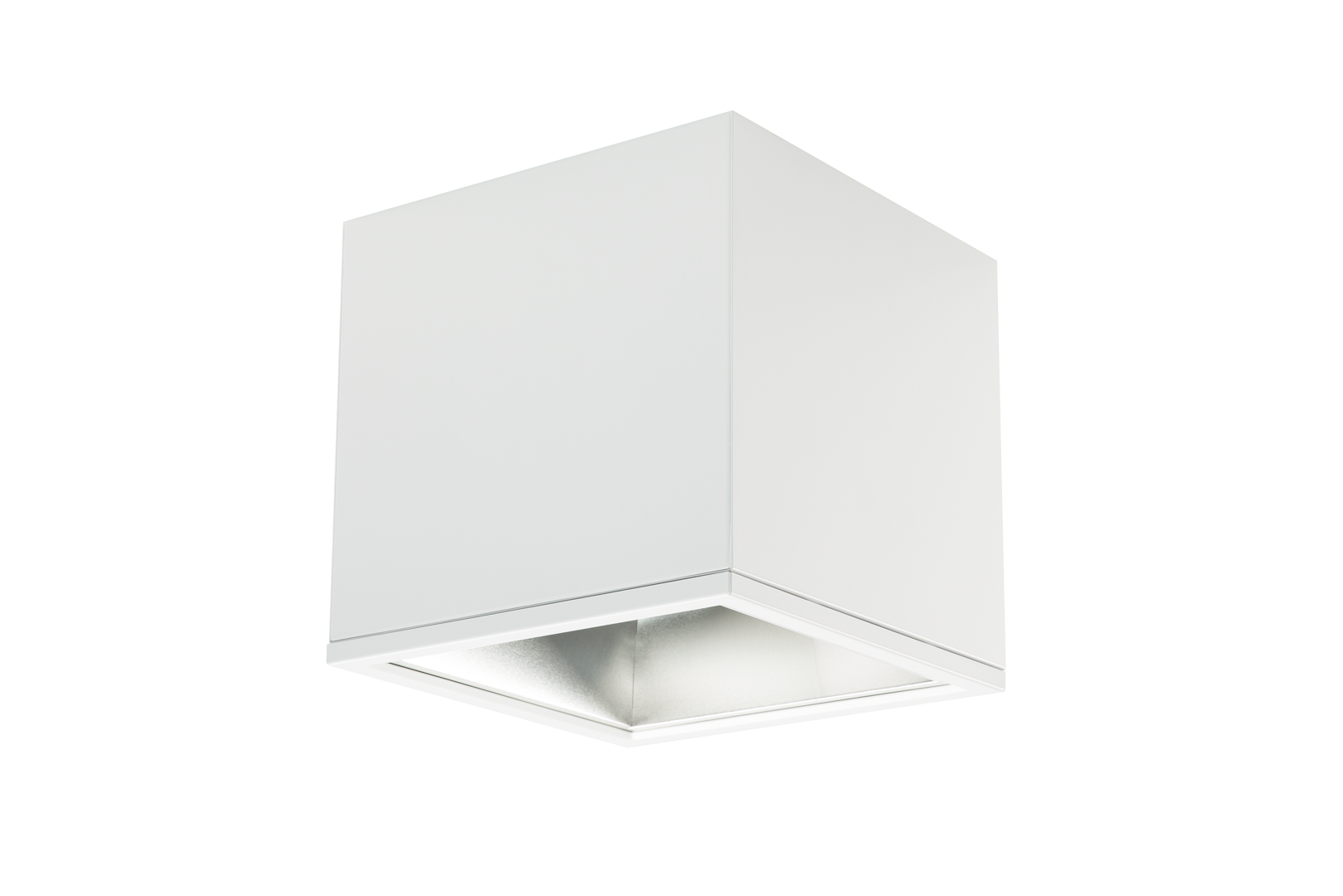

Design: Square surface-mounted downlighter with edge length 235 mm for ceiling and pendant mounting, with RIDI LED module. Luminaire body in steel, powder coated white (similar to RAL9016). Stable housing frame in galvanised steel with integrated fixture for tool-less mounting of accessories (Decorative frames and trims, order separately). Protection rating IP 40. Fitted with RIDI LED module, 2000 and 3000 lumen with passive heat sink. Function module in white polycarbonate for mounting the reflector with bayonet catch. Diffuser in transparent, internally satinised polycarbonate to protect the LEDs, clipped into the function module (opal diffuser available on request).
0321935 - ADLQ 235/2000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0331935 - ADLQ 235/2000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0321936 - ADLQ 235/2000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0331936 - ADLQ 235/2000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0321937 - ADLQ 235/3000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0331937 - ADLQ 235/3000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0321938 - ADLQ 235/3000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0331938 - ADLQ 235/3000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
