ADLQ 195 ... SM

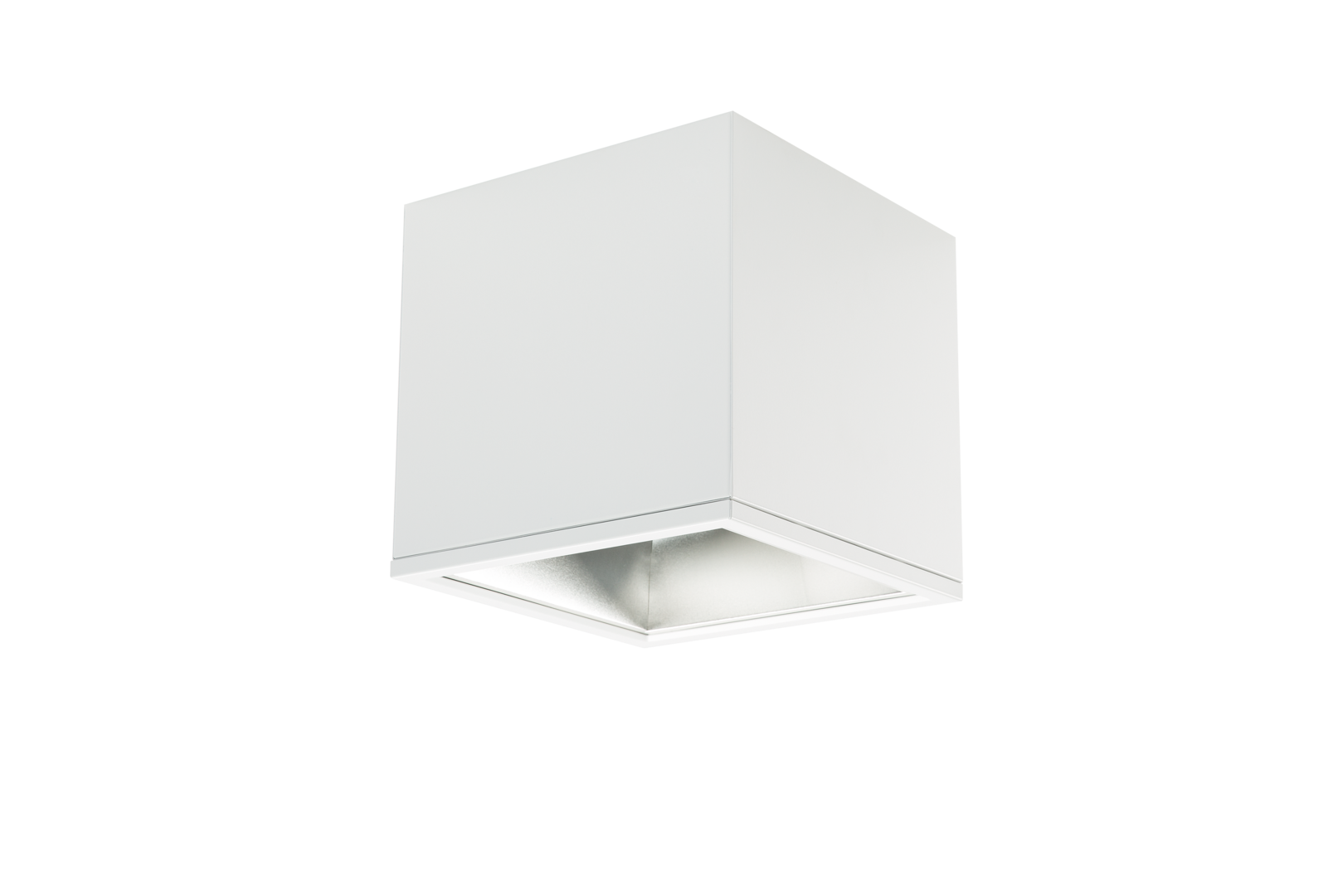

Design: Square surface-mounted downlighter with edge length 195 mm for ceiling and pendant mounting, with RIDI LED module. Luminaire body in steel, powder coated white (similar to RAL9016). Stable housing frame in galvanised steel with integrated fixture for tool-less mounting of accessories (decorative frames and trims, order separately). Protection rating IP 40. Fitted with RIDI LED module, 1100 and 2000 lumen with passive heat sink. Function module in white polycarbonate for mounting the reflector with bayonet catch. Diffuser in transparent, internally satinised polycarbonate to protect the LEDs, clipped into the function module (opal diffuser available on request).
0321931 - ADLQ 195/1100-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0331931 - ADLQ 195/1100-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0321932 - ADLQ 195/1100-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0331932 - ADLQ 195/1100-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 1130
Power (W): 8
Efficiency (lm/W): 141
0321933 - ADLQ 195/2000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0331933 - ADLQ 195/2000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0321934 - ADLQ 195/2000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
0331934 - ADLQ 195/2000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2000
Power (W): 16
Efficiency (lm/W): 125
