ABRFB-R1X145/45DA-SM / 0660004
Product Description
Ceiling light from the ABRFB product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamp R-TUBE not included, Exchange by end customer. The luminaire generates a rated luminous flux of 5880 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single or continuous luminaire mounting. Ceiling mounting with enclosed accessories or pendant mounting with corresponding fixing kits (see accessories). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0660004 |
| GTIN | 4029299421286 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 131 mm |
| Dimension H | 60 mm |
| Dimension A1 | 1200 mm |
| Dimension AB | 1480 mm |
| Dimension AE | 1400 mm |
| Net weight | 3.900 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

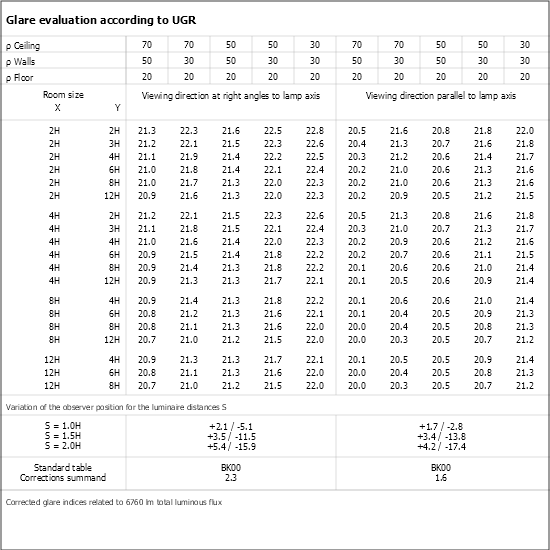

| UGR class | ≤ 22 |
| Rated luminous flux | 5880 lm |
| Luminaire efficiency | 123 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0207784 - AG-ALE/ABRF 135/149 | Counterweight for ALE/ABRF 135/149 |
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
0215933 -
UKNA-ABRFB
|
Univ. junction adapter for ABRFB, white, TW |
|
|
0203581 -
ABRFBE LEUCHTENSTIRNTEIL
|
End cap for ABRFB, ABRFBI, white, sheet steel, 1 pc |
|
|
|
0203584 -
ABRFBKE LEUCHTENSTIRNTEIL
|
End cap for ABRFB, ABRFBI, white, plastic, 1 pc |
|
|
0203585 -
ABRFBKN
|
Junction point for ABRFB/ABRFBI |
|
|
0203586 -
ABRFBKNE KNOTENSTIRNTEIL
|
Cover plate for junction, 1 pc |
|
|
0201619 -
ZSPH
|
Wire pendant, domed canopy, white, wire clamp 1.5m, 1 pc |
|
|
|
0205027 -
ZSPHS MIT SCHRAUBKLEMME 1.5M
|
Wire pendant, domed canopy, white, man. clamp 1.5m, 1 pc |
|
|
0203537 -
ZSPTS SEILPENDEL TRAPEZ 1.5M
|
Y' wire pendant w. ceiling fixture, manual clamp, 1.5m, 1 pc |
|
|
0202926 -
ZSPTSE BALDACHIN+SEILP. 1.5M
|
Wire pendant rectangular canopy, white, wire clamp, 1.5m |
|
|
0202927 -
ZSPTSH BALDACHIN+SEILP. 1.5M
|
Wire pendant domed canopy, white, wire clamp, 1.5m |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0203253 -
UKN
|
Universal junction, D=120, H=60, white 1 pc |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
|
0215942 -
UKNS 3.0M
|
Wire pendant w. ceiling fixing and wire clamp 3.0m, 1 pc |
|
|
|
0215943 -
UKNS 5.0M
|
Wire pendant w. ceiling fixing and wire clamp 5.0m, 1 pc |
|
|
0202867 -
ZSPE
|
Wire pendant, rect. canopy white, wire clamp, 1.5m, 1 pc |
|
|
0202879 -
UKNSE SEILP.KLEMME+BALD1.5M
|
Wire pendant w. rect. canopy, white, 1.5m, 1 pc |
|
|
0208105 -
UKND
|
Ceiling fixing kit for UKN |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0210959 -
UKNSB SEILP.KLEMME+BALD. 1.5M
|
Wire pendant w. domed canopy, white, wire clamp, 1.5m, 1 pc |
|
|
0205018 -
ZSPS SCHRAUBKLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp man., 1.5m, 1set=2pc |
|
|
|
0205017 -
ZSP /AUTOM.-KLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp, 1.5m, 1 set = 2pc |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206603LD - R-TUBE-G2 145-830M0450 LD | 1449 | 3000 K | matt |
|
|
| 1206598LD - R-TUBE-G2 145-840M0450 LD | 1449 | 4000 K | matt |
|
|
| 1206782LD - R-TUBE-G2 145-865M0450 LD | 1449 | 6500 K | matt |
|
|
| 1206579LD - R-TUBE-G2 145-830M0350 LD | 1449 | 3000 K | matt |
|
|
| 1204993LD - R-TUBE-G2 145-840M0350 LD | 1449 | 4000 K | matt |
|
|
| 1206725LD - R-TUBE-G2 145-865M0350 LD | 1449 | 6500 K | matt |
|
|
| 0206988LD - R-TUBE 145-830M0550 LD | 1449 | 3000 K | matt |
|
|
| 0206991LD - R-TUBE 145-840M0550 LD | 1449 | 4000 K | matt |
|
|
| 0206994LD - R-TUBE 145-865M0550 LD | 1449 | 6500 K | matt |
|
|
| 0206997LD - R-TUBE 145-830M0650 LD | 1449 | 3000 K | matt |
|
|
| 0206173LD - R-TUBE 145-840M0700 LD | 1449 | 4000 K | matt |
|
|
| 0206176LD - R-TUBE 145-865M0700 LD | 1449 | 6500 K | matt |
|
|
