ABRBI-RT2X145/25ND-SM-SET / 0650632//673683
Product Description
Pendant luminaire from the ABRB product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp R-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 6120 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant luminaire for single and continuous luminaire mounting. Electrical connection from the outside on the top of the luminaire. Through wiring runs inside the luminaire. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650632//673683 |
| GTIN | 4029299489934 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 215 mm |
| Dimension H | 60 mm |
| Dimension AB | 1480 mm |
| Dimension AE | 1400 mm |
| Net weight | 4.210 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 50.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 6120 lm |
| Luminaire efficiency | 122 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0202950 -
ABRBE 2 ENDDECKEL 2 LAMPIG
|
End cap for ABRB 2.., white, 1 pc |
|
|
| 0202962 - ZADV .35/49/3/1.5 DURCHVERDR. | External through wiring T16-.35/49 W, 3x1.5mm², max.10A |
|
|
| 0202968 - ZADV .58/5/1.5 DURCHVERDR. | External through wiring T26-.58 W, 5x1.5mm², max.10A |
|
|
0202952 -
ABRBV 2 VERBINDER 2 LAMPIG
|
Luminaire connector for ABRB 2.., white, 1 pc |
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
0202927 -
ZSPTSH BALDACHIN+SEILP. 1.5M
|
Wire pendant domed canopy, white, wire clamp, 1.5m |
|
|
0202926 -
ZSPTSE BALDACHIN+SEILP. 1.5M
|
Wire pendant rectangular canopy, white, wire clamp, 1.5m |
|
|
0205018 -
ZSPS SCHRAUBKLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp man., 1.5m, 1set=2pc |
|
|
|
0205017 -
ZSP /AUTOM.-KLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp, 1.5m, 1 set = 2pc |
|
|
0205027 -
ZSPHS MIT SCHRAUBKLEMME 1.5M
|
Wire pendant, domed canopy, white, man. clamp 1.5m, 1 pc |
|
|
|
0201619 -
ZSPH
|
Wire pendant, domed canopy, white, wire clamp 1.5m, 1 pc |
|
|
0202867 -
ZSPE
|
Wire pendant, rect. canopy white, wire clamp, 1.5m, 1 pc |
|
|
0203537 -
ZSPTS SEILPENDEL TRAPEZ 1.5M
|
Y' wire pendant w. ceiling fixture, manual clamp, 1.5m, 1 pc |
|
|
Pendant luminaire from the ABRB product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp R-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 6120 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant luminaire for single and continuous luminaire mounting. Electrical connection from the outside on the top of the luminaire. Through wiring runs inside the luminaire. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650632//673683 |
| GTIN | 4029299489934 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 215 mm |
| Dimension H | 60 mm |
| Dimension AB | 1480 mm |
| Dimension AE | 1400 mm |
| Net weight | 4.210 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 50.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 6120 lm |
| Luminaire efficiency | 122 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

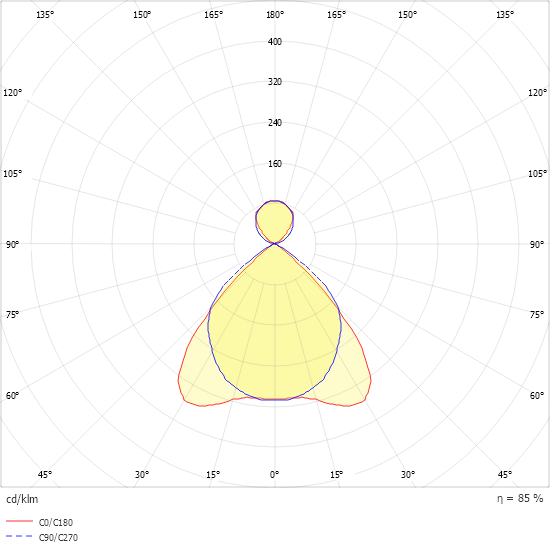

Light distribution curve
